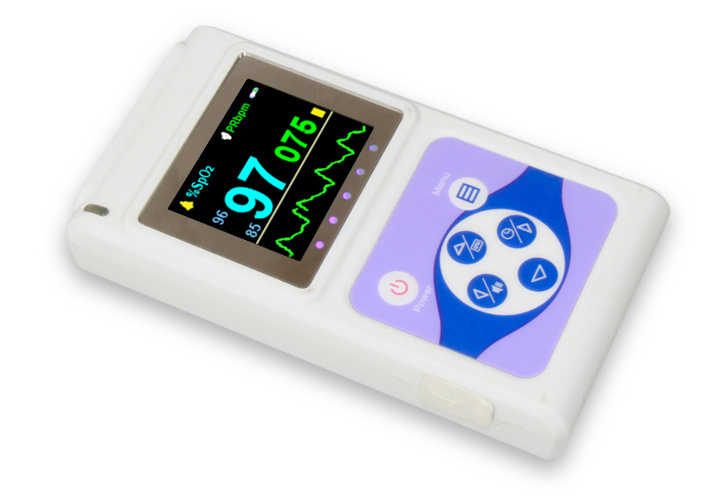

MS-20D Handheld Pulse Oximeter
Feature:
1 Routine Check Mode and Continuous Monitoring Mode
2 Sync with PC based Sofrware (WinXP and WinVista)
3 Display:1.8" Color TFT
4 Resolution:160x96
5 Display Mode:Display Direction adjustable
6 Indicator:Power indicator,Alarm sound, Pluse tone
7 Interface:Socket for connecting SPO2 sensors and Socket for communication cables
8 Power Supply: 2 AA Size Batteries DC 3V, <60MA
9 Record:Data can be recorded up to 24 hours
10 Alarm:Ajustable High and Low limits
Technical specifications:
1 Safety
2 Meet the requirment of IEC60601 series
3 Type of Protection:Class II with internal electirc power supply
4 Degree of Protection:BF
5 Dimention and Weight
6 Dimention:92(W)x82(H)x22(D)mm
7 Weight:136g(with battery)
8 Operation Environment:
9 Temperature:0ºC~ +40ºC
10 Humidity:15% ~ 95%
11 Storage Environment:
12 Temperature:-20ºC~ +60ºC
13 Humidity:10% ~ 95%
14 Patient Range
15 Neonate,Pediatric and Adult
SPO2:
1 Measurement Range:0 ~ 100%
2 Resolution:1%
3 Accuracy:±2%(70%~100%, Adult/Pediatric, non- motion)
±3%(70%~100%, Neonate, non-motion)
0% ~ 69% unspecified
4Alarm Range:0% ~ 100%
5Refreshing Rate:1s
Pulse Rate:
1. Measurement Range:25 ~ 250 bpm
2. Resolution:1bpm
3. Accuracy:±3 bpm (non-motion)
4. Alarm Range:25 ~ 250 bmp
5. Refreshing Rate:1s
