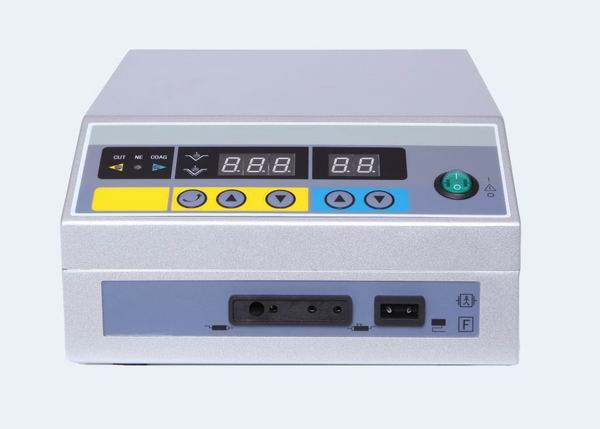

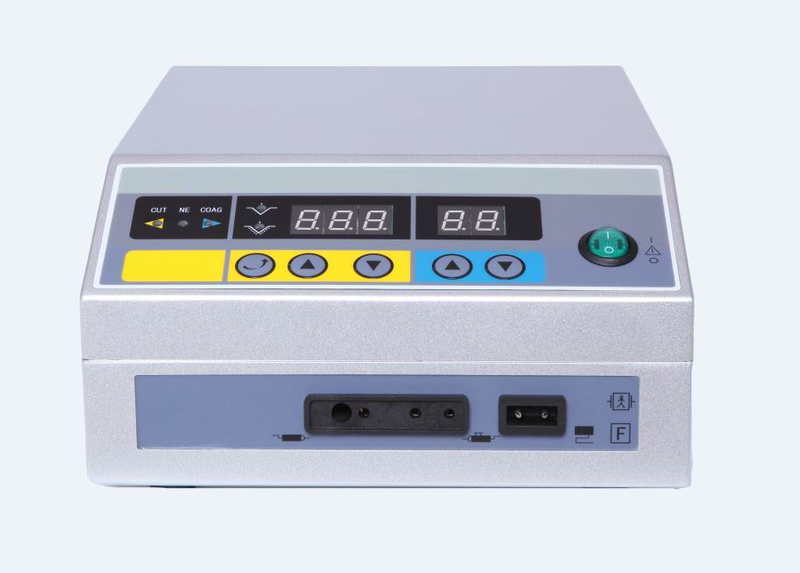

MS-D200(200W) Electrosurgical Unit
Intelligent Device System
The intuitive design and user-friendly set-up of the Electrosurgical Generator9Diathermy) for us in the modern operating room,it features both Monopolar and Bipolar Functions to satisfy all hte surgeries demands with safety,flexibility,reliabiligy and convenience.
REM(Return Electrode Monitoring
Return electrode contact quality monitoring system(REM).The REM system continually monitors patient impedance levels and deactiveates the generator if a fault in the patient/return electrode contact is detected,which minmize the danger of burning incidents.
Compatible with Other Equipments
Optimum Smoke Evacuation System
Low Frequency Leakage:
Normal Polarity,Intact Chassis Ground:<10μA
Normal Polarity,Ground Open: <50μA
Reverse Polarity,Ground Open: <50μA
Sink Current,140 Applied,All Inputs: <50μA
Main Frequency:512KHz
Power Supply:100-240V/50-60Hz
Max Output Power(W)
Mono Pure Cut:200W
Mono Blend 1 :150W
Mono Contact Coag: 99W
Bipolar Coag: 50W
Application:
General Surgery,Dermatology,Vasular Surgery,
Obsterrics and Gynecology
ORL/ENT,Minimal Invasive Surgery(MSI)
Cerebral Surgery,Neurosurgery,Orthopedics&Plastic Surgery
