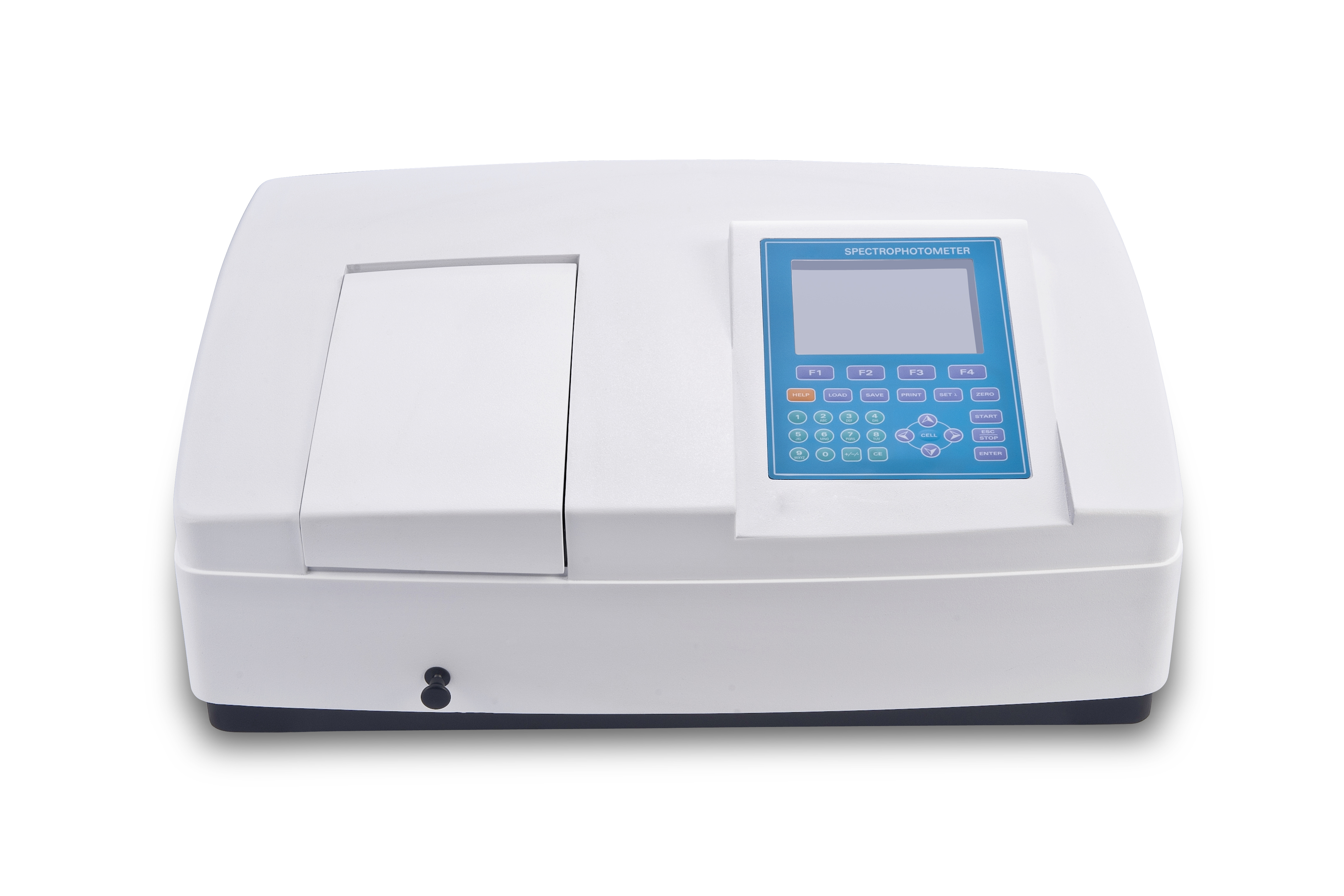

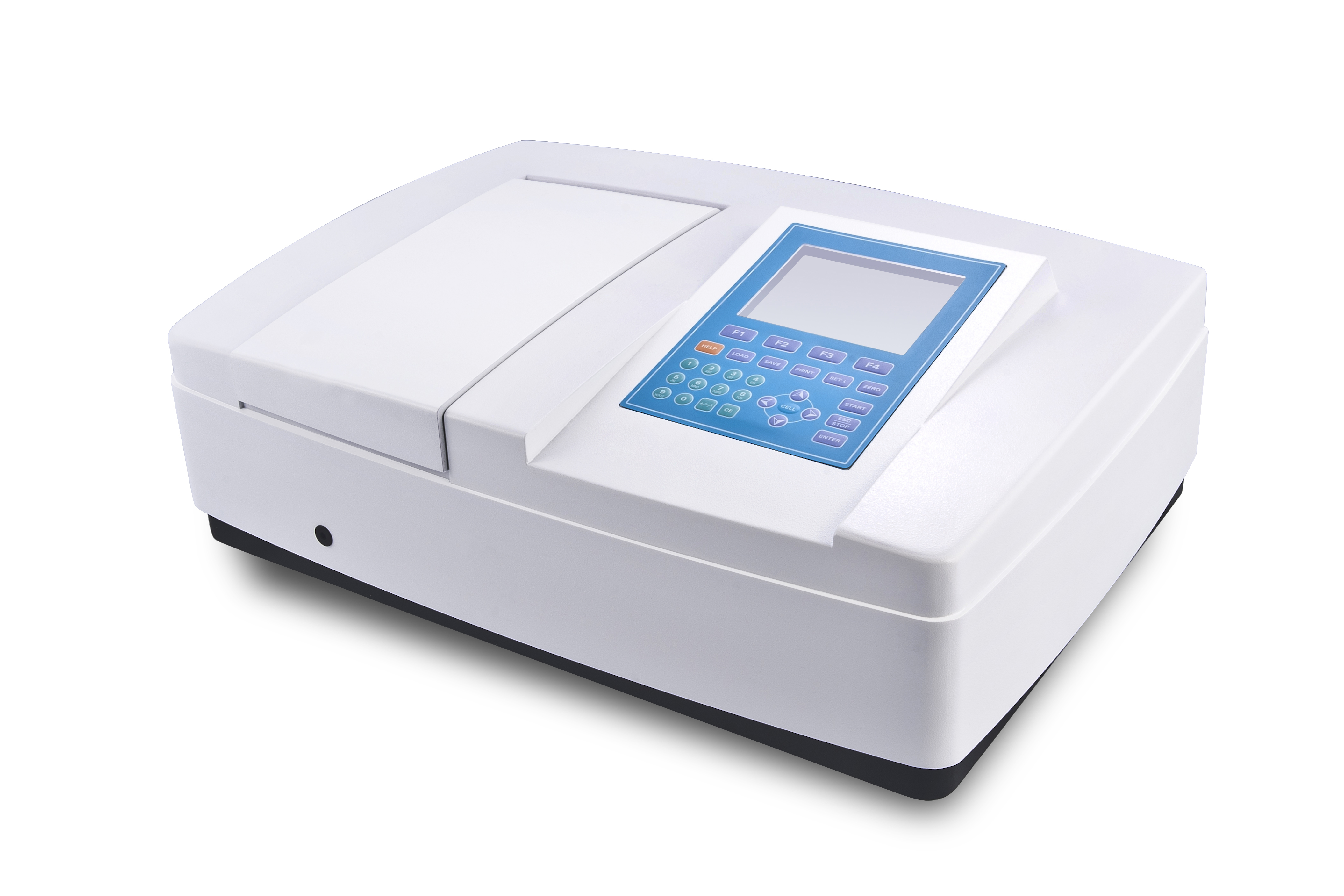

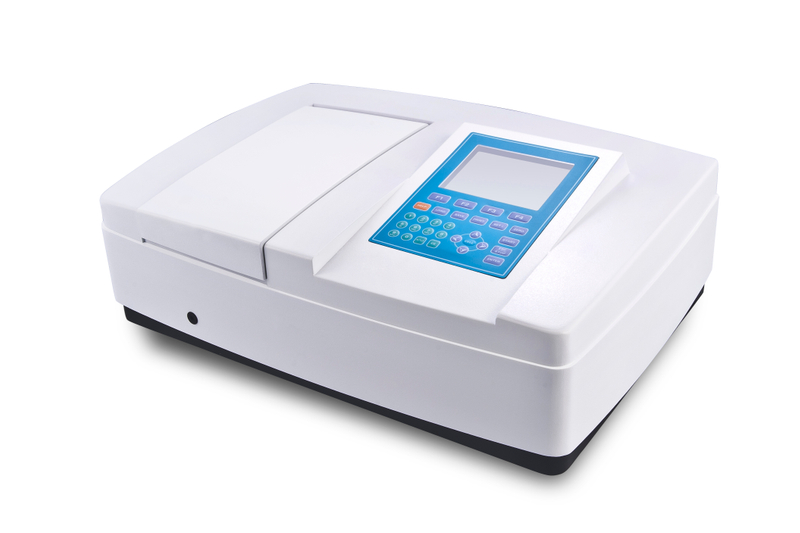

MS-UV8100 series are large scanning UV visible ectrophotometers which combine best features of single beam spectrophotometers.
[Features]
Long light path design
MS-UV8100 series’ unique 520mm long light path design greatly improved resolution and the
bandwidth can reach 0.5nm.
Multi functions on spectrophotometer
Multi functions operated directly on the spectrophotometer and display the test results’ curve and data:wavelength scanning,
standard curve, kinetics, multi wavelength scanning, DNA/RNA/Protein test.
16mm optical base
MS-UV8100 series use a rigid 16mm die-cast aluminum base as its optical mount to ensure
instrument stability and reliability.
Perfect calibration system
All baseline, wavelength, dark current can be calibrated automatically to keep good runningconditions.
6 inches LCD display
MS-UV8100 series have a 6 inches LCD display to show results and curves directly on thescreen.
Data output
MS-UV8100 series are equipped with USB port to connect with a PC, and the software comes standard with the instruments.
Powerful software functions
Multi functions like spectrum scanning, standard curves, kinetics, multi wavelength scanning, DNA/RNA Protein testing can
be operated directly on PC.
[Technical Specification]
Model | MS-UV8100 |
Wavelength Range | 190-1100nm |
Bandwidth | 1.8nm | 1.0nm | 0.5, 1.0, 2.0, 4.0nm |
Wavelength Accuracy | ±0.1nm @656.1nm, ±0.3nm @ all |
Wavelength Repeatability | 0.1nm |
Photometric Accuracy | ±0.2%T(0-100%T) |
Photometric Repeatability | ≤0.1%T(0-100%T) |
Photometric Range | -0.3-3A 0-200%T 0-9999C |
Stability | ± 0.002A/h @ 500nm |
Baseline Flatness | ± 0.0008A/h |
Noise | ± 0.001A |
Stray Light | ≤0.05%T @ 220nm,360nm |
Data Output Port | USB |
Printer Port | Parallel Port |
Display | 320*240 Dots LCD |
Lamps | Tungsten Lamp & Deuterium Lamp |
Detector | Silicon Photodiode |
Power Requirements | AC 220V/50Hz or AC 110V/60Hz |
Dimension | 625*430*206mm |
Weight | 28KG/28KG/30KG |
