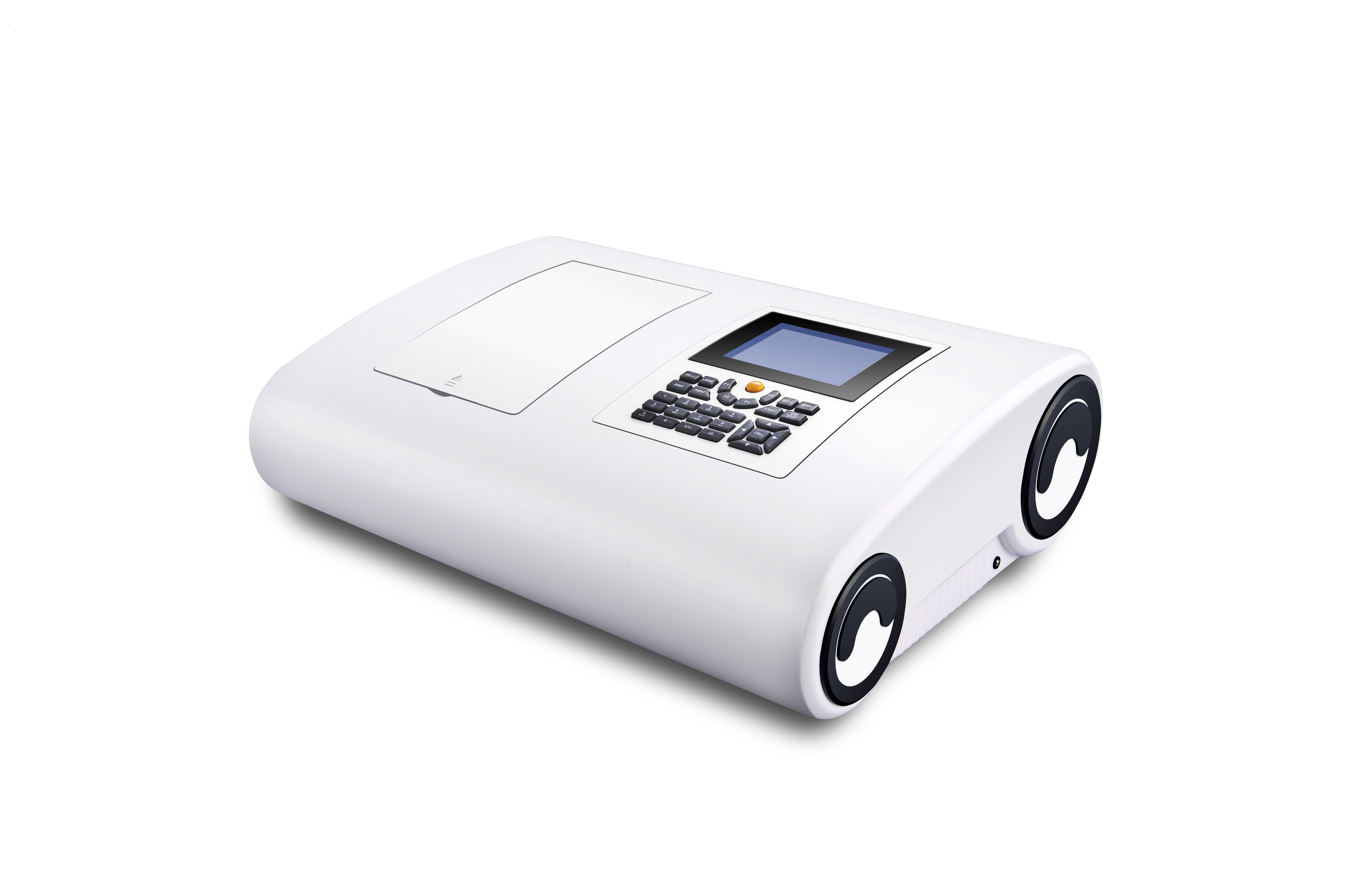

MS-UV8900 series are wide screen double beam spectrophotometer.They adopt doublebeam long light path design to ensure the stability and accuracy; They are the best choice of high quality spectrophotometers.
[Features]
Light path design: double beam
MS-UV8900 series double light path design can prevent circuit fluctuation and stray light to
ensure stability of the instrument.
Powerful software functions
Multi functions like spectrum scanning, standard curve, kinetics, multi wavelength scanning,
DNA/Protein testing can be operated directly on the pc.
Long path light design
MS-UV8900 series’ unique 520mm long light path design greatly improved resolution and the
bandwidth can reach 0.5nm.
Multi functions on Spectrophotometer
Multi functions operated directly on the spectrophotometer and display the test results’ curve and data: wavelength scanning, standard curve, kinetics, multi wavelength scanning,
DNA/Ptotein test.
16mm optical base
MS-UV8900 series use a rigid 16mm diecast aluminim base as their optical mount to ensure the stability and reliability.
Perfect calibration system
All baseline, wavelength ,dark current can be calibrated automatically to keep good running
conditions.
6 inches LCD display
MS-UV8900 series have a 6 inches LCD display to show results and curves directly on the
screen.
Data output
MS-UV8900 series are equipped with USB port to connect with a PC, the softwore comes
standard with the instrument.
[Technical Specification]
Model | MS-UV8900 |
Optical System | Double Beam, 1200 Lines/mm Grating) |
Wavelength Range | 190-1100nm |
Bandwidth | 1.8nm | 1.0nm | 0.5, 1.0, 2.0, 4.0 nm |
Wavelength Accuracy | ±0.1nm (D2 656.1nm), ±0.3nm @all range |
Wavelength Repeatability | 0.1nm |
Photometric Accuracy | ±0.2%T(0-100%T) |
Photometric Repeatability | ≤0.1%T(0-100%T) |
Photometric Range | -0.3-3A 0-200%T 0-9999C |
Stability | ± 0.0003A/h @ 500nm |
Baseline Flatness | ± 0.001A/h |
Noise | ± 0.0005A |
Stray Light | ≤0.03%T @ 220nm, 360nm |
Data Output Port | USB |
Printer Port | Parallel Port |
Display | 320*240 Dots LCD |
Lamps | Tungsten Lamp & Deuterium Lamp |
Detector | Silicon Photodiode |
Power Requirements | AC 220V/50Hz or AC 110V/60Hz |
Dimension | 625*430*206mm |
Weight | 32kg/32kg/34kg |
[Standard Accessories]
Item | Description | Quantity | Unit |
1 | Spectrophotometer | 1 | set |
2 | 1cm Glass cuvette | 4 | pcs |
3 | Power cord | 1 | pcs |
4 | User’s Manual | 1 | pcs |
5 | 1 cm quartz cuvette | 2 | pcs |
6 | Dust Cover | 1 | pcs |
7 | PC software | 1 | pcs |
