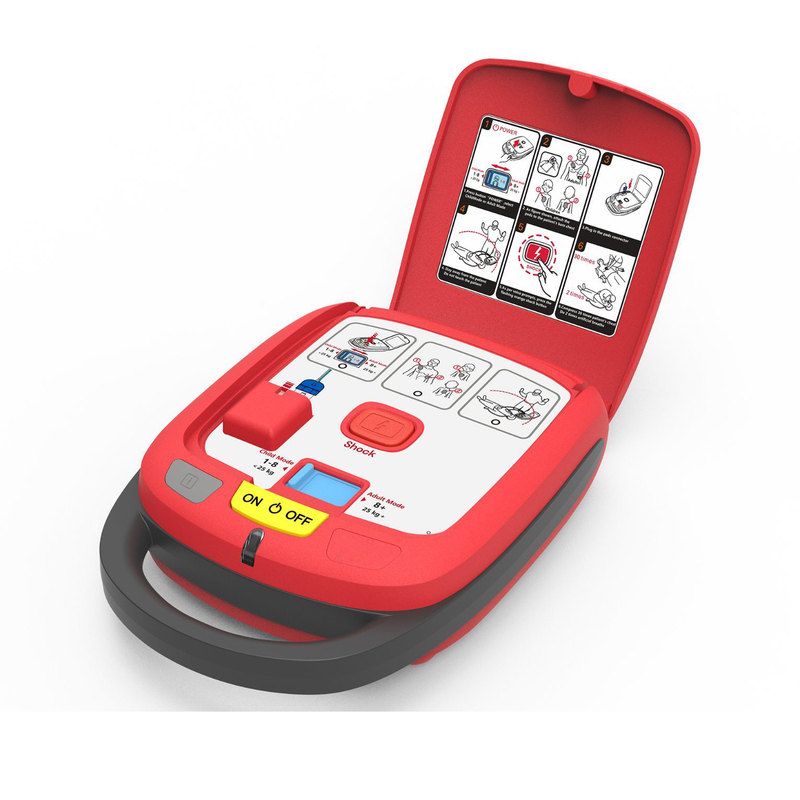

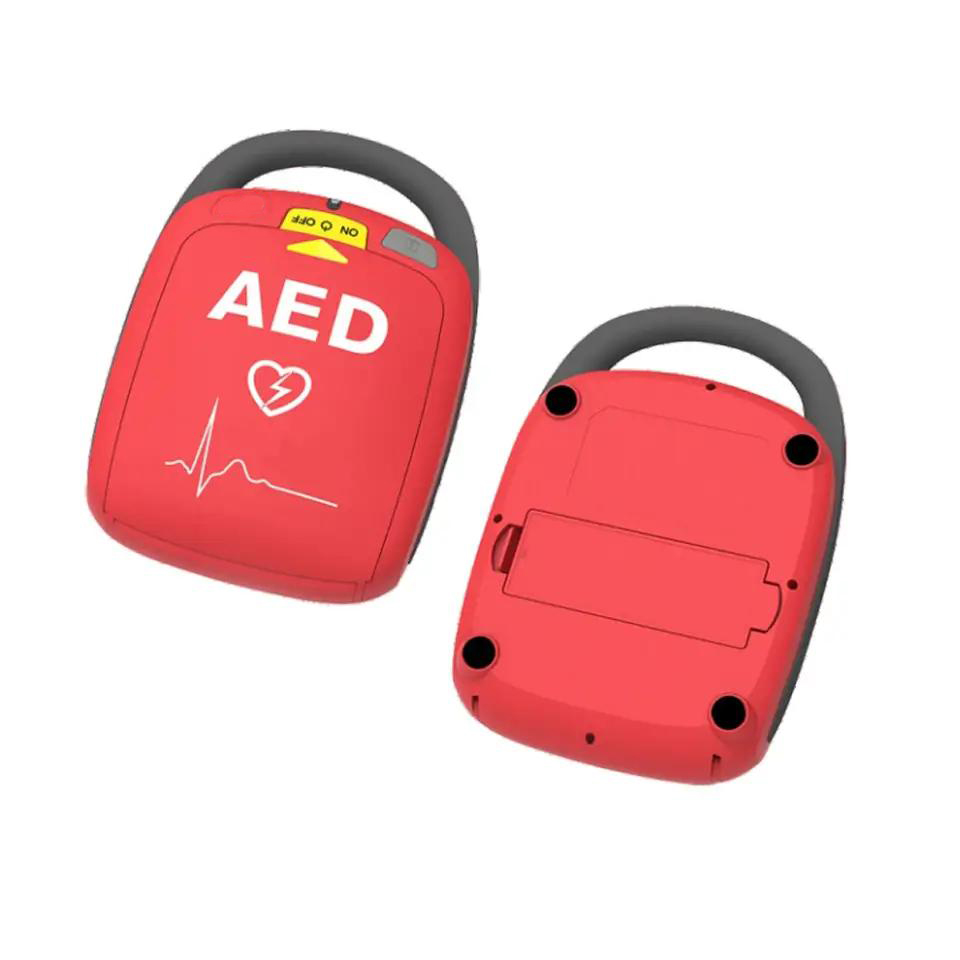

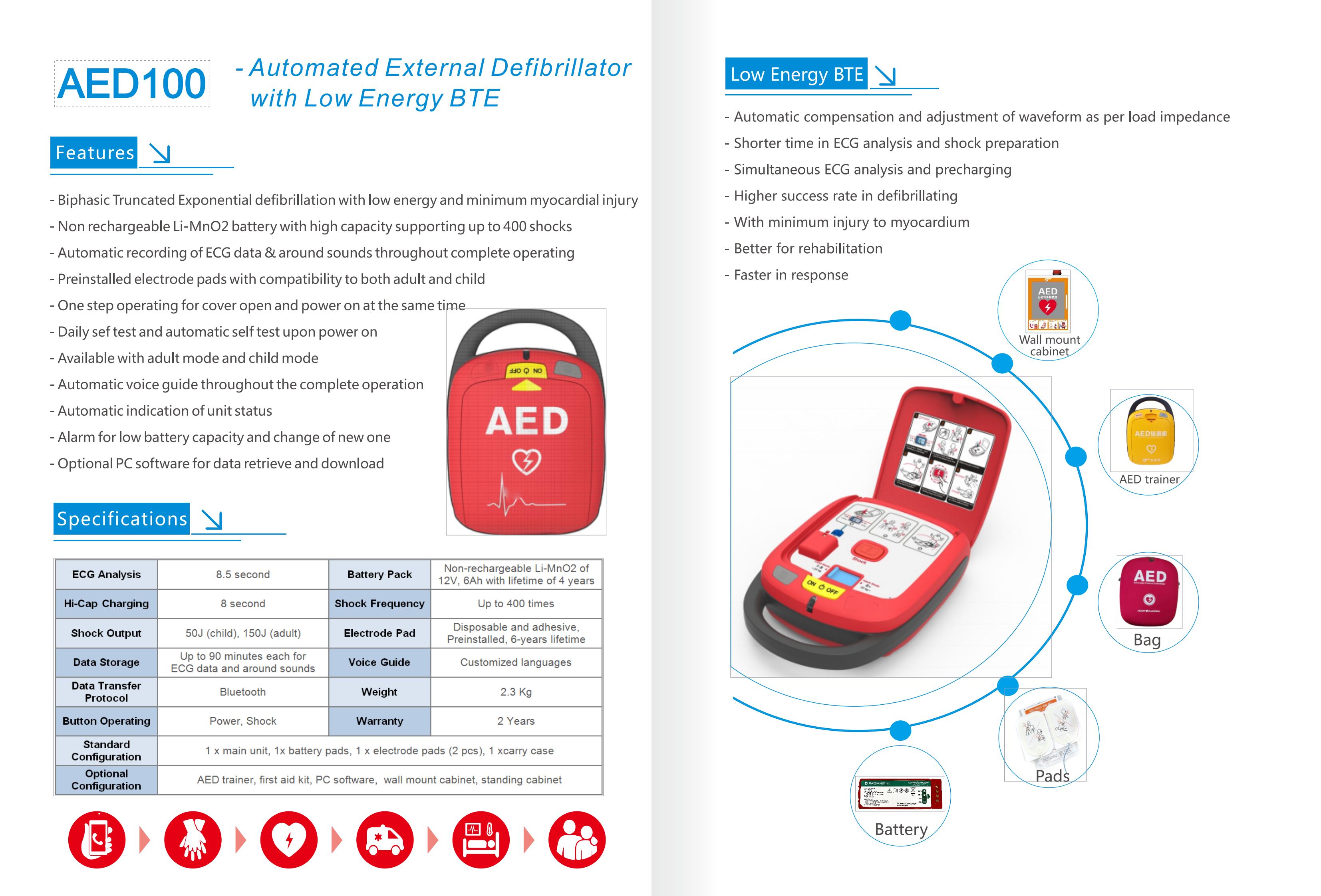

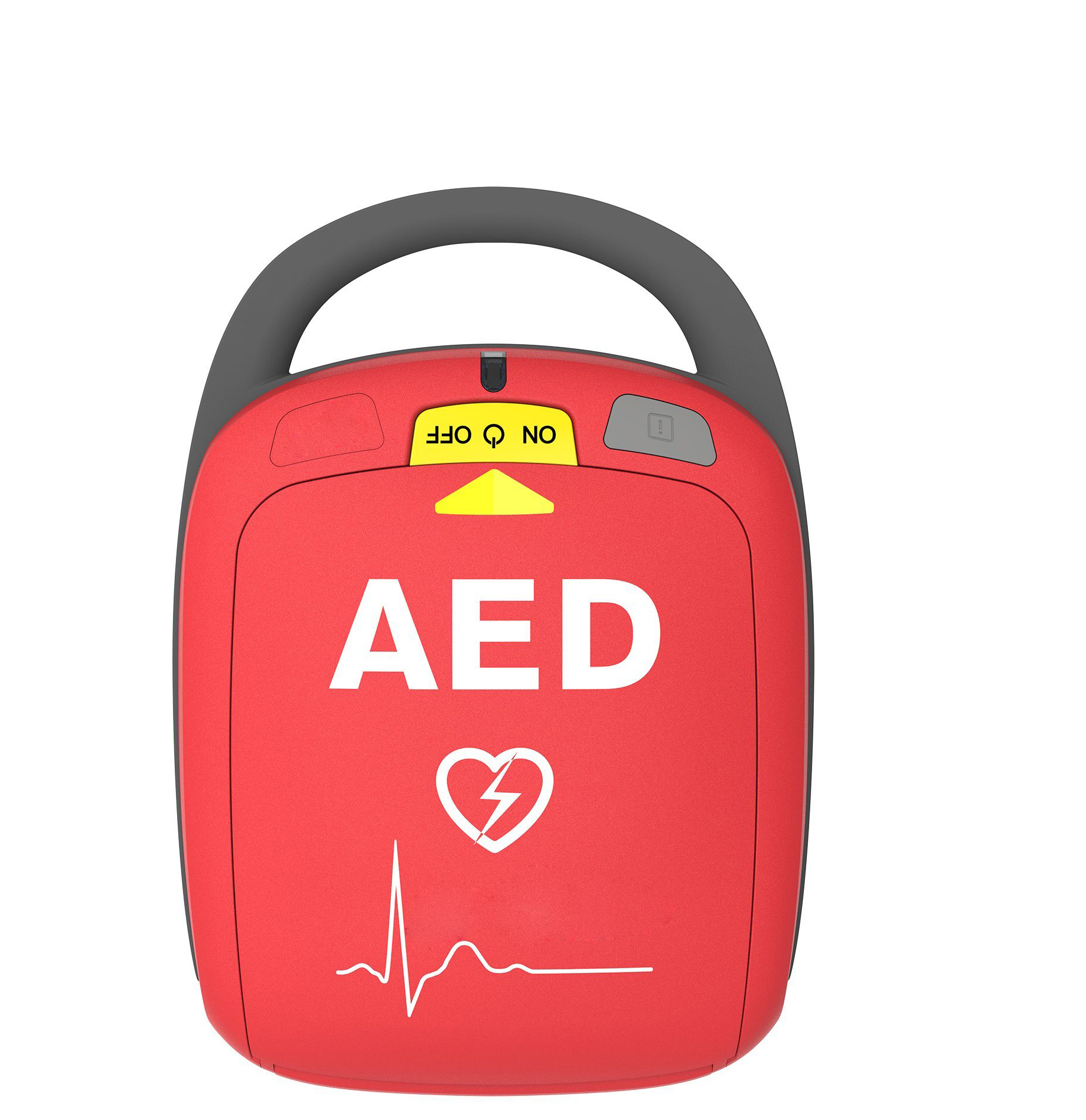

AED100 Automated External Defibrillator with Low Energy BTE
Features
-Biphasic Truncated Exponential defibrillation with low energy and minimum myocardial injury
-Non rechargeable Li-MnO2 battery with high capacity supporting up to 400 shocks
-Automatic recording of ECG data &around sounds throughout complete operating
-Preinstalled electrode pads with compatibility to both adult and child
-One step operating for cover open and power on at the same time
-Daily sef test and automatic self test upon power on
-Available with adult mode and child mode
-Automatic voice guide throughout the complete operation
-Automatic indication of unit status
-Alarm for low battery capacity and change of new one
-Optional PC software for data retrieve and download
Specifications
ECG Analysis | 8.5 second | Battery Pack | Non-rechargeable Li-MnO2 of 12V,6Ah with lifetime of 4 years |
Hi-Cap Charging | 8 second | Shock Frequency | Up to 400 times |
Shock Output | 50J(child),150J(adult) sounds | Electrode Pad | Disposable and adhesive,Preinstalled,6-years lifetime |
Data Storage | Up to 90 minutes each for ECG data and around | Voice Guide | Customized languages |
Data Transfer Protocol | Bluetooth | Weight | 2.3 Kg |
Button Operating | Power,Shock | Warranty | 2 Years |
Standard Configuration | 1 xmain unit,1x battery pads,1 x electrode pads (2 pcs),1 xcarry case |
Optional Configuration | AED trainer,first aid kit,PC software,wall mount cabinet,standing cabinet |
Low Energy BTE
-Automatic compensation and adjustment of waveform as per load impedance
-Shorter time in ECG analysis and shock preparation
-Simultaneous ECG analysis and precharging
-Higher success rate in defibrillating
-With minimum injury to myocardium
-Better for rehabilitation
-Faster in response
