Digital Wireless 17*17 inch Flat Panel Detector MS-FPD18 x-ray scanner

Availability:
Quantity:
Inquire Add to Basket

  • MS-FPD17

  • Medical sources

  • Shanghai, China

  • 100.000, 000 PCS/Year

  • L/C, T/T, Western Union, Paypal, Money Gram

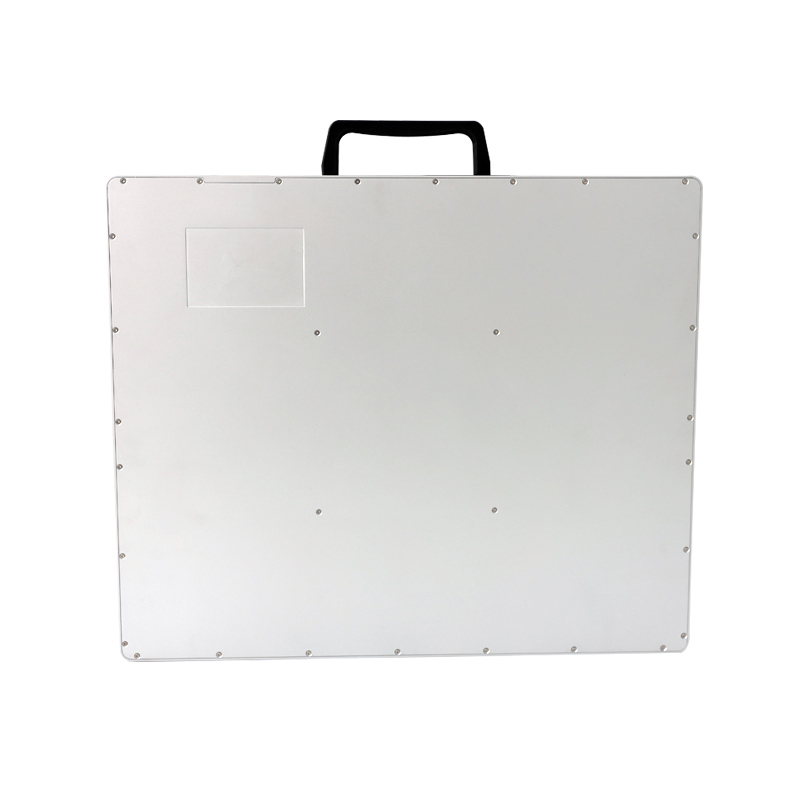

MS-FPD17-1

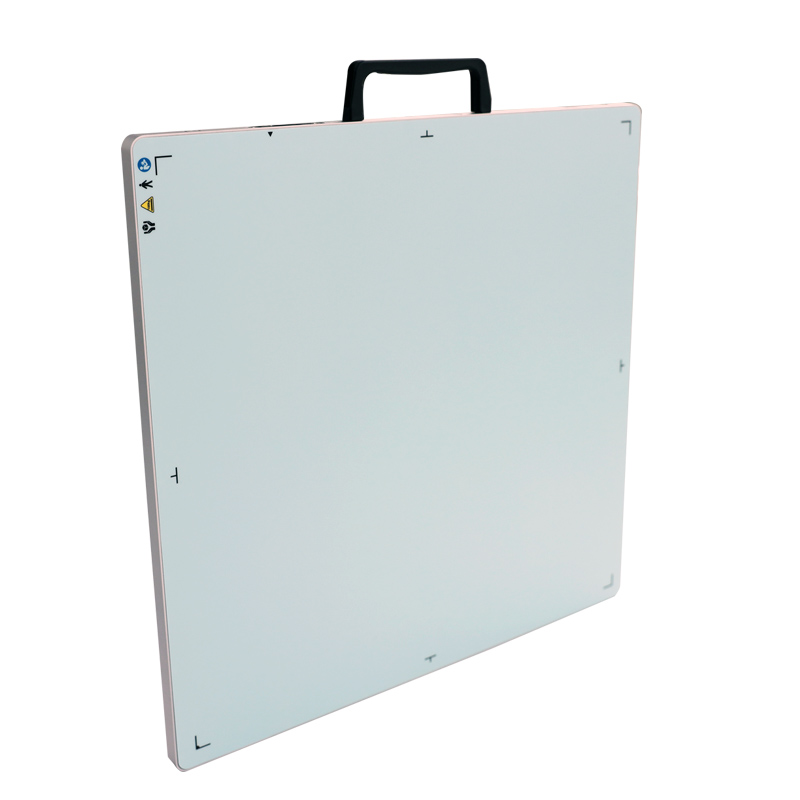

MS-FPD17-2

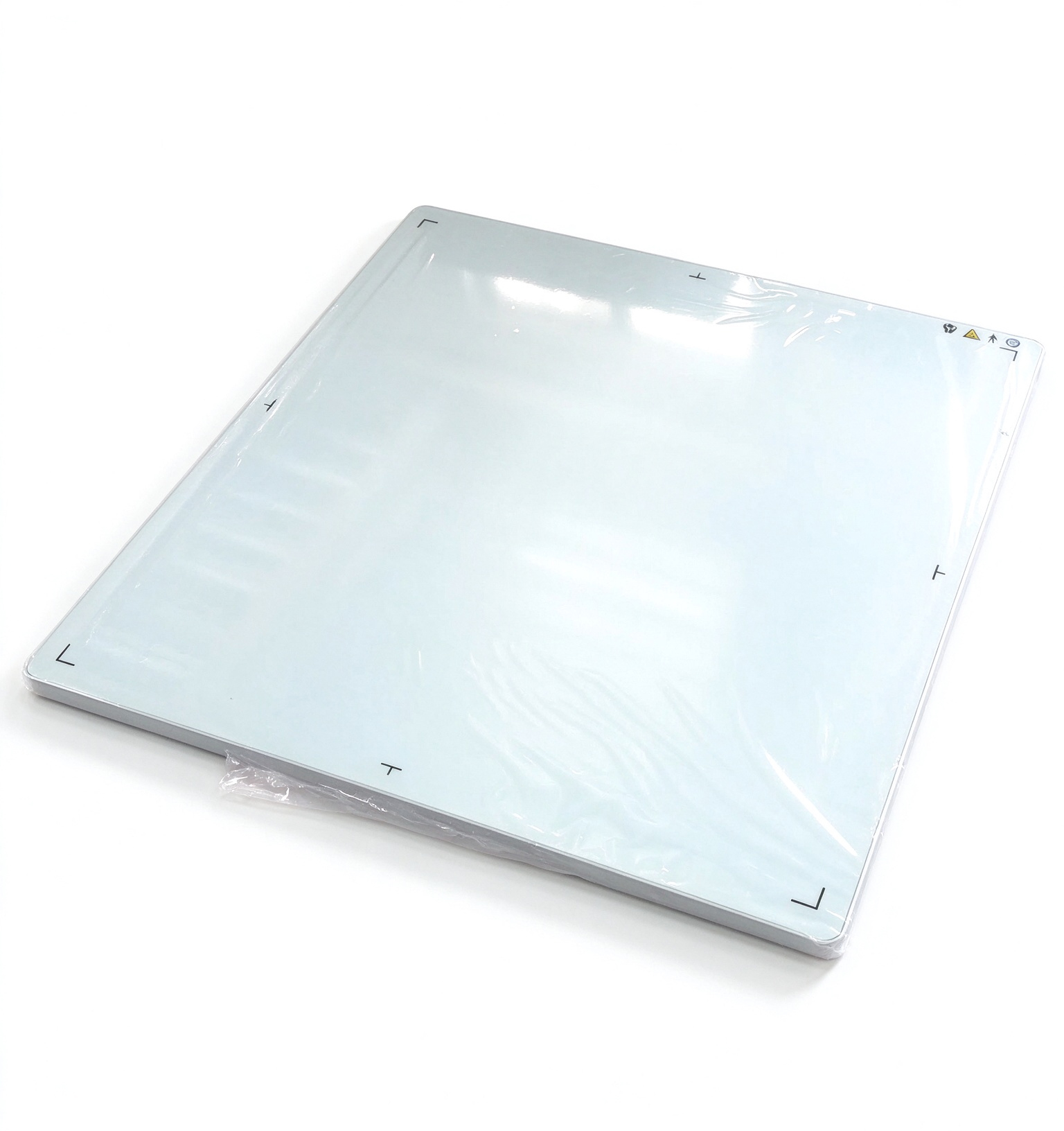

MS-FPD17-3

Digital Wireless 17*17 inch Flat Panel Detector MS-FPD18 x-ray scanner


Model number

Main parameters

MS-FPD17

Detector type: Amorphous Silicon

Scintillator type: CsI

Effective imaging area (inch): 17×17

Pixel matrix: 3072   × 3072

Pixel size ( μm): 139

AD conversion bit number: 16

Spatial resolution (lp/mm): 3.5

Image generation time: 3s

Power: 20W

X-ray energy range: 40 - 160 kV

Data interface: GigE

Dimensions (mm): 460 x 460 x 15

Weight (kg): 3.8

Waterproof rating: IP51

Operating voltage: 100 - 240V, 50 - 60Hz AC

Storage environment：-10~50℃ , 30~70% RH

Working environment: -10 - 50℃ ,   30~70% RH
