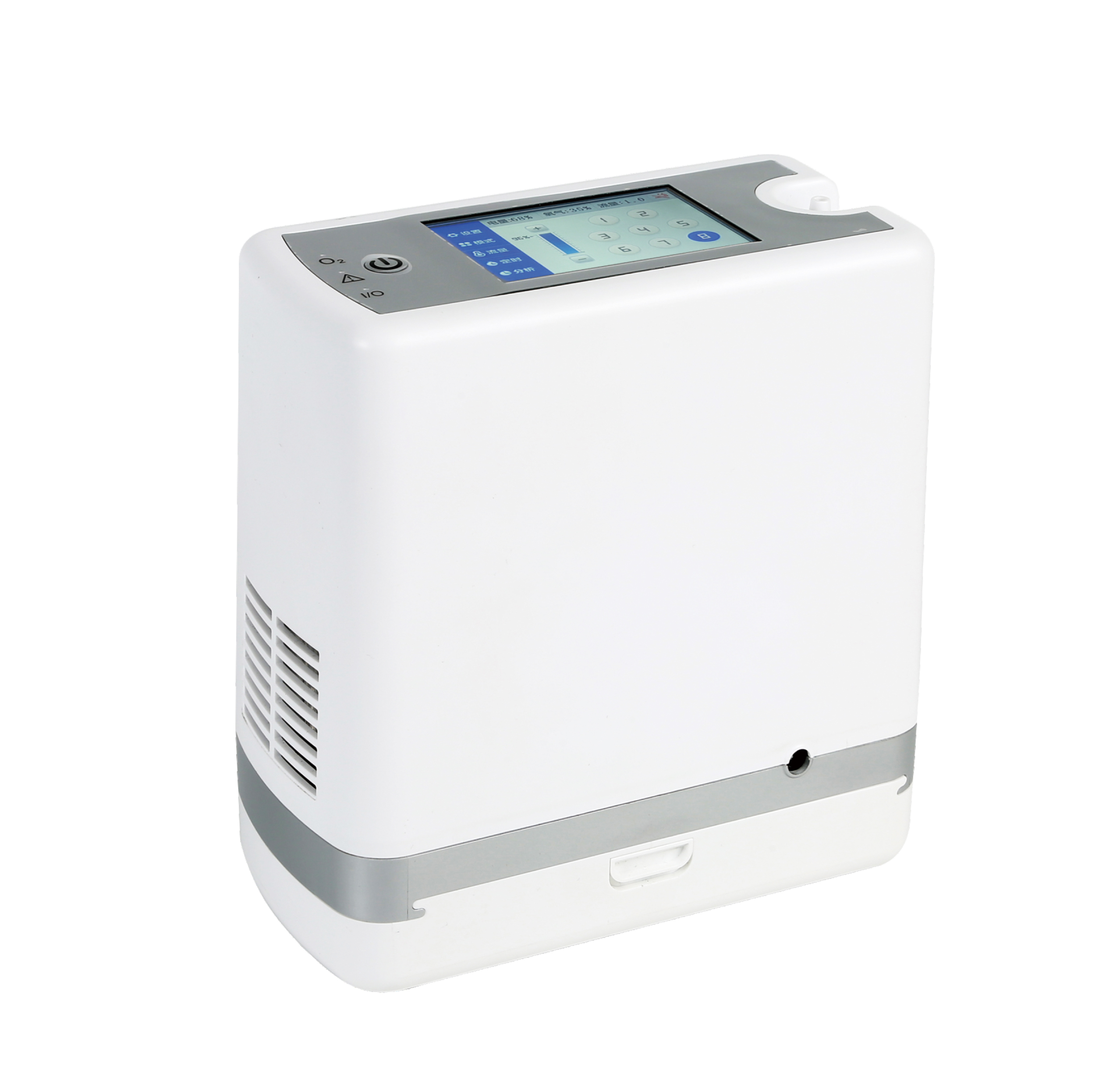

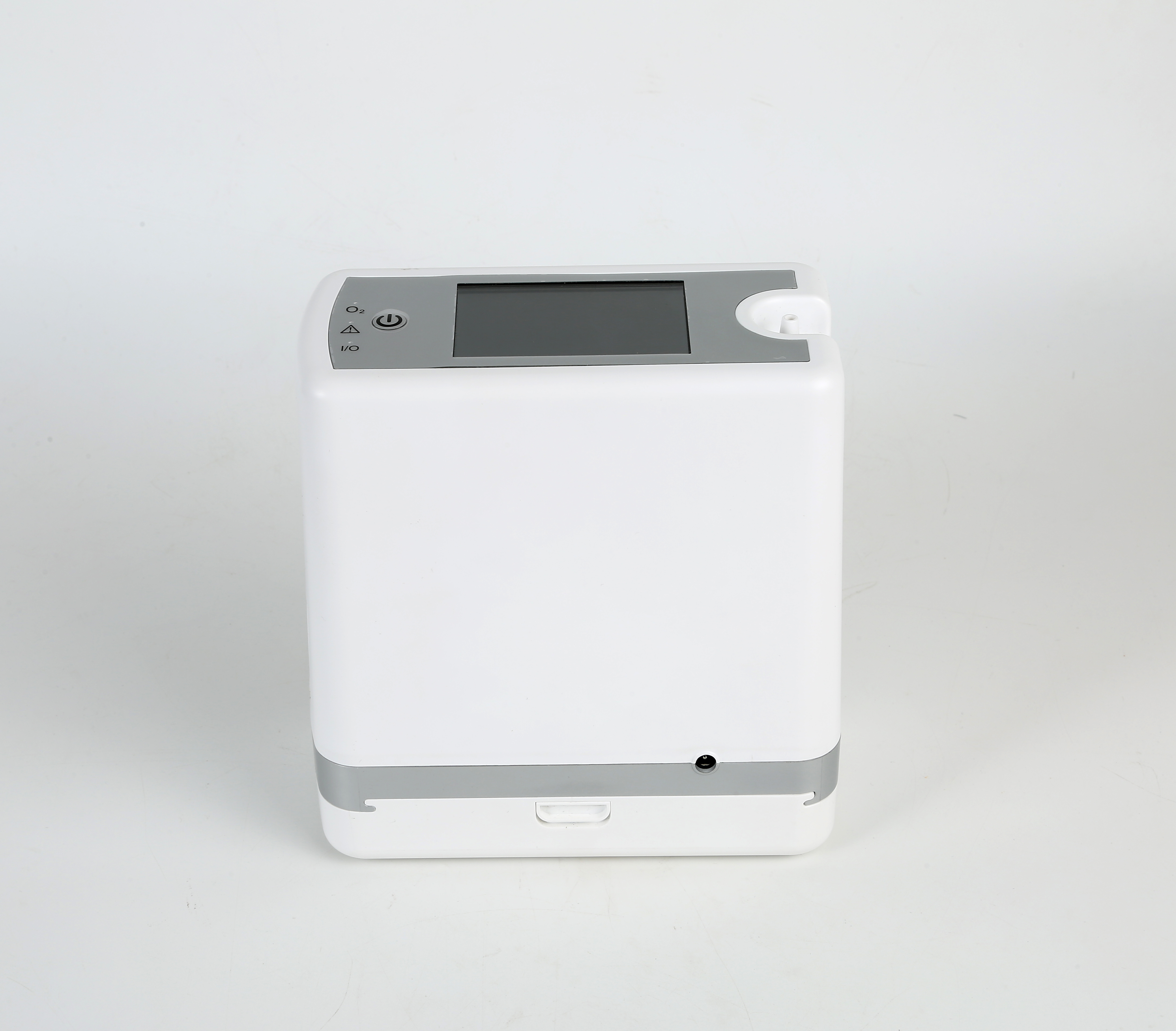

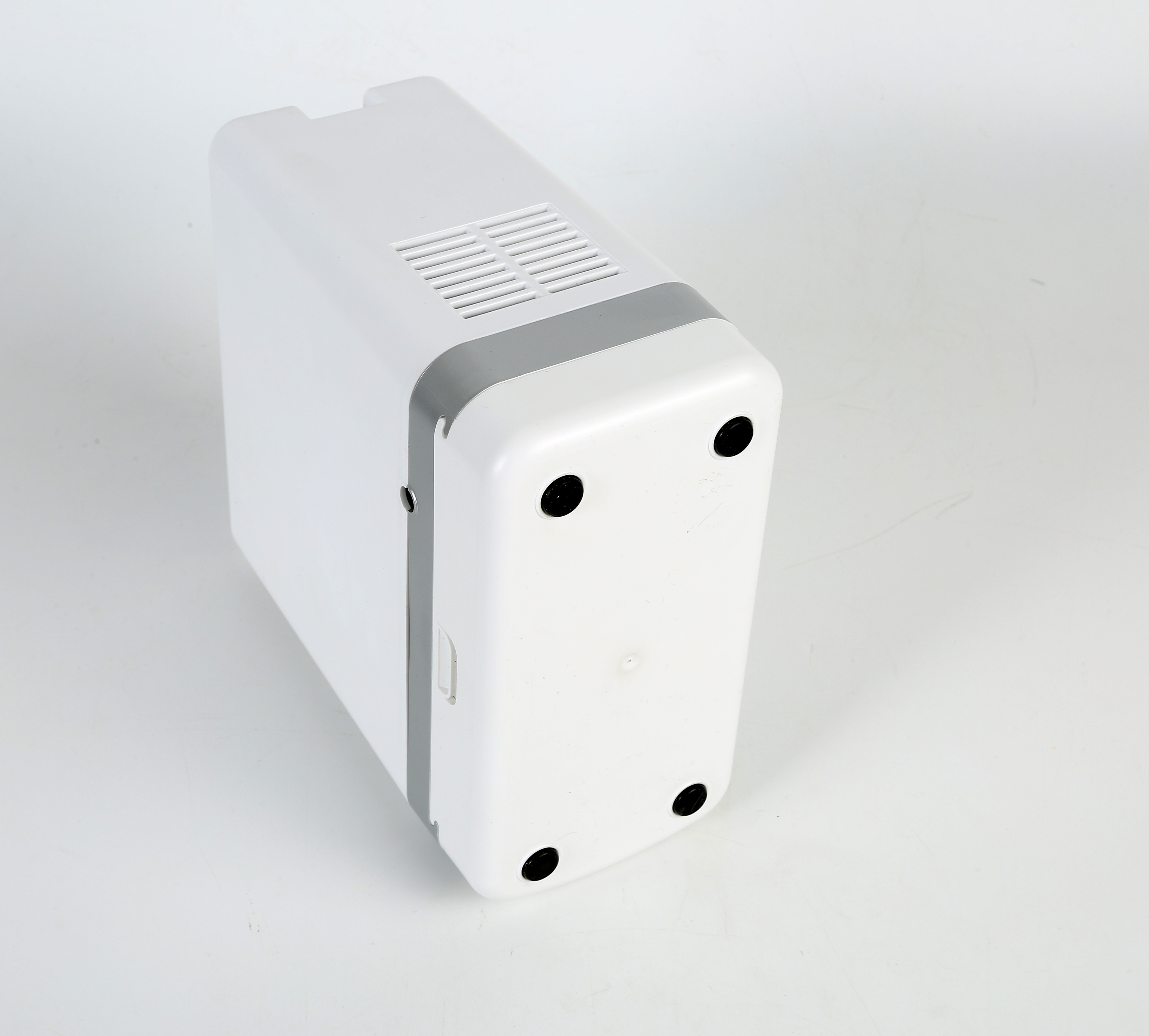

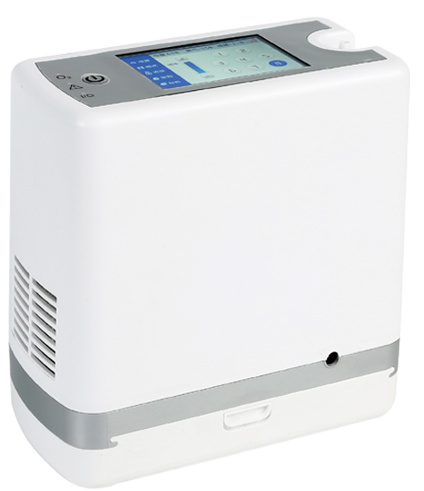

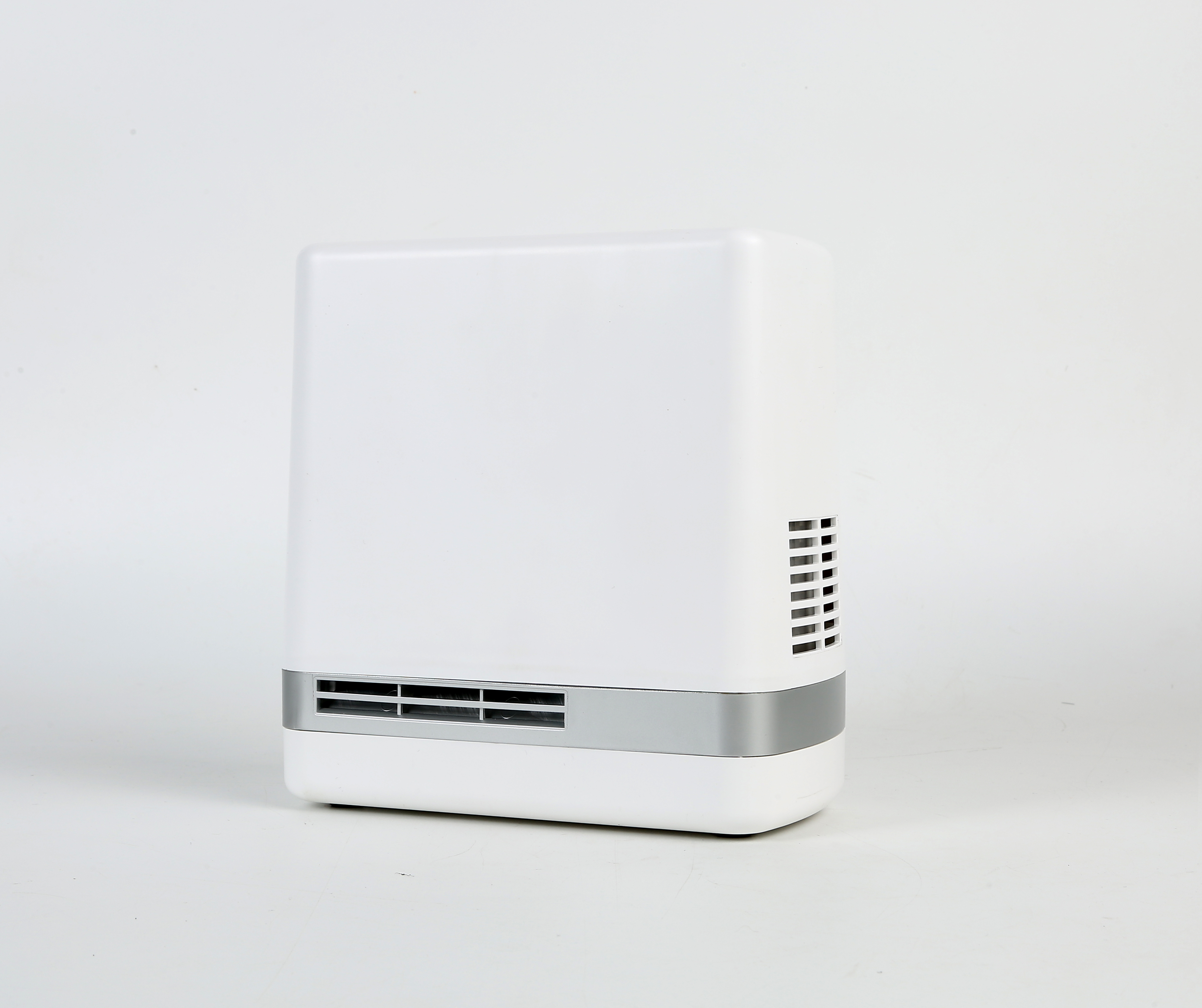

MS-100P Portable oxygen concentrator
Product Accumulation Size L*w*h: 180mm*95mm*190mm
Product weight:2Kg + 0.1Kg (including a battery)
User Page:3.5 - inch color touch LCD screen
Running Noise: 60dB (A) (gear 8)
Warm-up Time:3 minutes
Oxygen Concentration Adjust oxygen concentration according to
doctor guidance:
Maximum Recommended Flow 1L/ min (oxygen concentration 93 + 3, flow rate 8, oxygen concentration > 90 % (V /V))
Respiratory Rate:10-40 BPM
Maximum Export Pressure:140KPa+20%
Alternating Current Power Supply:AC100-240V 50/60 Hz 100VA
Internal Battery:14.8V DC 8A Max
Battery Duration:Up to 3.5 hours (1 gear to run)
Battery Charging Time:Up to 3.5 hours
Suitable Working Environment For Equipment:
Suitable temperature:5 ~ 40°C
suitable humidity: <80%
non-condensable atmospheric pressure range:860hPa ~ 1060hPa Suitable Environment For Normal Storage Of Equipment:
Suitable temperature :-40~55 °C
suitable humidity:≤93%
non-condensable atmospheric pressure range:700hPa ~ 1060hPaTransportation Request:Keep dry, be careful, don 't reverse or sidewa don 't roll
Air Environment Requirements:Equipment that cannot be used in the case of flammable anesthetic gas mixed with air or flammable anesthetic gas mixed with oxygen or nitrous oxide
