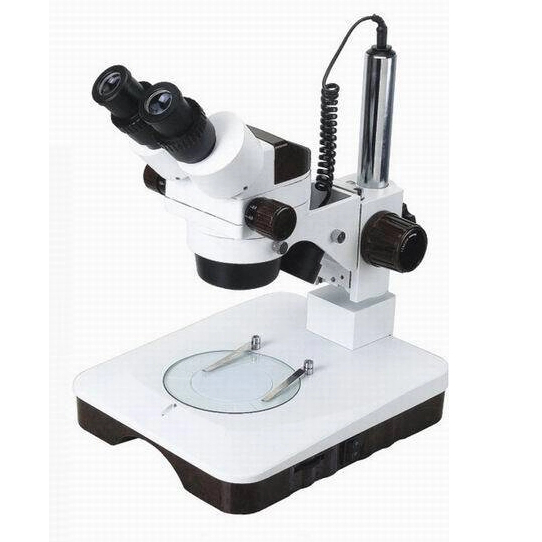

MS-102G Stereo Microscope
Objective: 0.7X-4.5X, Working Distance: 100mm
Wide Field Plane-Scope Eyepiece: WF10X/22(1 Pair),WF15X,WF20X(Optional);
Articulated Free Binocular Head,Interpupillary Distance:55-75mm,45º Inclined,360º Rotatable ,with a diopter adaptor on the both eyepiece tube;
Magnification:7-45X;
Working distance: 100mm;
Base: 290X245X60mm,with spring clips;
Stage:Ø125mm ,one piece of Frosted Glass Stage(for bottom illumination),one piece of plastic blach-white plate (for top illumination);
Rack and Pinion Focusing,with hand wheels for adjusting focusing torque.
Focusing Range:75mm;
Standing method: Pole,pole height:280mm,the moving range of head holder: 130mm;
Top and bottom extra light LED lamp,light adjustable separately;
Whole size: 0X140X360mm;
Net Weight/Set: 5kgs;
Package:1 Set/Carton37X32X57cm;
Optional parts: 1.auxiliary objective: 0.5X,0.75X,1.5X,2X;
2.external ring light.
