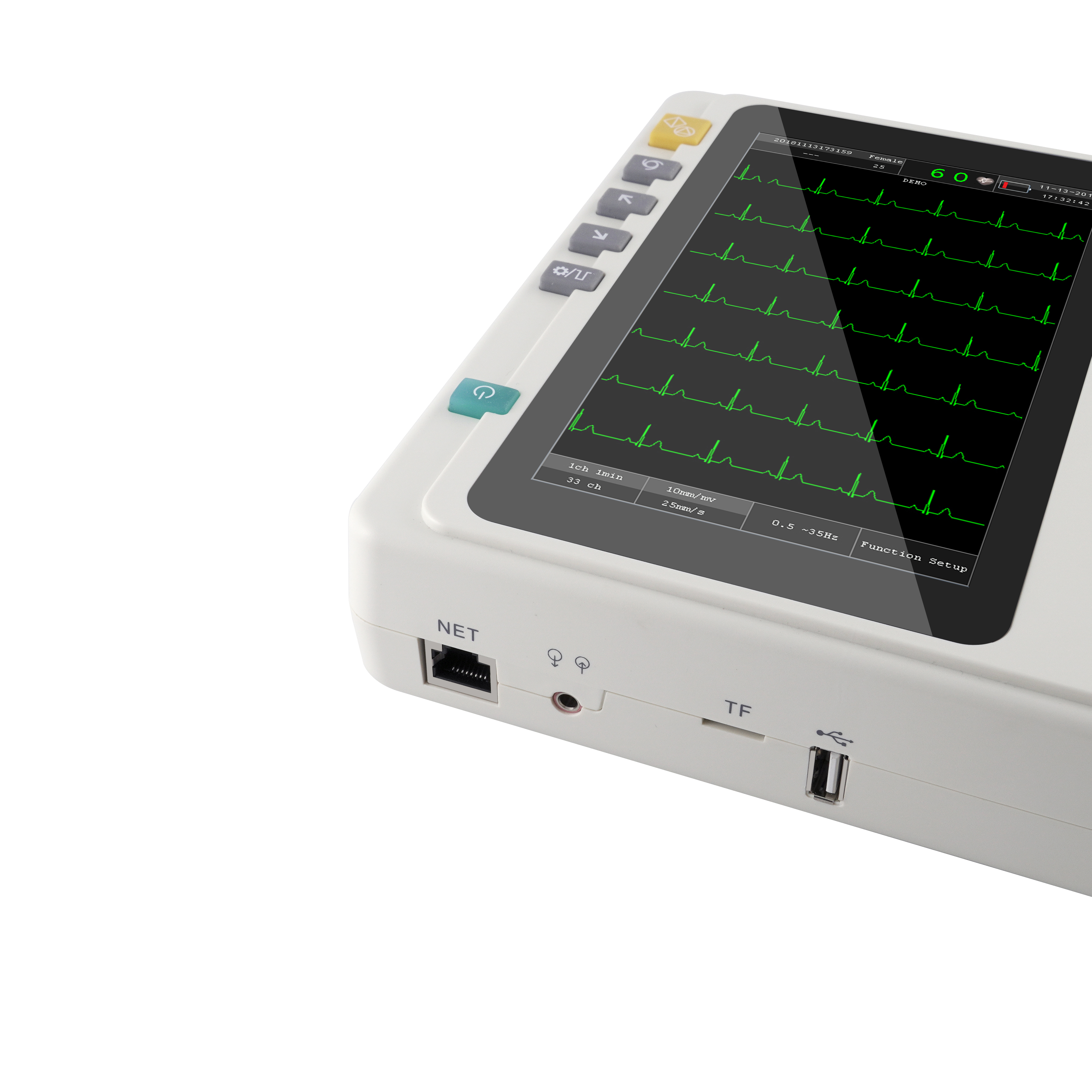

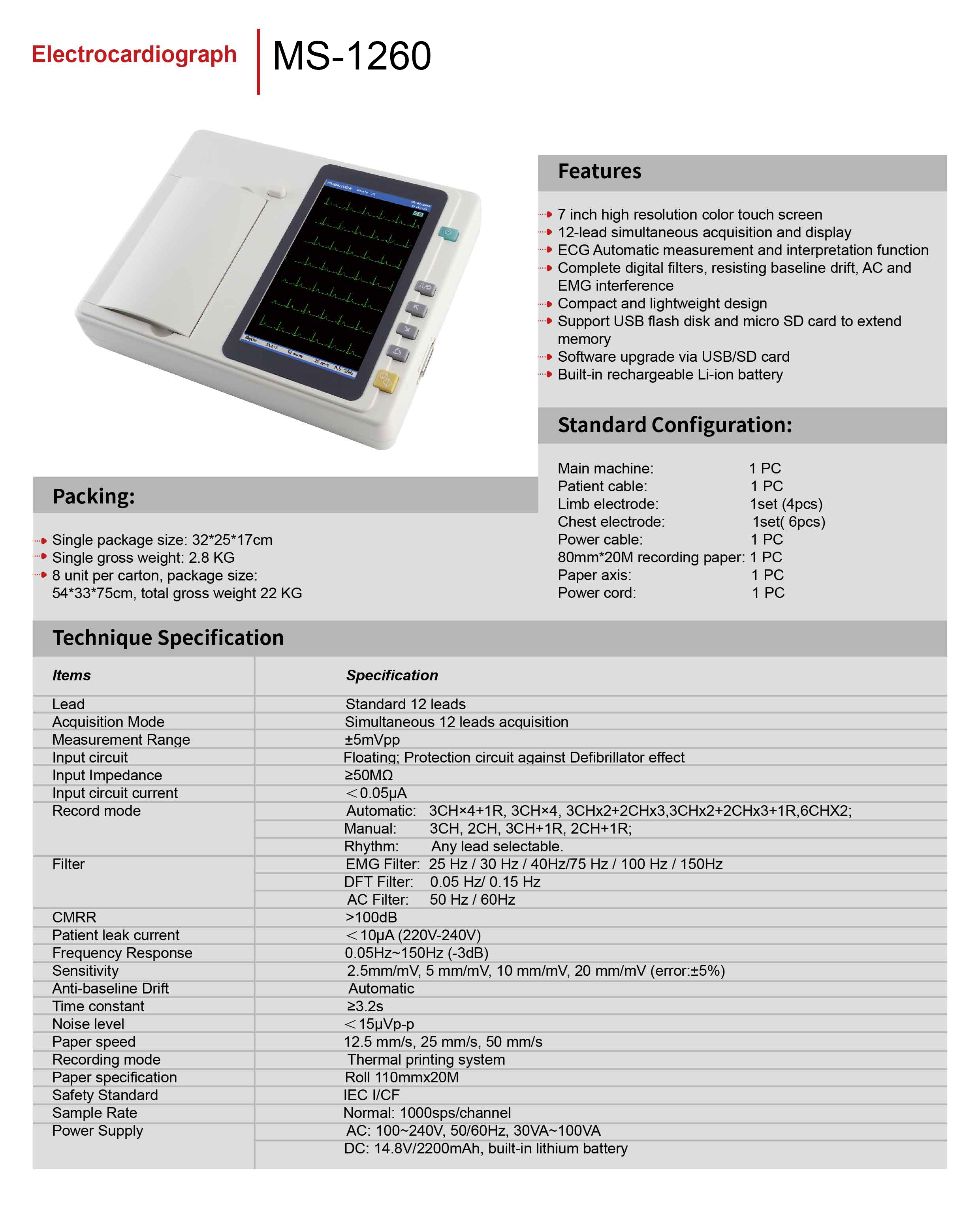

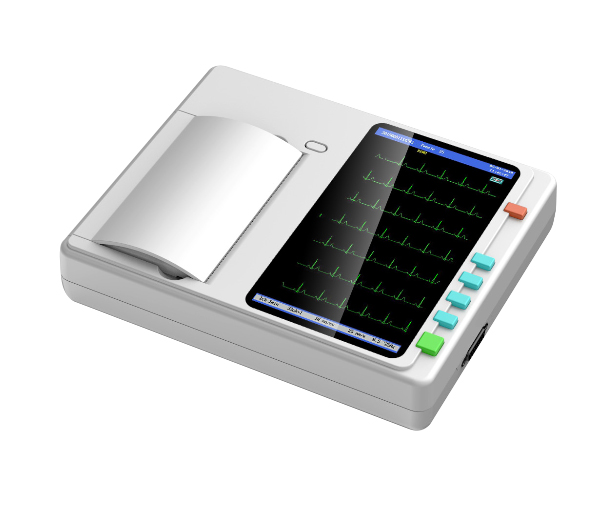

MS-1260 Six Channel ECG Machine
Features:
v 7 inch high resolution color touch screen
v 12-lead simultaneous acquisition and display
v ECG Automatic measurement and interpretation function
v Complete digital filters, resisting baseline drift, AC and EMG interference
v Compact and lightweight design
v Support USB flash disk and micro SD card to extend memory
v Software upgrade via USB/SD card
v Built-in rechargeable Li-ion battery
v
Technical Specifications:
Items | Specification |
Lead | Standard 12 leads |
Acquisition Mode | Simultaneous 12 leads acquisition |
Measurement Range | ±5mVpp |
Input circuit | Floating; Protection circuit against Defibrillator effect |
Input Impedance | ≥50MΩ |
Input circuit current | ＜0.05µA |
Record mode | Automatic: 3CH×4+1R, 3CH×4, 3CHx2+2CHx3,3CHx2+2CHx3+1R,6CHX2; Manual: 3CH, 2CH, 3CH+1R, 2CH+1R; Rhythm: Any lead selectable. |
Filter | EMG Filter: 25 Hz / 30 Hz / 40Hz/75 Hz / 100 Hz / 150Hz DFT Filter: 0.05 Hz/ 0.15 Hz AC Filter: 50 Hz / 60Hz |
CMRR | >100dB |
Patient leak current | ＜10µA (220V-240V) |
Frequency Response | 0.05Hz~150Hz (-3dB) |
Sensitivity | 2.5mm/mV, 5 mm/mV, 10 mm/mV, 20 mm/mV (error:±5%) |
Anti-baseline Drift | Automatic |
Time constant | ≥3.2s |
Noise level | ＜15µVp-p |
Paper speed | 12.5 mm/s, 25 mm/s, 50 mm/s |
Recording mode | Thermal printing system |
Paper specification | Roll 110mmx20M |
Safety Standard | IEC I/CF |
Sample Rate | Normal: 1000sps/channel |
Power Supply | AC: 100~240V, 50/60Hz, 30VA~100VA DC: 14.8V/2200mAh, built-in lithium battery |
Standard Configuration:
v Main machine: 1 PC

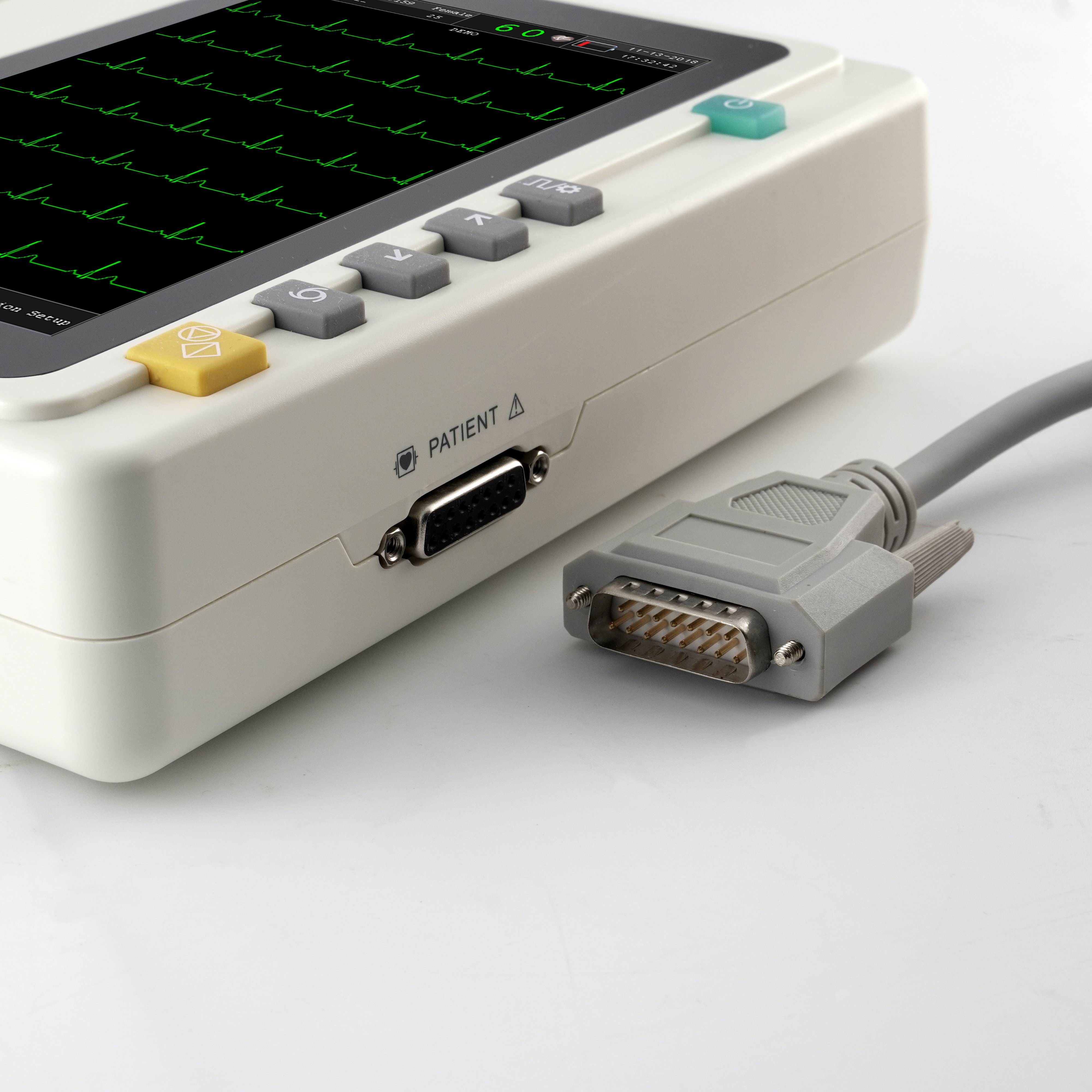

v Patient cable: 1 PC
v Limb electrode: 1set (4pcs)
v Chest electrode: 1set( 6pcs)
v Power cable: 1 PC
v 110mm*20M recording paper: 1 PC
v Paper axis: 1 PC
v Power cord: 1 PC
