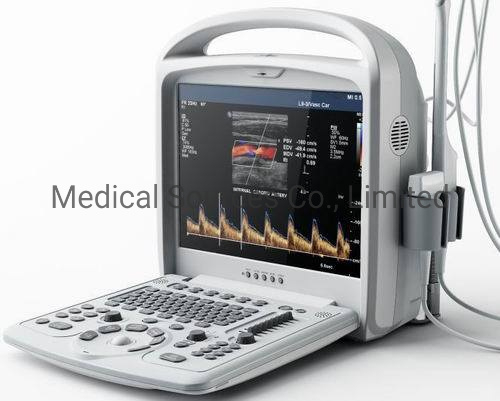

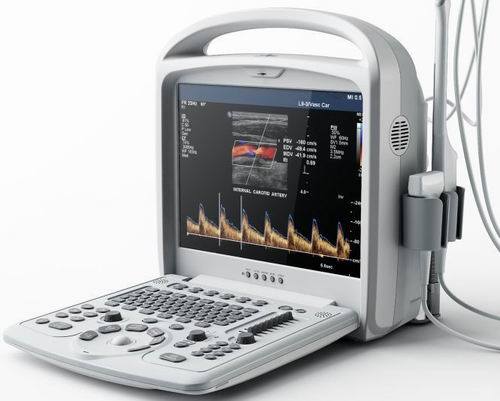

MS-2000C Portable Colour Doppler Ultrasound Scanner
Compacted as a laptop, 2000C incorporates with the cutting-edge ultrasonic imaging technologies such as Color Doppler, Power Doppler, Pulse Wave Doppler, etc. User-friendly operation platform based on Windows contributes to easy and relax management of ultrasonic images and reports. Thanks for the improvement of bio-science and technology, a color Doppler ultrasound system is not difficult to possess now!
Main features:
1. Ergonomic design, light in weight
2. User-friendliness contributed by operation system based on Windows
3. 15" non-interlaced medical LCD, all round visual angle, environment protection
4. Application of broadband, high density, multi-frequency transducers
5. Excellent 2D performance, with THI for better contrast and spatial resolution
6. Varies imaging modes of B, B/B, 4B, B/M, M, CFM, PDI, DPDI, PWD, Duplex, Triplex, HPRF
7. Comprehensive software packages of Obstetrics, Gynecology, Abdominal, Urology, Endocrinology, Vascular, Cardiology, etc.
8. 160G built-in HDD
9. 8 segments TGC
10. teering M
11. Expanding peripheral ports of VGA, TV, USB, DICOM
12. Support either laser printer or video printer
Technical Specifications:
1.Scanning Method: electronic linear/convex/micro-convex
2.Scanning Depth: 2-24cm
3.Imaging Mode: B, B|B, 4B, B|M, M, Color Doppler (CFM), Power Doppler (PDI), Directional Power Doppler (DPDI), Pulsed Wave Doppler (PWD), B+PWD (Duplex),
B+CFM/PDI/DPDI+PWD (Triplex), High Pulse Repetition Frequency (HPRF), Tissue
Harmonic Imaging (THI)

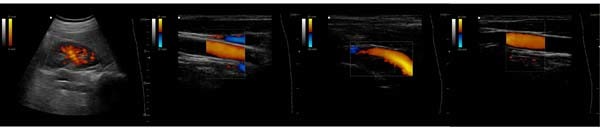

4.Color Doppler:
PRF variable: 0.5-9 kHz
Wall filter settings: 3 steps (5%, %10%, 15% PRF)
Angle steering for linear transducers: ±10°
Real-time spatial filter: 4 values
CFM palette>10 maps
PDI palette>10 maps
B/Color priority control
Color threshold control
CFM baseline control
Doppler frequency selection
color frame averaging
Transparent Color Mapping (TCM)
5.Pulsed Wave Doppler:
PRF variable: 1-10 kHz
Wall filter settings: 16 steps (2.5%-20% PRF)
Angle steering for linear transducers: ±10°
Real-time trace line with automatic calculation of spectrum parameters
Stereo sound: volume control
PWD palette>10 maps
Doppler frequency selection
6.Image Processing:
High Line Density scan mode for better resolution
Dynamic range>120 dB
M-mode sweep speed control
Acoustic power control
Variable frame averaging
Advanced gamma control
Scan direction, rotation, up-down controls
Echo enhancement control
Noise rejection function
Speckle reduction
7.Image and video saving format: AVI, JPG, BMP, PNG, TIF, DCM (DICOM)
8.General Measurement and calculation: Distance, Length, Area, Circumference, Volume, Angle, Stenosis Ratio, A/B Ratio, Velocity, Pressure Gradient (PG), Acceleration, Resistivity Index (RI), Heart Rate, Velocity Time Integral (VTI), etc.
9.Measurements and Calculations Software Packages: Obstetrics, Gynecology, Abdominal, Urology, Endocrinology, Vascular, Cardiology, etc.
10.Peripheral port: VGA, TV, USB, DICOM
11.Support Printer: Laser, video
Standard Configuration:
3.5MHz Convex Probe
Options:
7.5MHz Linear Probe
6.5MHz Transvaginal Probe
Biopsy Guide for Convex Probe
Video Printer,Laser Printer
