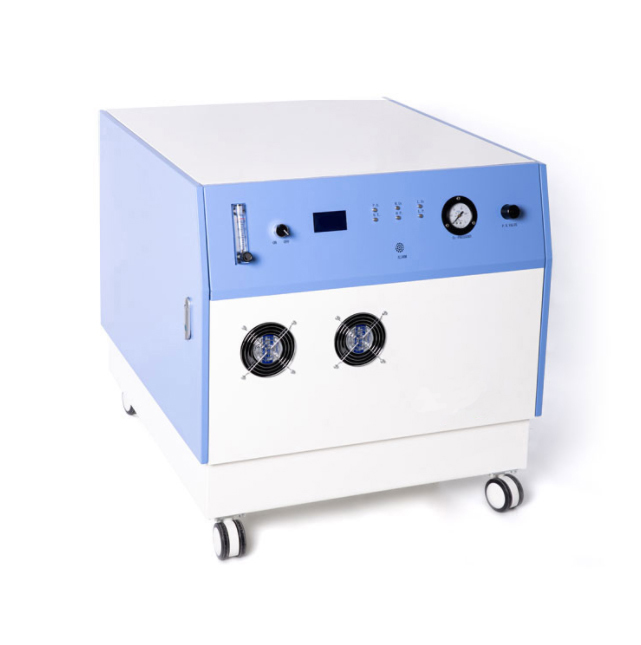

MS-20L PSI Oxygen Concentrator
Features:
20-60 Psi outlet pressure ensure to connect with ventilator and the anesthesia machine;
Seven sets of fans ensure the machine's operating temperature and more conducive
to heat dissipation;
The metal oxygen outlet supports the connection of various oxygen tubes,
Two sets of filters easy to maintain the oxygen generator;
Four big wheels easy to move flexibly;
Optional connecting with oxygen tank from 200-3000L;
Medical Use:Connect with ventilator or anaesthesia machine in small hospitals;
The machine is equipped with a cold dryer to ensure the stability of the machine.
Specification
MS-15L;MS-20L |
Flow Rate | 1--15 L/min;1--20 L/min | Net Weight | 118kgs |
Oxygen Concentration | 93%(±3%) | Power Consumption | ≤2000W |
Outlet Pressure | 20-60 PSI(0.14-0.4Mpa) | Input Frequency | 50Hz;60 Hz |
Sound Level | ≤60dB | Input Voltage | AC 230V±10%;AC110V±10% |

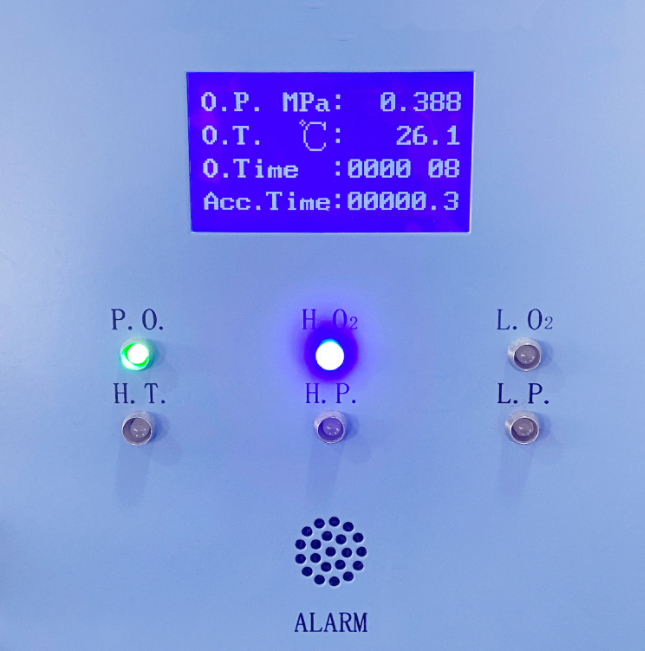

Alarm | 1.Power failure alarm; 2.High and low pressure alarm; 3.Low oxygen purity alarm: When oxygen purity is >82%, blue light illuminate; When oxygen purity is <82%, red light illuminate, indicating low purity; |
