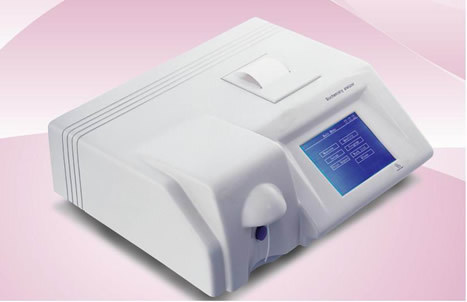

MS-2180 Semi-Automatic biochemistry Analyzer
Features
End point, kinetics, fixed time absorbance
All-in-one optical system, high reliability and anti-interference
7 filters (340-630nm) + 1 free position
Reaction curve and QC graph print-out
Dynamic temperature control of Peltier elements, 25-30-37 ºC
Up to 112 test profiles can be programmed
Memory for 3200 sample results
Touch screen, large LCD display
Specifications
LIGHT SOURCE :Quartz-halogen lamp 12V/20W
WAVELENGTH RANGE
1. Automatic by 8 positions filter-wheel
2.7 standard filters: 340, 405, 492, 510, 546, 578, 630nm
3. 1 position free for optional filter
4. Half bandwidth < 8nm
5. Stray light: < 1.0% at 340 nm
PHOTOMETRIC RANGE
1.0.0000 to 3.0000 ABS
2. Resolution: 0.0001 ABS
3. Stability: 0.002 A/hour
FLOWCELL
1.Stainless steel with quartz window
2. Measuring volume 32 μL
3. Optical path 10mm
4. Aspiration volume programmable: 200 - 2000 μL
5. Carryover < 1.0%
ANALYSIS METHOD
1. End point, with or without reagent blank
2. End point, with sample blank, with or without reagent blank
3. Kinetic, with or without linearity check
4. Two-point kinetic / fixed time, with or without reagent blank
5. Absorbance
6. Turbidimetry
7. Linear and non-linear calibration
PARAMETER SETTINGS
1. Method
2. Wavelength
3. Temperature
4. Reagent blank y/n
5. Sample blank y/n
6. Lag time
7. Measurement time
8. Reaction type
