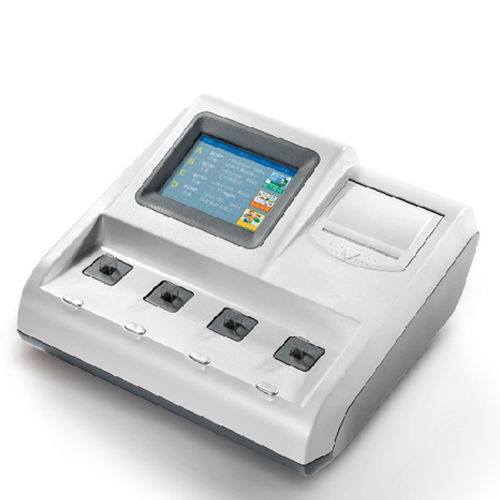

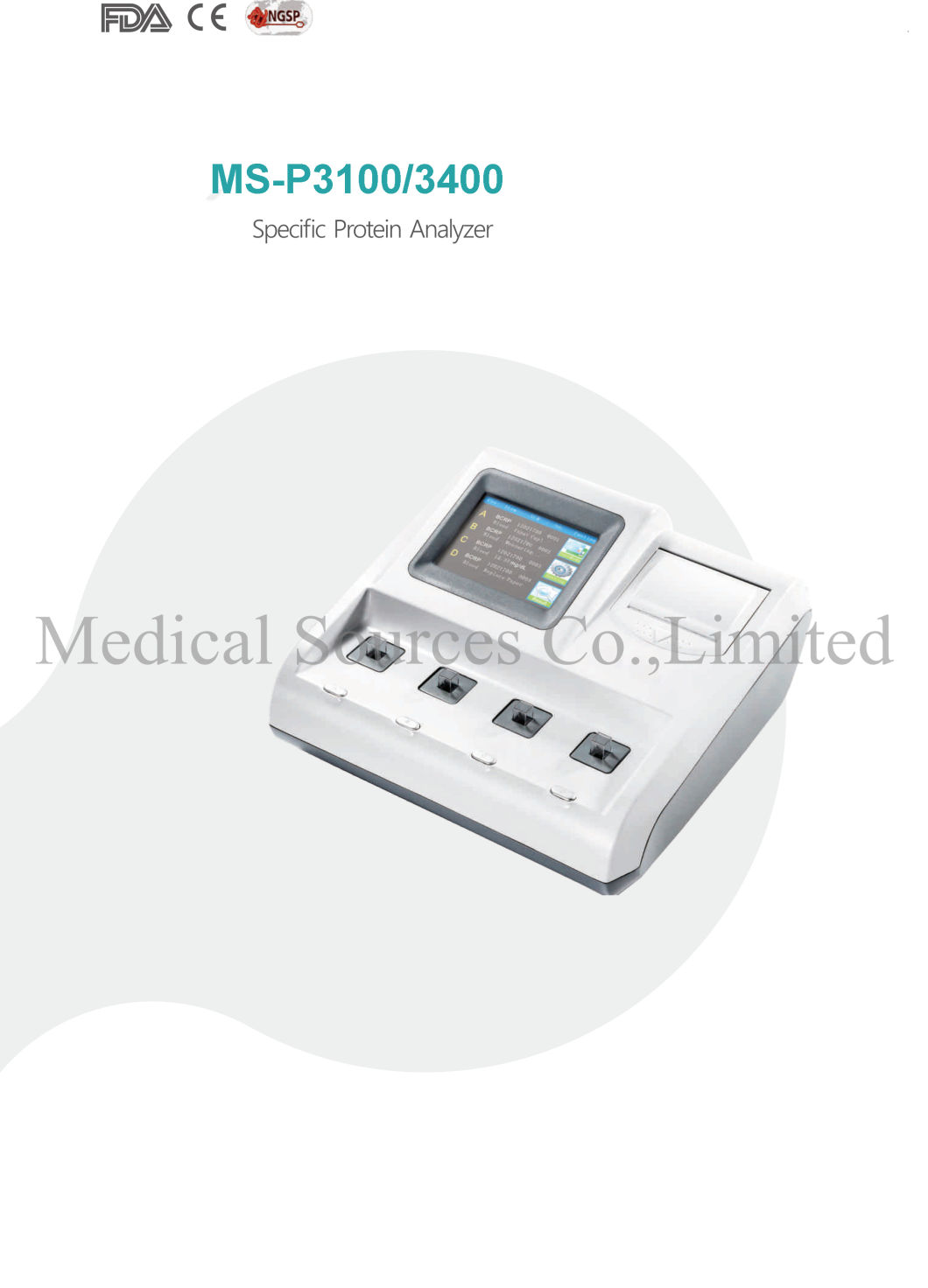

MS-P3400 Specific Protein Analyzer
Test Principle:Nephelometry.

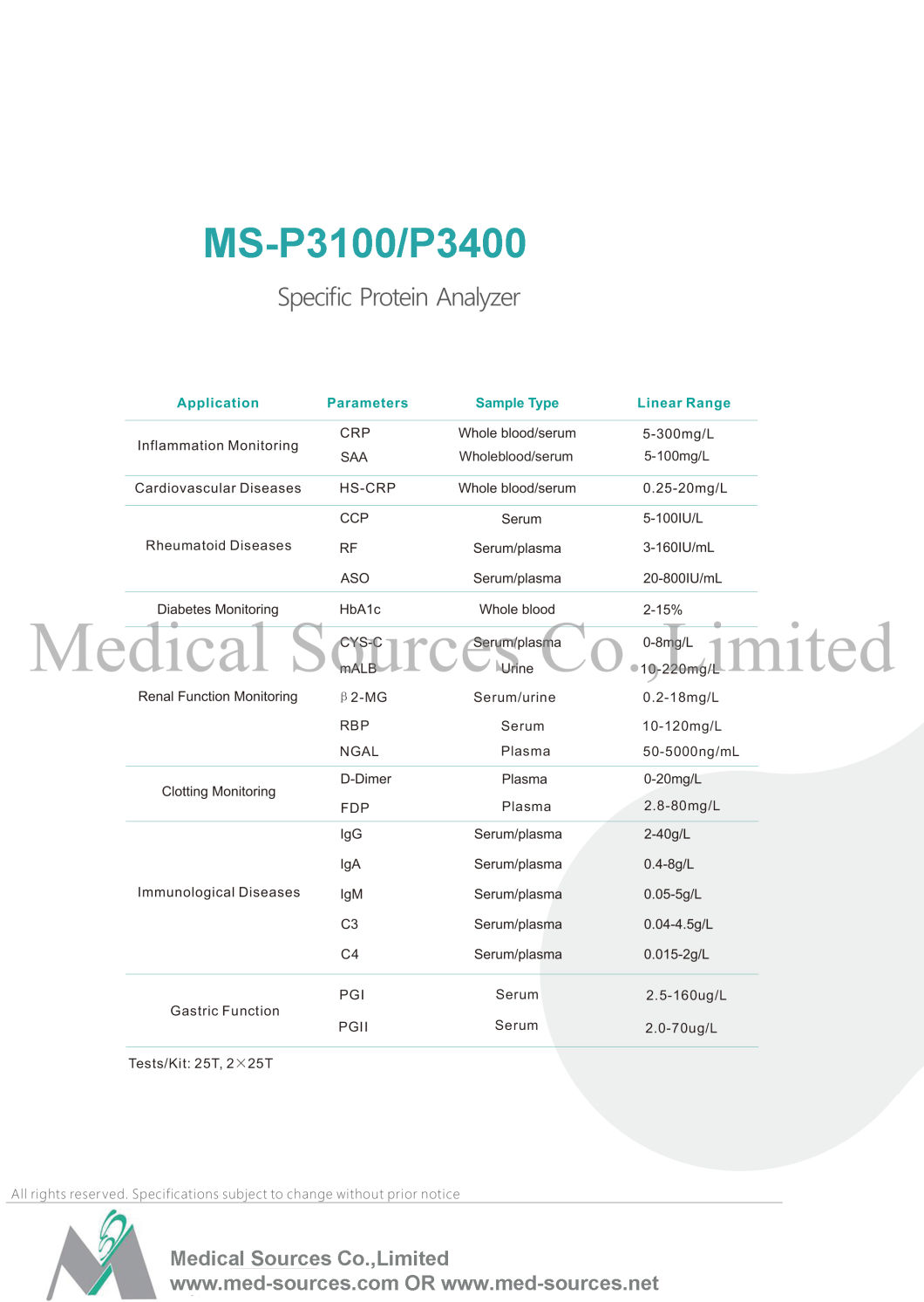

Parameters :hsCRP,HbA1c,mALB,D-Dimer,ASO,RF,C3,C4 etc.can be extended to more than 30 parameters.
Light source:Diode laser,wavelength 650nm.
Testing channel:4 independant channel,can test same sample or different samples simultaneously.
CRP Assay in whole blood
Assay range: 0.8-300 mg/L
Only 2-20 ul venous or capillary blood required
Results available with 2 minutes
HbA1C assay
One step latex-enhanced direct method, no need for determination of total hemoglobin
Results according to NGSP or IFCC
Time saving
Assay range: 3-15%
Sample type:Whole blood,Serum,plasma,urine etc
Sample volume:2ul~100uL
Reagent volume:20~100uL
Throughput:150 samples/per hour
Reference:Calibrated against the International Reference Material CRM470
Calibration:Magnetic card system.No need to do calibration curve
Temperature control:Auto temperature control and mixing
Display:5.6 inch high resolution color touch screen
Storage :Can be saved 100000 sample data,and can be extended by SD card
Interface:COM RS-232
Device extension:.Compatible with bar code reader, LIS and HIS
Printer:Built-in Thermal printer. auto and manual printing is optional
Working temperature::15ºC~35ºC;Humidity:≤85%RH
Voltage:~100--240V,50/60Hz
Power:≤ 60VA
