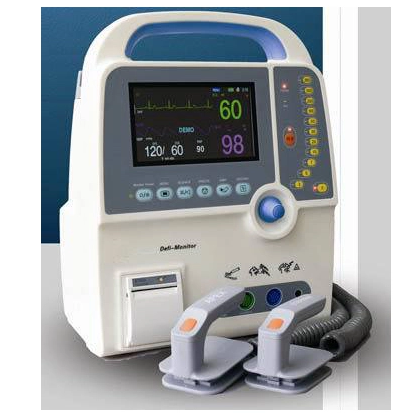

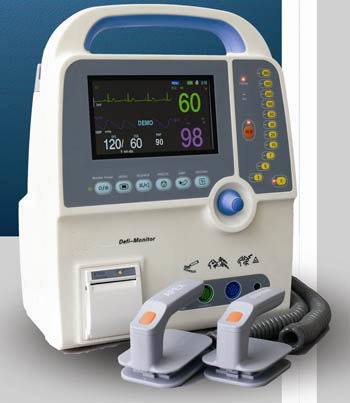

MS-360C Monophasic Defibrillator
Physical characteristics
Main unit: Portable
Dimensions:L320xW205xH410
Weight:9.8kg
Standard parameter & configuration
ECG/ RESP,/SPO2,/TEMP,/PR,/NIBP/DEFIBRILLATOR
Optional parameter
Recorder
Technical specifications
Defibrillaltor:
(1) Defibrillator type: Manual, Synchronized, Asynchronized
(2) Out put waveform: Monophasic technology/Biphasic technology (optional)
(3) Energy accuracy:<±1%
(4) Energy selection: 0,3,5,7,10,20,30,50,100,200,300,360 joule(nominal at a resistance of 50)
(5)Charging time: Maximum 8 seconds to 360 Joules
(6) Standard: Adult/Pediatric Paddles Reusable extermal adult paddles(pediatric paddles integrated)
Power requirements
(a) AC Power supply: 110V, 60 Hz /220V,50 Hz
(b)Vehicle Voltage: DC 12V
Internal Battery Backup
(1)Battery type: Rechargeable lead-acid battery/ lithium battery(optional)
(2)Charging time: Time-Minimum of 4 hours for full charging
(3)Battery charging: During AC Power Supply operation of the device
(4)Charging /Low Battery Indication: Red LED
(5)Battery Capacity: 100% of the battery will provide 120 mins of monitoring; and 30 discharges at 360 joules
Display
LED Dimensions: 7'diagonal {155mm*88mm}
Type: High resolution true-color graphic LED
Resolution: 480X234
