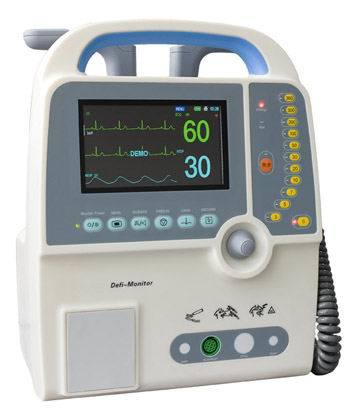

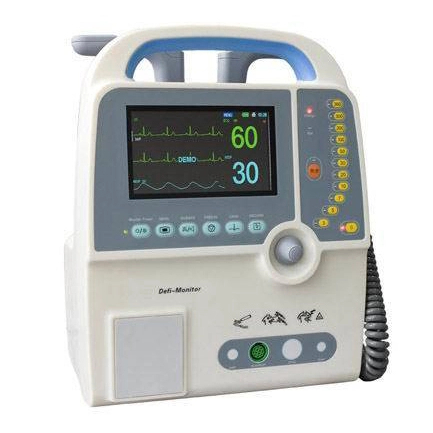

MS-360D Monophasic Defibrillator
Physical characteristics
Main unit: Portable
Dimensions:L320xW205xH410
Weight:9.5kg
Standard parameter & configuration
ECG/ RESP/DEFIBRILLATOR
Optional parameter
Recorder
Technical specifications
Defibrillator:
(1) Defibrillator type: Manual, Synchronized, Asynchronized
(2) Out put waveform: Monophasic technology/Biphasic technology (optional)
(3) Energy accuracy: <±1%
(4) Energy selection: 0,3,5,7,10,20,30,50,100,200,300,360 joule(nominal at a resistance of 50)
(5) Charging time: Maximum 8 seconds to 360 Joules
(6) Standard: Adult/Pediatric Paddles Reusable extermal adult paddles(pediatric paddles integrated)
Power requirements
(a) AC Power supply: 110V, 60 Hz /220V,50 Hz
(b) Vehicle Voltage: DC 12V
Internal Battery Backup
(1) Battery type: Rechargeable lead-acid battery/ lithium battery(optional)
(2) Charging time: Time-Minimum of 4 hours for full charging
(3) Battery charging During AC Power Supply operation of the device
(4) Charging /Low Battery Indication Red LED
(5) Battery Capacity : 100% of the battery will provide 120 mins of monitoring; and 30 discharges at 360 joules
Display
LED Dimensions: 7'diagonal {155mm*88mm}
Type: High resolution true-color graphic LED
Resolution: 480X234
