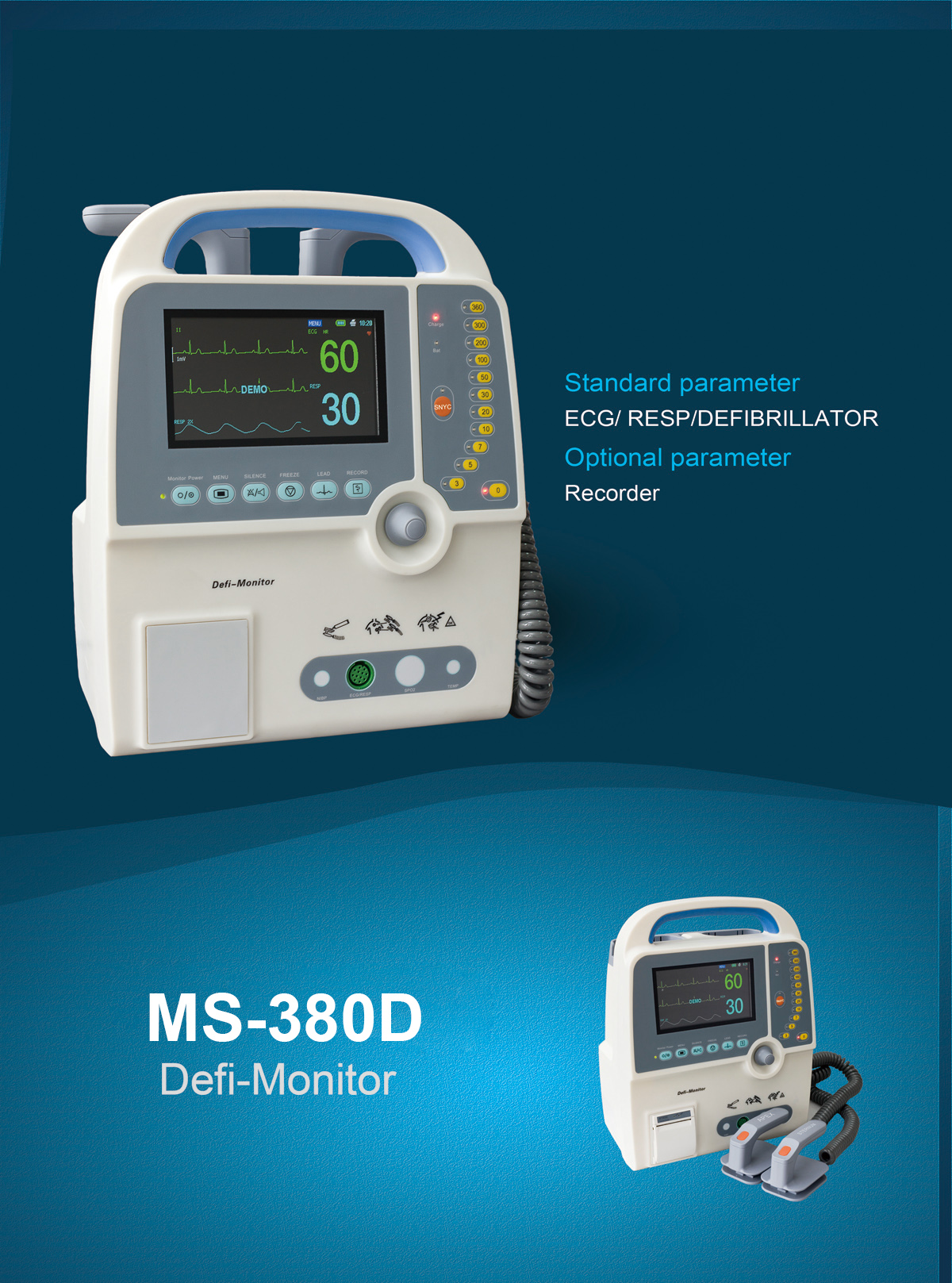

MS-380D Biophasic Defibrillator
Physical characteristics:
Main unit: Portable
Dimensions:L320xW205xH410
Weight:9.5kg

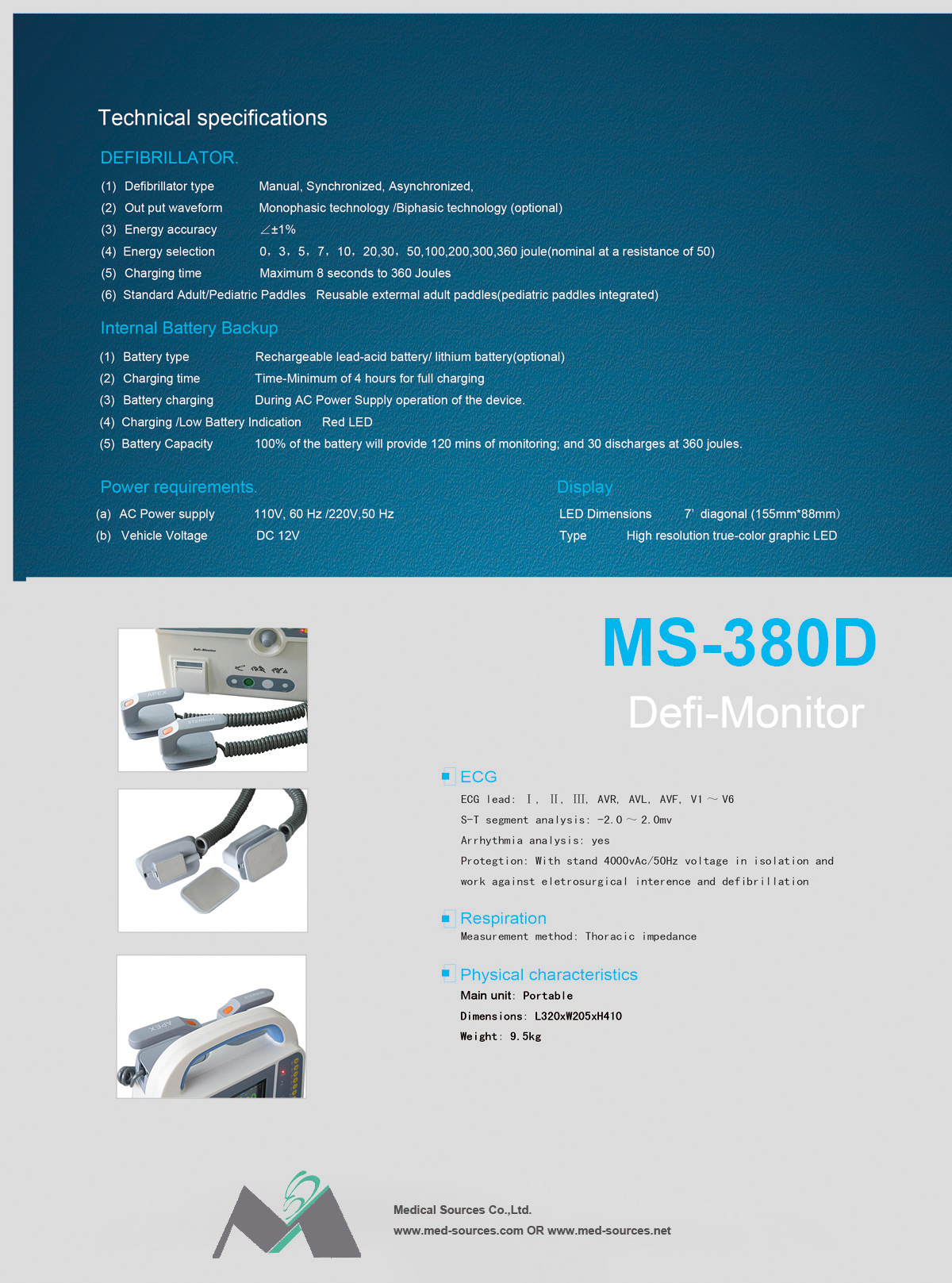

Technical specifications
Defibrillator
(1)Defibrillator type Manual, Synchronized, Asynchronized,
(2)Out put waveform Biphasic technology
(3)Energy accuracy ∠+1%
(4)Energy selection 0,3,5,7,10,20,30,50,100,200,300,360 joule(nominal at a resistance of 50)
(5)Charging time Maximum 8 seconds to 360 Joules
(6)Standard Adult/Pediatric Paddles Reusable external adult paddles(pediatric paddles integrated)
Power requirements.
(a)AC Power supply 110V, 60 Hz /220V,50 Hz
(b)Vehicle Voltage DC 12V
Internal Battery Backup
(1)Battery type Rechargeable lead-acid battery
(2)Charging time Time-Minimum of 4 hours for full charging
(3)Battery charging During AC Power Supply operation of the device.
(4)Charging /Low Battery Indication Red LED
(5)Battery Capacity 100% of the battery will provide 120 mins of monitoring; and 30 discharges at 360 joules.
Display
-LED Dimensions 7'diagonal {155mm*88mm} which is easily read from a distance.
-Type High resolution true-color graphic LED
-Resolution 480X234
- Provide cardioversion facilities with waveform annotated on the screen
- Display 4 seconds of ECG at 25mm/sec, ECG selectable from leads I, II, III when used with a 3-lead cable, and I, II, III aVL, aVR, aVF and V when used with a 5-lead cable.
- Display prompts, waveform settings, battery status, event summary and fault codes. Energy selected is displayed by push button under the screen.
ECG
ECG lead: I, II, III AVR, AVL, AVF, V1~V6, GND
S-T segment analysis: -2.0~2.0mv
Arrhythmia analysis: yes
Protection: With stand 4000vAc/50Hz voltage in isolation and work against electrosurgical knife and defibrillation
Respiration
Measurement method: Thoracic impedance
Standard parameter & configuration
ECG/ RESP/DEFIBRILLATOR
-Provide audible and visual alarms for heart rate violations, VF and VT.
-Provide a strip printer which annotates waveforms, events, time code
-Have a 5-lead patient cable as an option to a 3-lead cable.
-Supplied with external re-usable paddles and packs of paper rolls for the printer.
