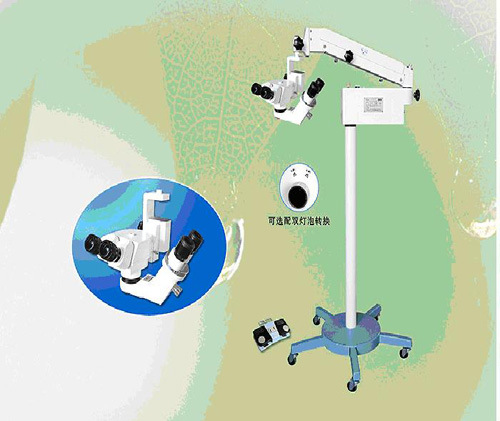

MS-400B Ophthalmic& Orthopedic Microscope
Application:
This model is developed mainly for the anastomosis of capillary and nerves in surgical micro-operations of ophthalmology,orthopedics, hand surgery, orthopedic surgery and gyneecology,
lt can also be used for experiments on animals, It can be widely used in surgical micro-operations and for experiments on animals,is a medical, optical instrument with excellent quality and a reasonable price.
Feature:
*Clear imageries strong stereoscopic visual sense.
*For two doctors to observe one light stream together.
*Hand-mirror provided for three persons to operate together.
*Wide visual angle Coaxial cold light source bright and clear in depth.
Optical Features:
| Large Objective Lens | Operation Distance(mm) | Magnification(X) | Field Visual(mm) |
| F'=200 | 192.74mm | 10X | 27.5 |
| F'=250 | 249.84mm | 8X | 34.4 |
| Assist Scope F'=200 | 192.74 | 4X | 52 |
