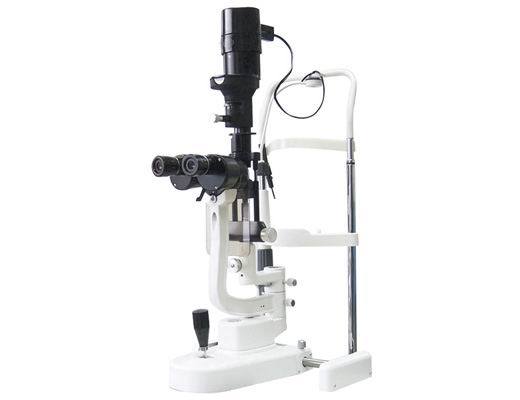

MS-560 Slit Lamp
This is a new product to fill the optical requirements, which is easy to operate and medium-priced.
Detailed profile
Characteristics:
1.Excellent optical performance and utility functions.
2.Main optical lens made of imported material ensures the clarity and brightness.
3.Optical lens are all moistureproof, mildewproof and anti-reflection.
Specifications:
| Microscope Type | Converging stereoscope |
| Magnifications | Two-step magnifications |
| Eyepiece | 10x |
| Magnification Ratio(Field of View) | 10x(φ18mm), 16x(φ14.5mm) |
| Range of Pupil Distance | 10x 55mm~82mm |
| Adjustment of Diopter | ±6D |
| Slit Width | 0mm~9mm adjustable(slit is round when slit width is 9mm) |
| Slit Height | 1mm~8mm adjustable |
| Aperture of Diameter | φ9mm, φ8mm, φ5mm, φ3mm, φ2mm, φ1mm, φ0.2mm |
| Slit Angle | 0°~180° adjustable |
| Filter | Heat absorption, grey, redfree, cobalt blue |
| Illumination Bulb | 12v30w halogen bulb |
| Maximal Illuminance | ≥220000 Lx |
| Packing | 720mm ´ 495mm x 480mm |
| Total Weight | 23Kg |
| Net Weight | 20Kg |
| Optional Accessories | Applanation Tonometer(type R);Measuring Eyepiece |
