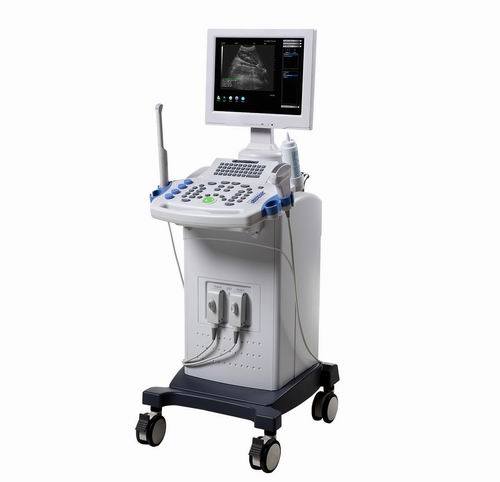

MS-6000 Fully Digital Ultrasound Scanner
Main Unit Parameters |
|
Platform | PC Control Platform based on WINDOWS system |
Scanning Model | Electronic Linear Array, Electronic Convex Array |
Image Storage | BMP, JPG, DCM, and tif are available; built-in hard disk≥160G |
Display Depth | 250mm |
Scanning Angle | ≥152º |
Image Processing | Edge enhancement, tissue harmonic, scanning line density, Gamma Correction, Histogram |
Pseudo-color | ≥ 10 types |
Image Enhancement | ≥7 types |
Focus Adjustment | Focus Number ≥4; focus span and focus position are adjustable |
Patient Records Management System | Add, Search, Revise and Report functions are available. |
External Ports | Video port, RS-232 Port, USB Port, DICOM3.0 Port, PS/2 Port and XGA Port |
Features
• Adopting Multiple technologies such as digital scan converter (DSC), digital beam forming (DBF) , real-time dynamic
aperture (RDA), dynamic receive apodization (DRA), dynamic receive focusing (DRF), dynamic frequency scan (DFS)
and so on
• Image optimization and enhancement, smoothing, frame correlation processing, pseudo-color ,Gamma Correction,
Real-time Zoom/Zoom to area
• Automatically report generating accords to image collection, diagnostic description and measurement projects.
• Diversified and Complete image-text medical records management function; Typical & upgradable medical records
import/export function; these two functions can satisfy needs of extended clinic applications.
