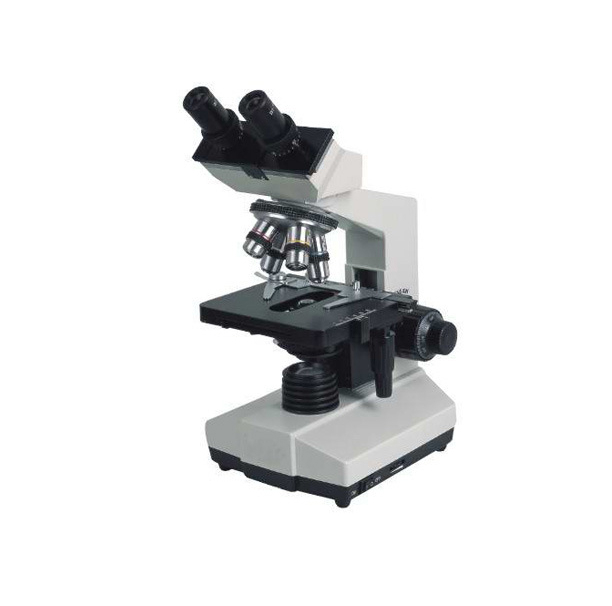

MS-701BN Biological Microscope
45mm DIN Achromatic Objective: 4X, 10X, 40X(S), 100X(S, Oil)
Wide Field Plane-Scope Eyepiece: WF10X, WF16X;
Total Magnification: 40X-1600X
Sliding Binocular Head, Interpupillary Distance: 55-75mm; 45º Inclined, 360º Rotatable
Double Layers Mechanical Stage: 140X155mm, Moving Range X-Y: 70X50mm
Ø2-Ø30mm Iris Diaphragm And Ø32 Filter ;
ABBE Condenser: N.A. 1.25
Coaxial Coarse And Fine Focusing Adjustable Mechanism: 25mm, Precision: 0.002mm
Built-in Adjustable Brightness Halogen Lamp 6V/20W
Net Weight/Set: 6.4kg;
Package: 1 Set/Carton 38X34X50cm;
Gross Weight/Carton: 11kg
