(MS-8100) Hospital Equipment Three Part 3 Diff Auto Blood Hematology Analyzer

Quantity:
Inquire Add to Basket

  • Shanghai, China

  • 1000PCS/Year

  • L/C, T/T, Western Union, Paypal, Money Gram

  • MS-8100

  • customized

  • China

  • 9018193010

  • Biological Diagnostics

  • Biochemistry Analyzer

  • CE, FDA, EEC, MSDS, ISO13485

  • Middle-aged and Old

  • 1 Piece in a Box

  • 390*460*; 400 mm

(MS-8100) Hospital Equipment Three Part 3 Diff Auto Blood Hematology Analyzer

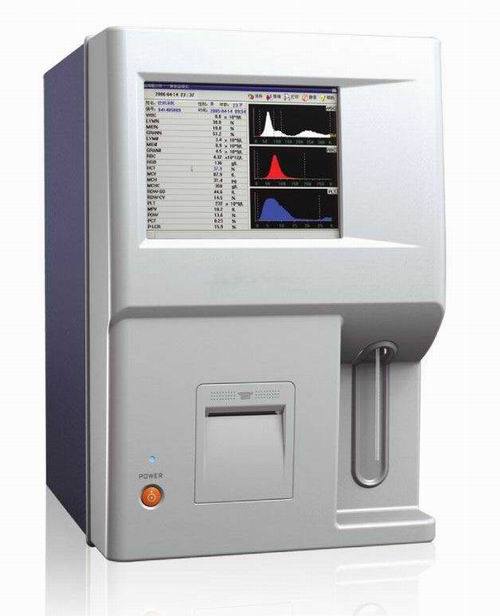

MS-8100 Hematology Analyzer
(MS-8100) Hospital Equipment Three Part 3 Diff Auto Blood Hematology Analyzer
(MS-8100) Hospital Equipment Three Part 3 Diff Auto Blood Hematology Analyzer
(MS-8100) Hospital Equipment Three Part 3 Diff Auto Blood Hematology Analyzer
(MS-8100) Hospital Equipment Three Part 3 Diff Auto Blood Hematology Analyzer
(MS-8100) Hospital Equipment Three Part 3 Diff Auto Blood Hematology Analyzer


Technical Specification
Parameters
WBC, Lymph, Mid, Gran, Lymph%, Mid%, Gran%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PDW, PCT, WBC Histogram, RBC Histogram, PLT Histogram, P-LCR.

Principles
1. Electrical resistance for counting and SFT method for hemoglobin .

Specification
1.23 parameters, with 3 part WBC differntial
2.Aperture Diameter 70μm
3.10 uL sampler volume
4.Memory for 30,000 results including histograms
5.Throughput : 35 samples/hour
6.Automatic and manual calibration
7.Automatic dilution when power on/off
8.High voltage cleaning after each measurement
9.QC method: X-B , L-J , SD, CV

Performance
Parameter Linearity range Precision
WBC 0.5~99.9×10 9 /L CV < 2.0%
RBC 0.2~ 9.99 × 10 12/L CV < 1.5%
HGB 1.0~299.9 g/L CV < 1.5%
MCV 40~200 fL CV < 0.5%
PLT 0~999×10 9/L CV < 4.0%

Carryover
1 WBC< 0.5% , RBC<0.5% , HGB<0.5% , PLT < 2%
Working mode
2 Single counting pathway+ Independent HGB detection system

Operating Environment
1 Temperature 15ºC~ 30ºC
2 Humidity 10% ~ 85%

Printout
1. Thermal recorder, printer
2. Optional external printer
Power Requirement
175-265V ~ 50/60HZ
Dimension
390×460×400 mm (W*D*H)
Net Weight
20 Kg
Optional
1 Printer
2. Bar code scanner
Consumption
1 Lyse
2 Diluent
3 Rinse
