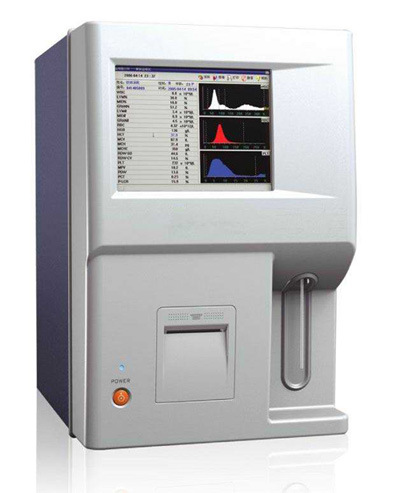

MS-8200 Hematology Analyzer
Technical Specification
Parameters
WBC, Lymph, Mid, Gran, Lymph%, Mid%, Gran%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PDW, PCT, WBC Histogram, RBC Histogram, PLT Histogram, P-LCR.
Principles
1 Electrical resistance for counting and SFT method for hemoglobin .
Specification
1. 23 parameters, with 3 part WBC differntial
2. Aperture Diameter 70μm
3. 10 uL sampler volume
4. Memory for 30,000 results including histograms
5. Throughput : 60 samples/hour
6. Automatic and manual calibration
7. Automatic dilution when power on/off
8. High voltage cleaning after each measurement
9. QC method: X-B , L-J , SD, CV
Performance
| Parameter | Linearity range | Precision |
| WBC | 0.5~99.9×10 9 /L | CV < 2.0% |
| RBC | 0.2~ 9.99 × 10 12/L | CV < 1.5% |
| HGB | 1.0~299.9 g/L | CV < 1.5% |
| MCV | 40~200 fL | CV < 0.5% |
| PLT | 0~999×10 9/L | CV < 4.0% |
Carryover
1. WBC< 0.5% , RBC<0.5% , HGB<0.5% , PLT < 2%
Working mode
1. Double counting pathway+ Independent HGB detection system
Operating Environment
1. Temperature 15°C~ 30°C
2. Humidity 10% ~ 85%
Printout
1. Thermal recorder, printer
2. Optional external printer
Power Requirement
175-265V ~ 50/60HZ
Dimension
390×460×400 mm (W*D*H)
Net Weight
25 Kg
Optional
1 Printer
2. Bar code scanner
Consumption
1 Lyse
2 Diluent
3 Rinse
