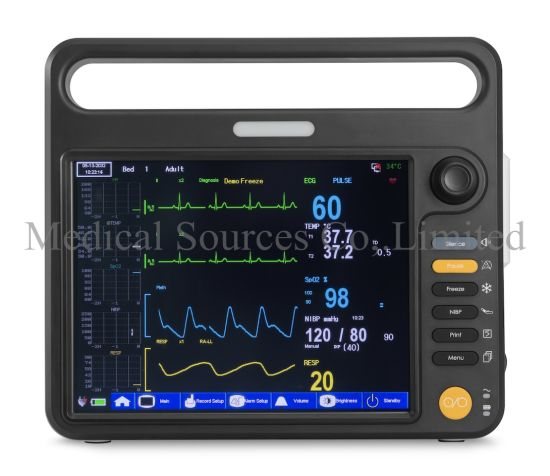

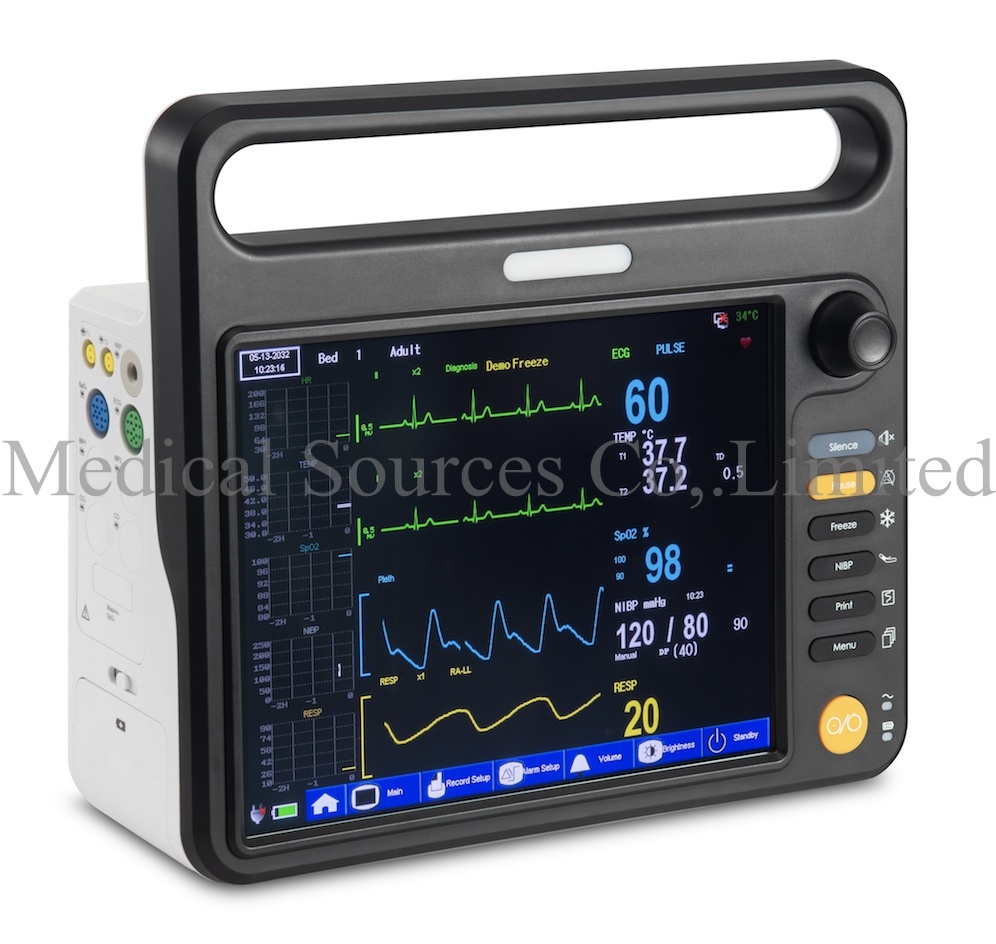

MS-8600 Multi-Parameter Patient Monitor
Features:
12″ color TFT-LCD touch screen
Suitable for adult, pediatric and neonatal patient
Audible and visual alarms with adjustable alarm ranges
Powerful data management and storage capacity
ECG
Lead type:5-lead
Input: RA; LA; RL; LL; V
Sweep speed: 12.5mm/s, 25mm/s, 50mm/s
Accuracy: ±1bpm or ±1%, whichever is greater
Protection: Withstand 4000VAC/50Hz voltage in isolation against electrosurgical and defibrillation
S-T detection: YES, Arrhythmia analysis: YES
Alarm: YES, audible and visual alarm, alarm events recallable
NIBP
Method: Oscillometry
Operation modes: Manual/Automatic/STAT
Measurement unit: mmHg/KPa selectable
Measurement types: Systolic, Diastolic, Mean
Over-pressure protection: YES
SpO2
Measurement range: 0-100%
Accuracy: ±2digit (70~100%);
0~69% unspecified
Respiration
Method: RA-LL impedance
Pediatric/Neonatal: 6-150rpm
Alarm range: Adult: 6-120rpm
Pediatric/Neonatal: 6-150rpm
Apnea alarm: YES
Temperature
Resolution: 0.1ºC
Channel: Dual-channel
Alarm range: 0-50ºC

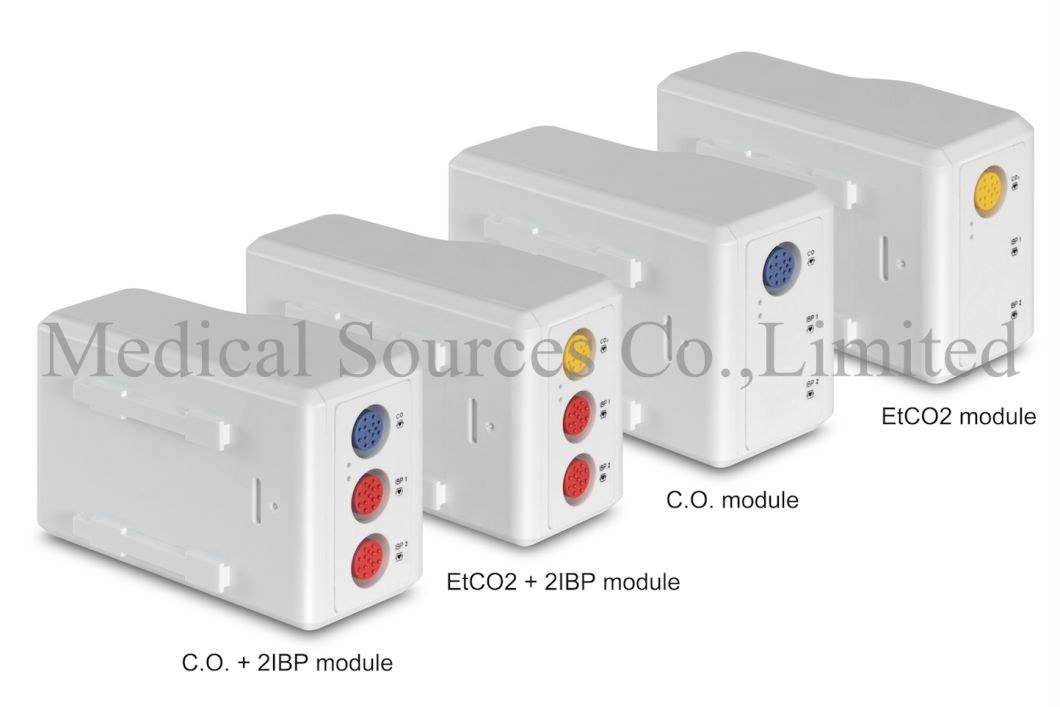

Option:
EtCO2
Measurement Mode: Side-stream or mainstream
Measurement range: EtCO2: 0-99mmHg
Accuracy: CO2 concentration
Apnea alarm: YES
IBP
Channel: 2 channels
Pressure transducer: Sensitivity: 5( mV/V/mmHg)
Transducer sites: ART, PA, CVP, RAP, LAP, ICP
Alarm range: -10~300mmHg
Standard Configuration:
ECG, NIBP, SpO2, RESP,2-TEMP,Network
Optional:
2-IBP,ETCO2,Thermal Recorder
