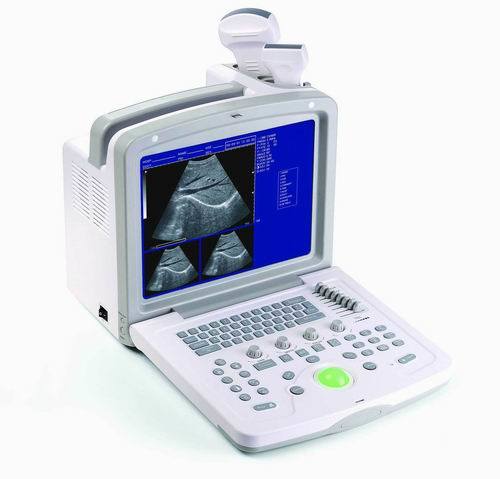

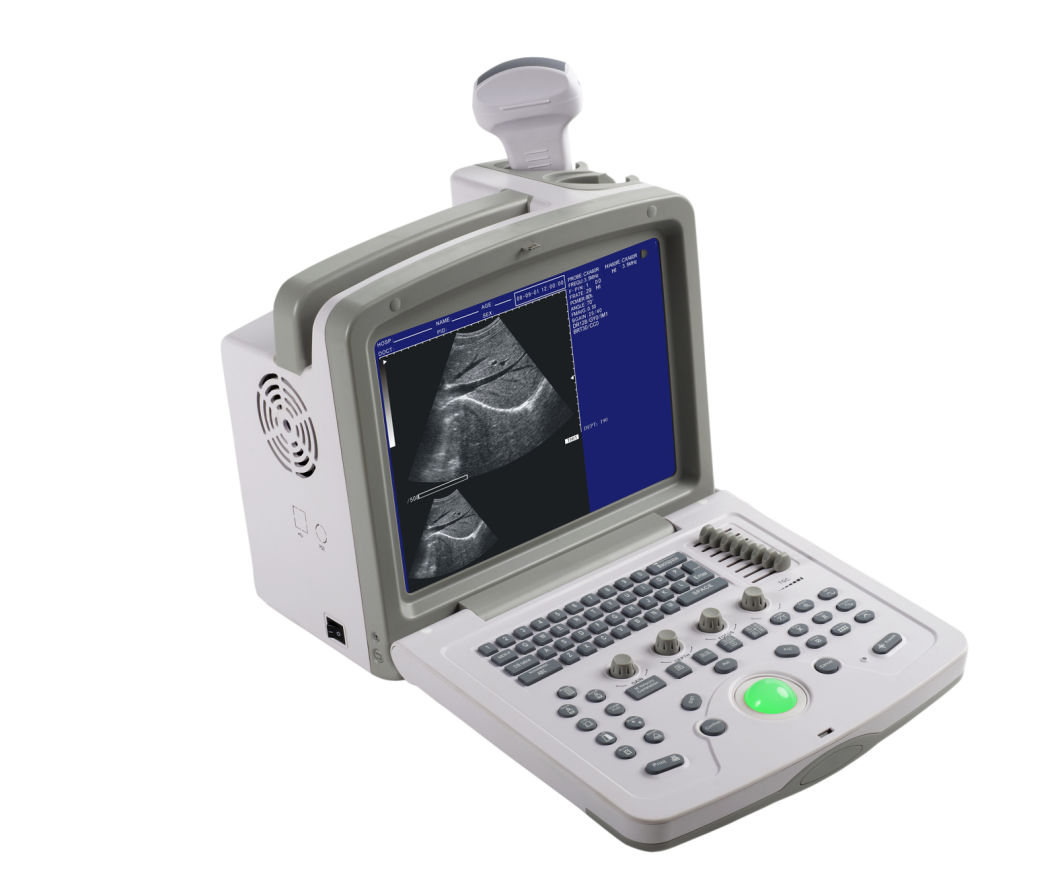

MS-9000AB Fully Digital Portable Ultrasound Scanner

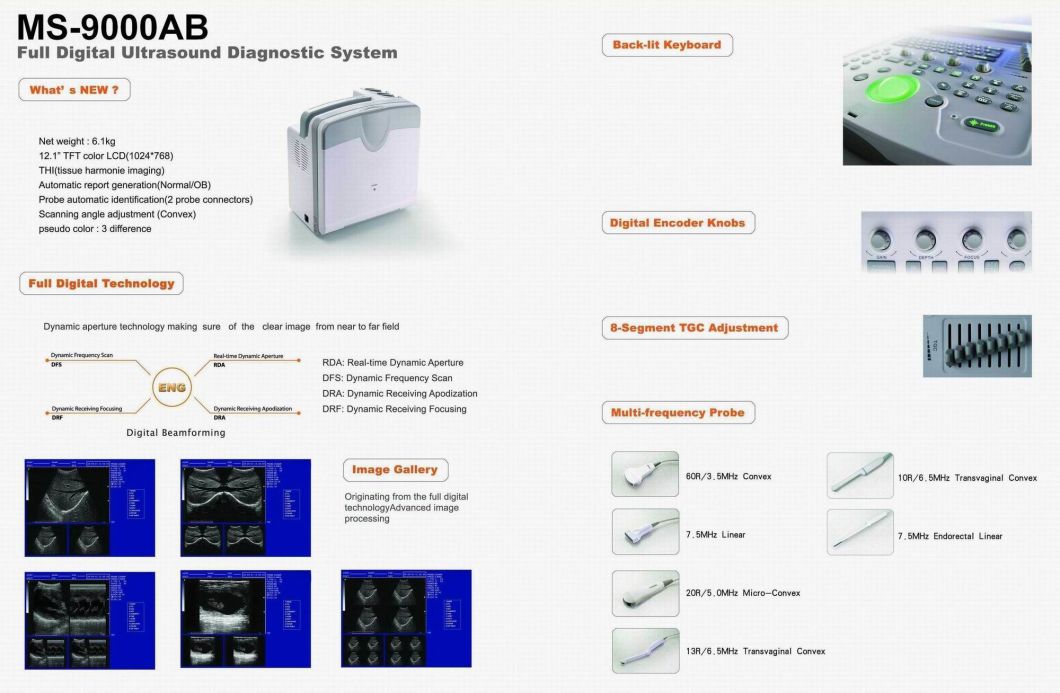

Main Features:
Net weight : 6.1kg
12.1" TFT color LCD(1024*768)
THI(tissue harmonie imaging)
Automatic report generation(Normal/OB)
Probe automatic identification(2 probe connectors)
Scanning angle adjustment (Convex)
pseudo color : 3 difference

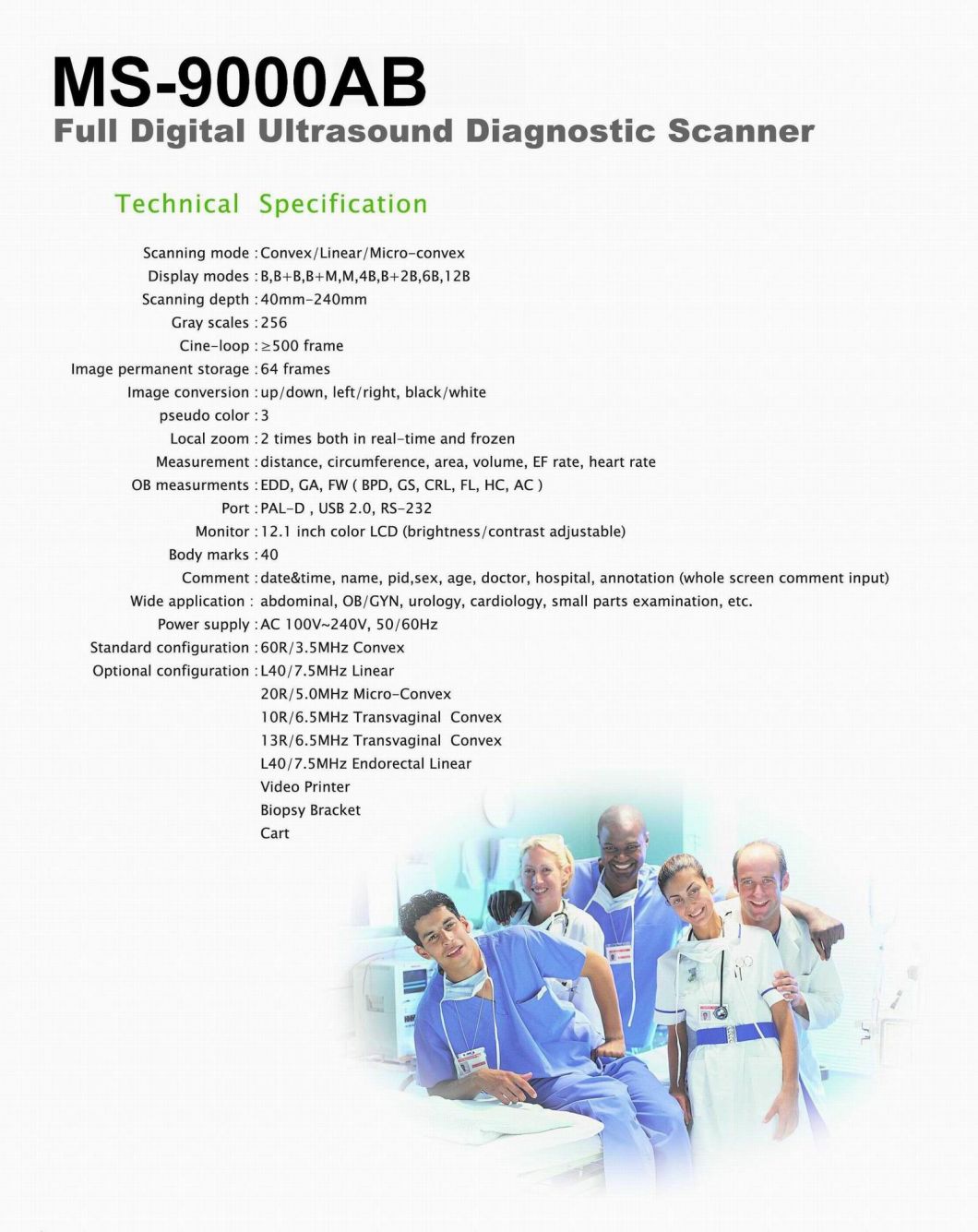

Technical Specification:
Scanning mode :Convex/Linear/Micro-convex
Display modes :B,B+B,B+M,M,4B,B+2B,6B,12B
Scanning depth :40mm-240mm
Gray scales :256
Cine-loop :≥500 frame
Image permanent storage :64 frames
Image conversion :up/down, left/right, black/white
pseudo color :3
Local zoom :2 times both in real-time and frozen
Measurement :distance, circumference, area, volume, EF rate, heart rate
OB measurments :EDD, GA, FW ( BPD, GS, CRL, FL, HC, AC )
Port :PAL-D , USB 2.0, RS-232
Monitor :12.1 inch color LCD (brightness/contrast adjustable)
Body marks :40
Comment :date&time, name, pid,sex, age, doctor, hospital, annotation (whole screen comment input)
Wide application :abdominal, OB/GYN, urology, cardiology, small parts examination, etc.
Power supply :AC 100V~240V, 50/60Hz
Standard configuration:
3.5MHz Convex
Options:
7.5MHz Linear
5.0MHz Micro-Convex
6.5MHz Transvaginal Convex
6.5MHz Transvaginal Convex
7.5MHz Endorectal Linear
Video Printer
Biopsy Bracket
Cart
