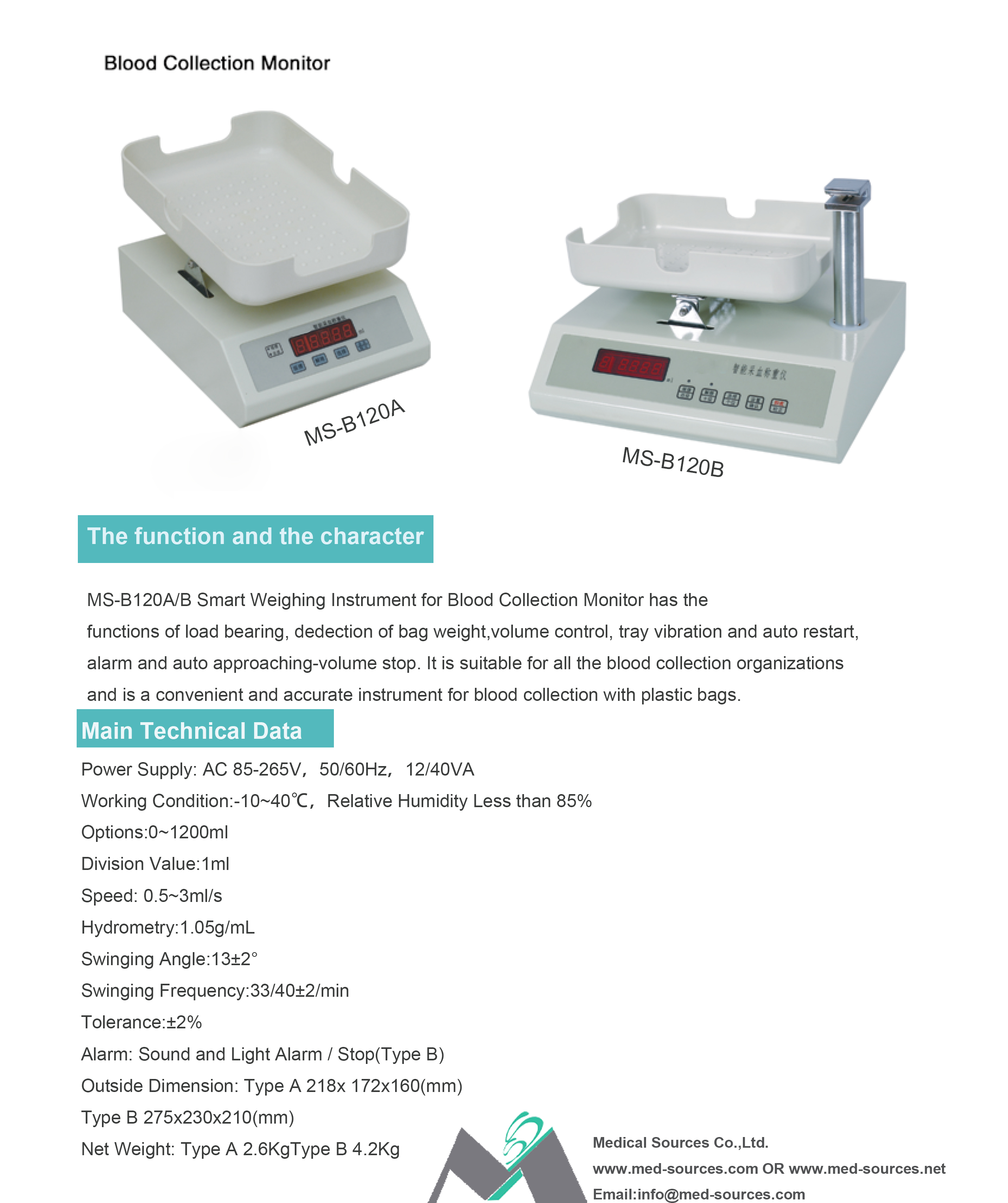

MS-B120A/B Medical Blood Collection Weighing Monitor
MS-B120A/B Smart Weighing Instrument for Blood Collection Monitor has the functions of load bearing, dedection of bag weight,volume control, tray vibration and auto restart, alarm and auto approaching-volume stop. It is suitable for all the blood collection organizations and is a convenient and accurate instrument for blood collection with plastic bags.
Main Technical Specification
Type Specification | MS-12A | MS-12B |
Working Condition | -10~40℃,Relative Humidity Less than 85% |
Power Supply | AC220V,50/60Hz,12VA | AC220V,50/60Hz,40VA |
Fuses | F1AL250V, Ø5×20mm |
Options (ml) | Shift 0 | No maximum weight |
Shift 1 | 0~100 |
Shift 2 | 0~200 |
Shift 3 | 0~300 |
Shift 4 | 0~400 |
Shifts 5~9 | Self-set Weight | Self-set Weight |
Division Value(mL) | 1 |
Hydrometry (g/mL) | 1.05 |
Swinging Angle | 13± 2° |
Swinging Frequency (times/min.) | 33/40± 2 |
Tolerance | ±2% |
Alarm and Stop | Sound and Light Alarm | Alarm and Stop |
Suitable Stop Tube | —— | Outside diameter: Ø3~Ø6mm |
Stop Thrust (N) | —— |
|
Outside Dimension(mm) | 218×165×160 | 275×230×210 |
Weight (kg) | 2.6 | 4.2
|
