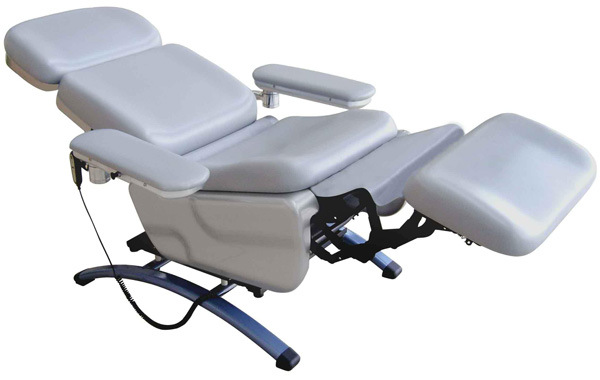

Model: MS-B1400D Blood Collection Chair
One motor controls back, leg,seat sections. Head board up and down, arm board move and swing operate by manual. Leg section can be manually turned up to work as foot support.
Technical Parameters:
Chair dimension: 1970 mm (curve length) x 560mm
Head section turn: -15°-25°
Back section lift: 25°- 55°(Back section can be adjust to level by manual)
Arm board swing out: 0 -45°
Arm board height adjustment: 100mm
Arm board slide: 100mm
Arm board declining angle adjustment: -15°- 10°
Arm board dimension: 450×160 mm
Leg section turn: -5° - -90°
Center of gravity move forward at bed position: 190 mm
Arm board concave radian: R108
Optional Accessory:
Multimedia
Package Details: 135*81*140(cm) Total:1.53M3 G.W. 112kg N.W. 67kg
