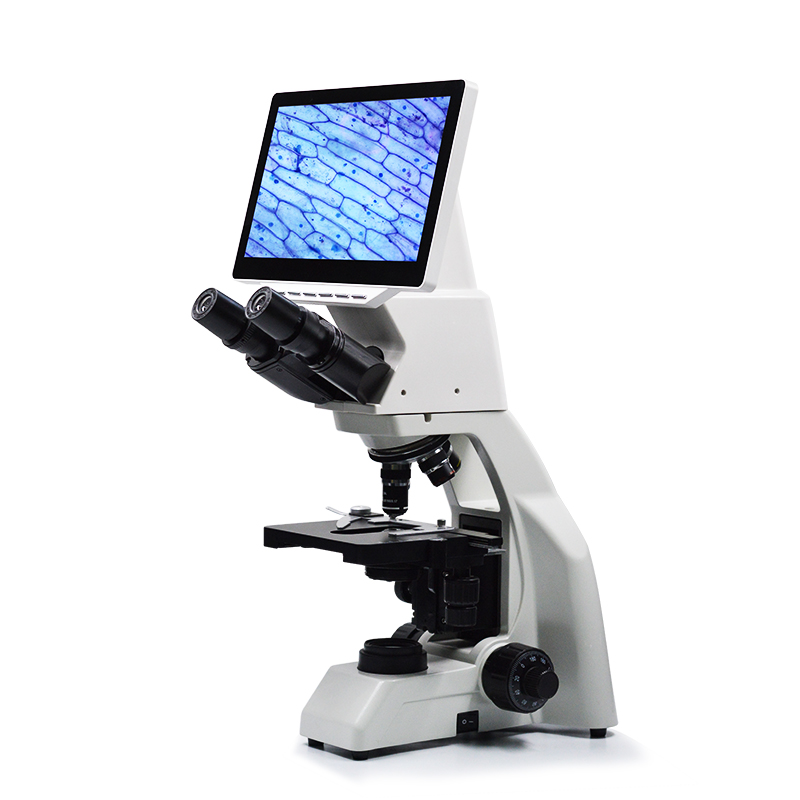

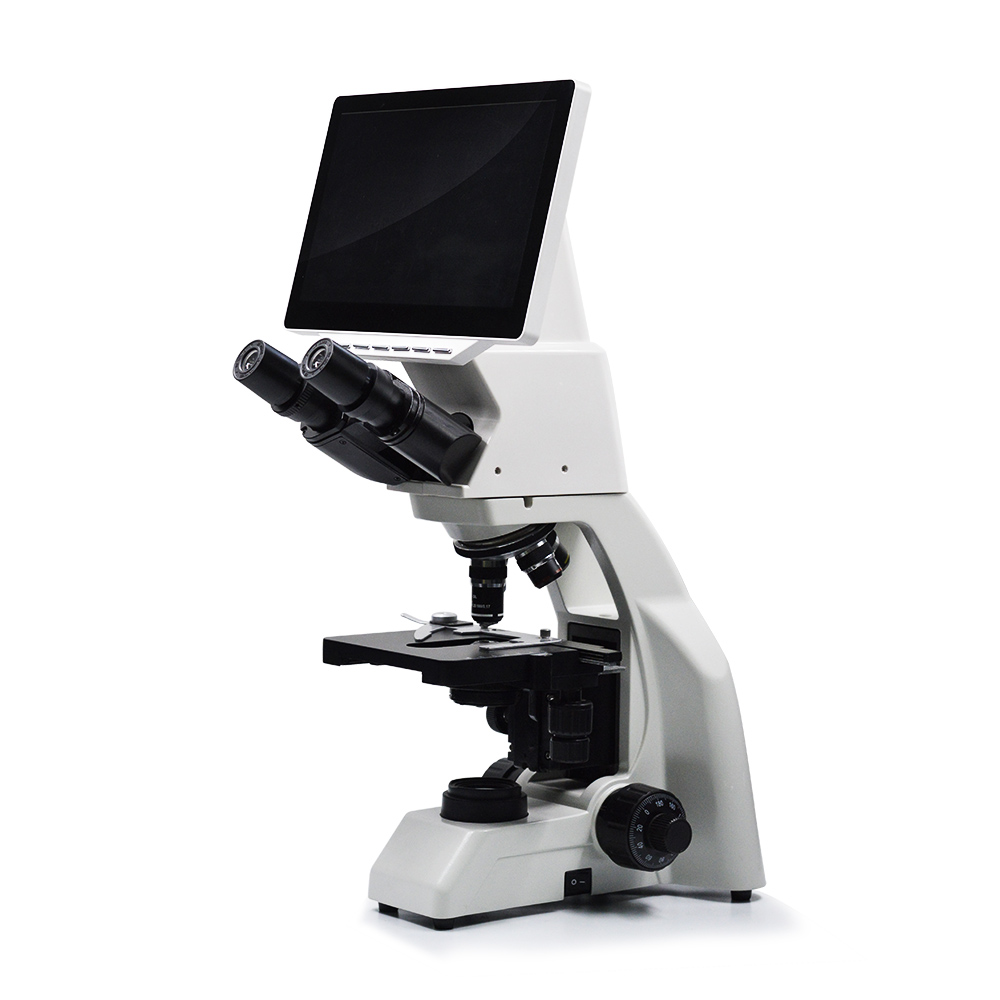

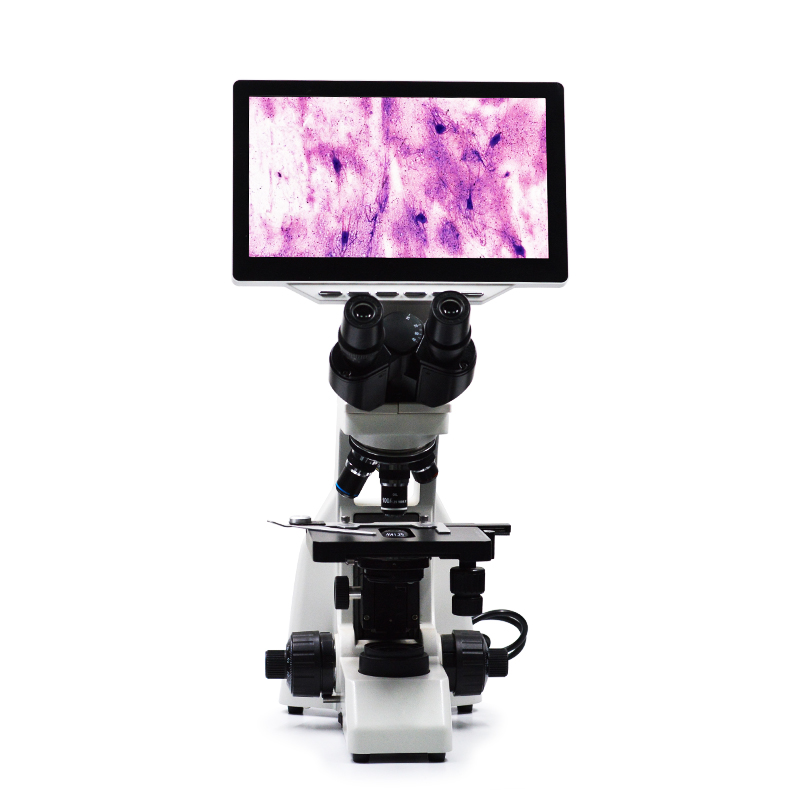

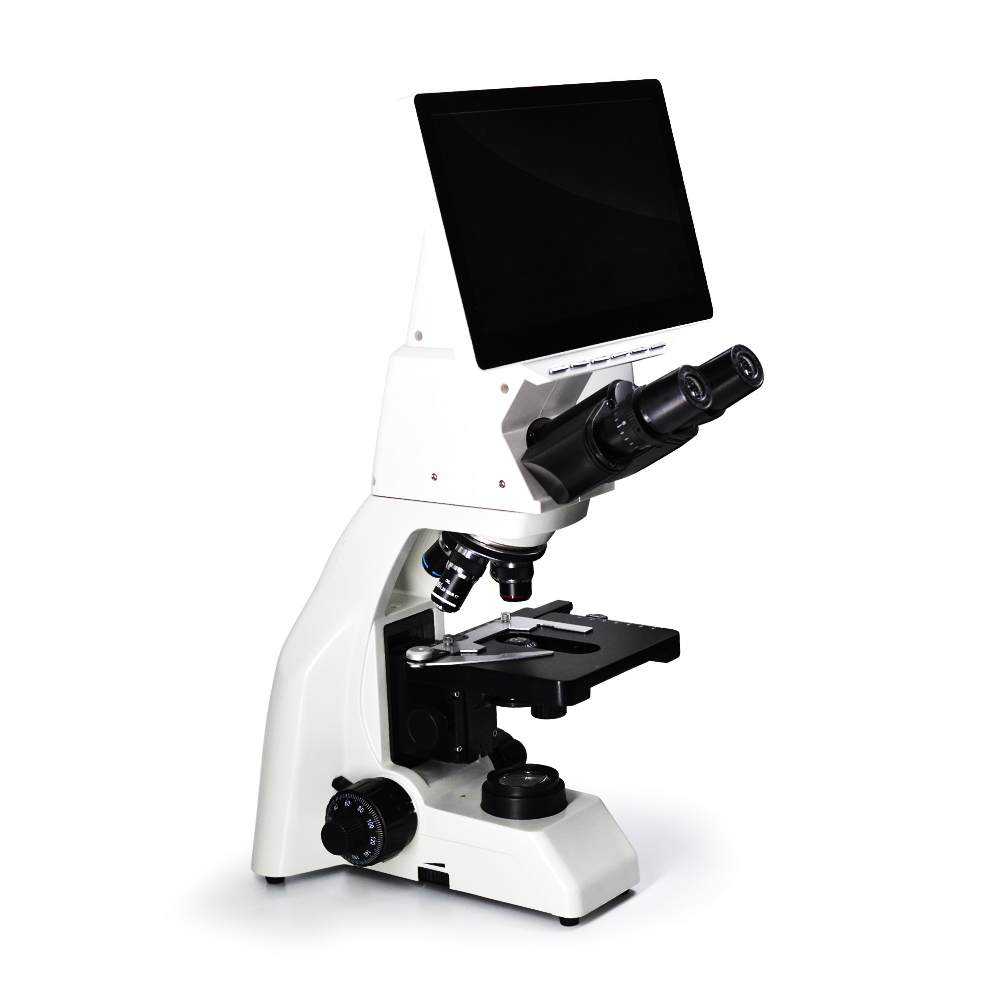

MS-B1600 Video Digital Microscope
Description
Series：MS-B1600A MS-B1600B MS-B1600C is an integrated biological microscope . It's widely used in the fields of biology, bacteriology, histology, medicinal chemistry and so on. It can be used for clinical trials in medical treatment, and can be used for teaching in school laboratories. It will reduce labor intensity and improve work efficiency.
Features
1. Full HD Display: 10.6" HD LCD screen;
2. Full HD Camera: The highest images , HD video with memory card to store inspection results anytime ,no need to connect to PC;
3. HDMI HD Output, freely connect to big monitor to anaysis;
4. Wireless Connection:Download pictures or videos from the APP to share or process later data;
5. Multiple Measuring Functions: Crosshair, reticle, degree scale, etc(Customizable);
6. Longer Life Expectancy :LED illumination with longer life expectancy.
Model | MS-B1600A | MS-B1600B | MS-B1600C |
LCD Screen | Size | 10.6 Inches IPS | · | · | · |
Resolution | 1366*768 | · | · | · |
Optical Parameter | Optical System | Finite Optical System | · |
|
|
Infinite Optical System |
| · | · |
Achromatic Objective | 4× N.A=0.1 WD=18 | · |
|
|
10× N.A=0.25 WD=7 | · |
|
|
40× N.A=0.65 WD=0.53 | · |
|
|
100× N.A=1.25 WD=0.13 | · |
|
|
Infinite Semi-Plan
Achromatic Objective | 4× N.A=0.1 WD=16.8 |
| · | · |
10× N.A=0.25 WD=5.8 |
| · | · |
40× N.A=0.65 WD=0.43 |
| · | · |
100× N.A=1.25 WD=0.13 |
| · | · |
Viewing Head | Seidentopf Binocular Viewing Head Inclined at 30°,Interpupillary 47-78mm | · | · | · |
Eyepiece | WF10×/18 | · |
|
|
WF10×/20 |
| · | · |
Focusing System | Coaxial Coarse and Fine Adjustment,Fine Division 0.002mm，Moving Range 25mm | · | · | · |
Nosepiece | Backward Quadruple Nosepiece | · | · | · |
Stage | Double Layers Mechanical Stage 140×140mm，Moving Range75×50mm | · |
|
|
Rackless double Layers Mechanical Stage 150×139mm，Moving Range75×52mm |
| · | · |
Condenser | NA1.25 Abbe Condenser | · | · | · |
Illumination | S-LED Illumination | · | · | · |
Digital parameters | Photo Resolution | 4592*3072 | · | · | · |
Camera Pixel | 1200w | · | · | · |
Video Resolution | 1080p/60fps | · | · | · |
Magnification | 100×--2500× | · | · | · |
Storage | SD Card | · | · | · |
Data Output | USB2.0/HDMI |
|
| · |
Wireless Connection | Yes | o | o | o |
Measurement & Position | Yes |
|
| o |
Function | Automatic Exposure, Exposure Offset, Automatic White Balance,Multiple Measuring Functions ,Video Recording, Local Storage | · | · | · |
External Interface | Projector，Monitor，PC |
|
| · |
Optional | Dark Field Condenser | Dry，Oil | o | o | o |
Polarization Set |
| o | o | o |
Phase Contrast Kit |
| o | o | o |
SD Card | SD Card， WiFi SD Card | o | o | o |
Boot Logo |
| o | o | o |
Measurement software |
|
|
| o |
Supply voltage | AC110--220V | · | · | · |
