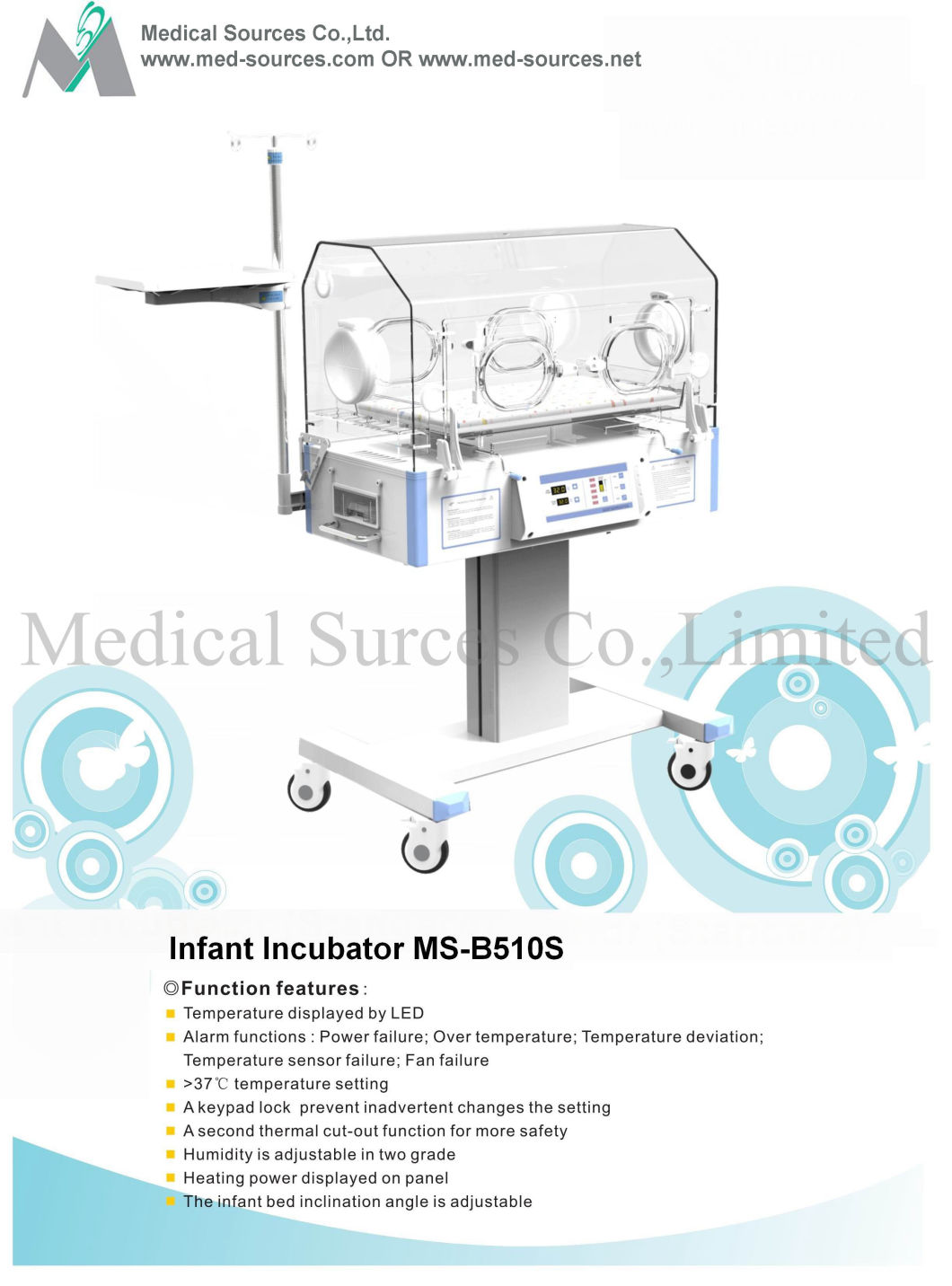

(MS-B510S) Infant Intensive Care Baby Incubator Transport Infant Incubator

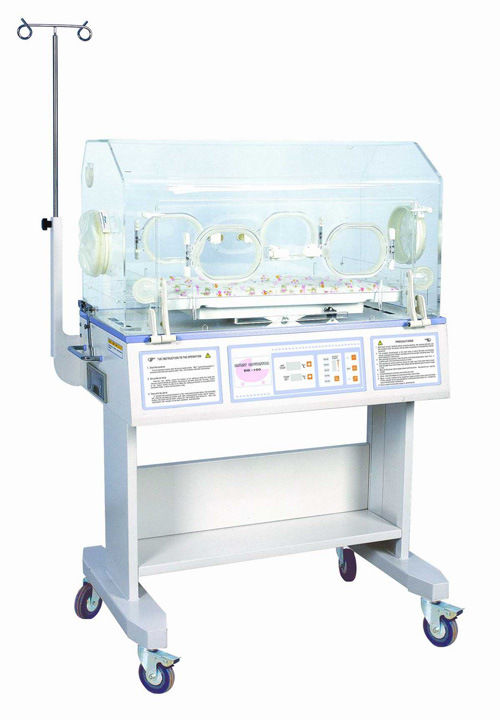

MS-B510S Infant incubator



Function features:
1. Microprocessor based servo controlled temperature system
2. Temperature displayed by LED
3. Alarm functions:
Power failure;
Over temperature;
Temperature deviation;
Temperature sensor failure;
Fan failure;
4. >37°C temperature setting
5. A keypad lock prevent inadvertent changes the setting
6. A second thermal cut-off function for more safety
7. Humidity is adjustable in two grade
8. Heating power displayed on panel
9. The infant bed inclination angle is adjustable
10 Trough for pulling and pushing ,which is convenient to add water and wash
11 Fan with low noise and long life-span
12. Temperature deviation and over temperature could be amended in front panel directly
13. Slience/reset button for alarms
14. six operating windows,two sides access operating windows can be swiveled
15. Support bracket
16. Heater is electrically cut-out if air temperature inside incubator exceed 40°C

Standard configuration
Main body(including the transparent hood,
control system,infant bed,water trough),I.V.pole,
mattress, support bracket, castors.

Optional parts:
Phototherapy up side unit;
phototherapy from up and down sides;
RS232(485)conncector;Tray/pole;
Infant bed pulled from side door;
Infant bed pulled from side and front door;
Double wall hood.

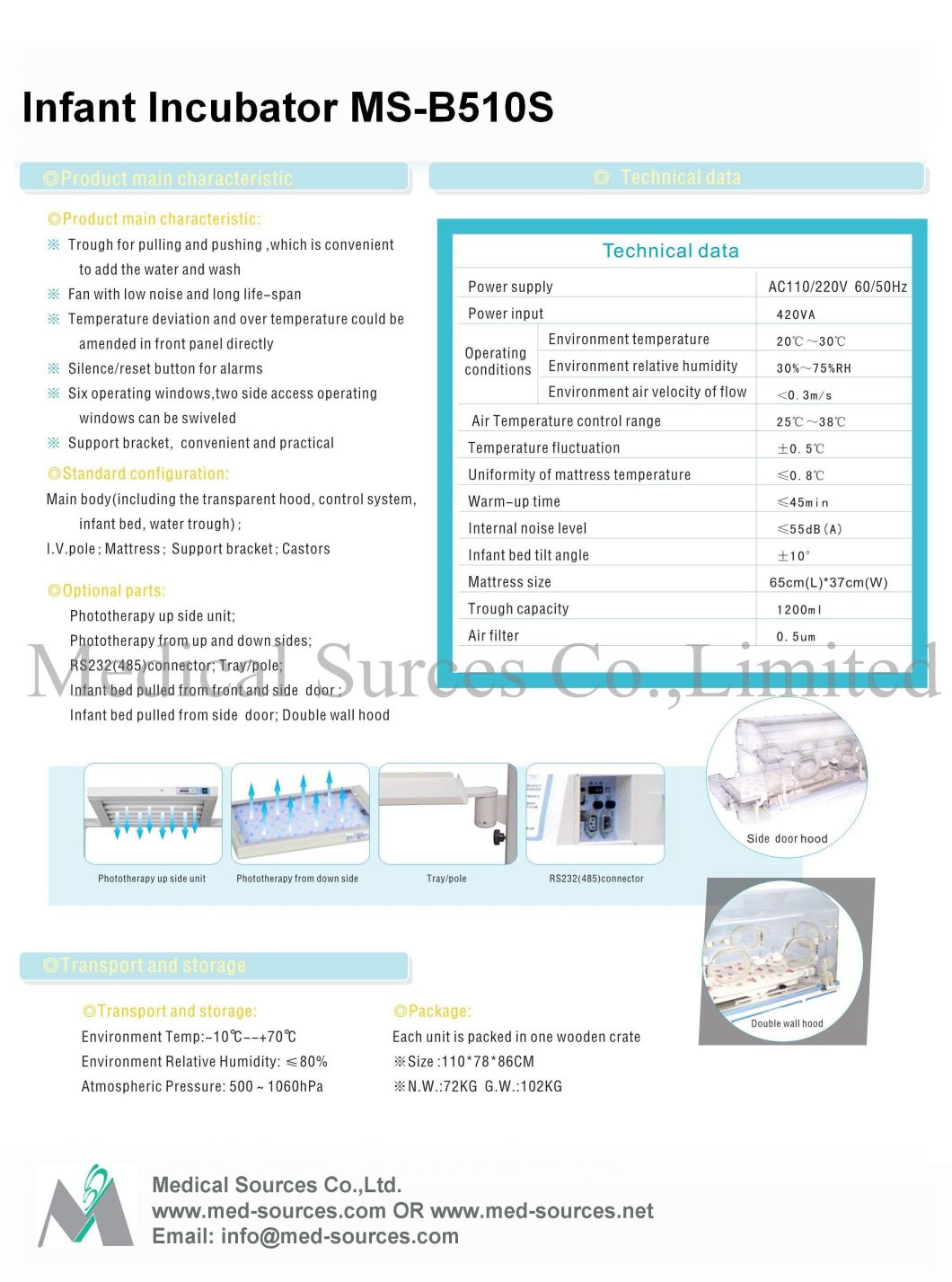

Technical data:
Power supply : AC110/220V 60/50Hz
Power input : ≤420VA

Optional parts:
1. Environment temperature: 20°C~30°C
2. Environment relative humidity: 30%~75%RH
3. Environment air velocity of flow: <0.3m/s
4. Air Temperature control range:25°C~38°C
5. Temperature fluctuation: +0.5°C
6. Uniformity of mattress temperature: ≤0.8°C
7. Humidity accuracy: ≤10%RH
8. Warm-up time: ≤45min
9. Internal noise level: ≤55dB
10 Infant bed tilt angle : +10º
11. Mattress size: 65cm(L)×37cm(W)
12. Trough capacity: 1200ml
13. Air filter: 0.5um

Package:
Each unit is packed in one wooden crate:
1. Size :110×78×86cm
2. N.W.:72Kg G.W.:102Kg

Transport and storage:
Environment Temp:-40°C --+55°C
Environment Relative Humidity: ≤95%
Atmospheric Pressure: 500~1060Hpa
