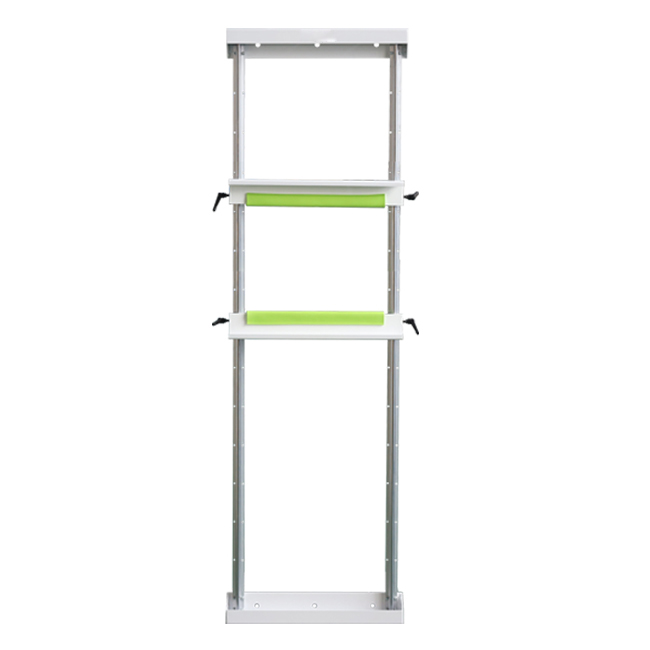

MS-BS170W Wall Mounted Bucky Stand
Properties: Medical X-ray Equipments & Accessories
Model Number: MS-BS170W
Place of Origin: Shandong, China (Mainland)
film sending method: frontal
Minimum travel: 1000mm
cassette container size: free for 14*17, 17*17 or DR
dense grid: 40Lp/cm
Grid Ratio: 10:1
Focus: 180cm
Overall height: 1500mm (accept customized height max. 1800mm)
Customization: available
Certificate: ISO9001 ISO13485

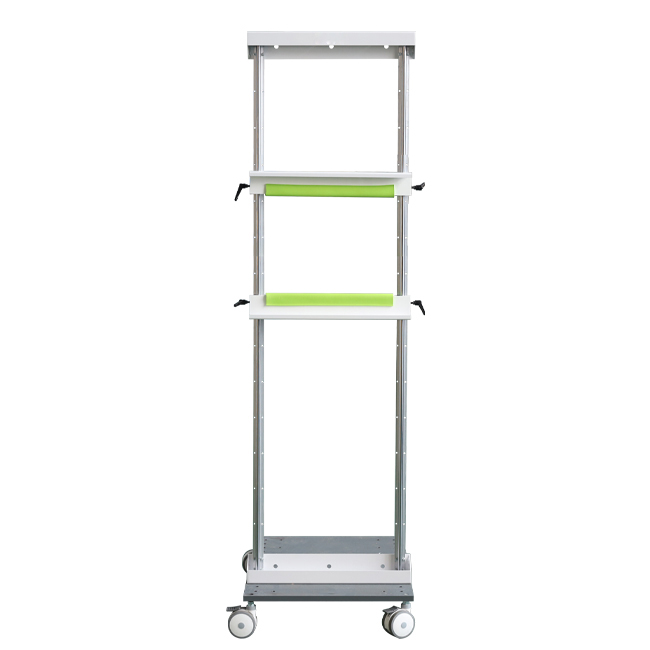

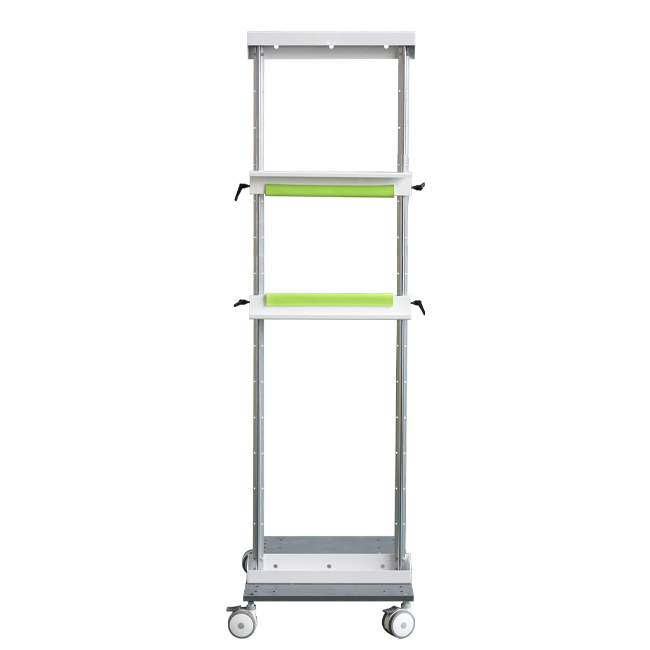

Optional mobile base can be used as a mobile bucky stand
Structure:
The device consists of a bucky tray set, a pair of track and a balance device.
Applicable to different sizes of normal x ray cassettes, CR cassette and DR flat panel detector.
Specification:
1. Overall height 1500mm (accept customized height max. 1800mm)
2. Width: 455mm;
3. Minimum travel: 1000mm;
4. Max bucky size: free size;
5. Install: mounted on the wall (suggest 500mm above floor)
HighLight
1. Simplified structure, utilize minimum space;
2. Easy to install, simple operation, easy to disassemble and carry;
3. Small size and light weight, save transportation cost;
4. Unique L-shaped rotary handle locking, easy for lifting the bucky;
5. Easy to focus the center;
6. 35mm-deep bucky slot, suitable for different size of cassettes, CR cassette and flat panel detector.
