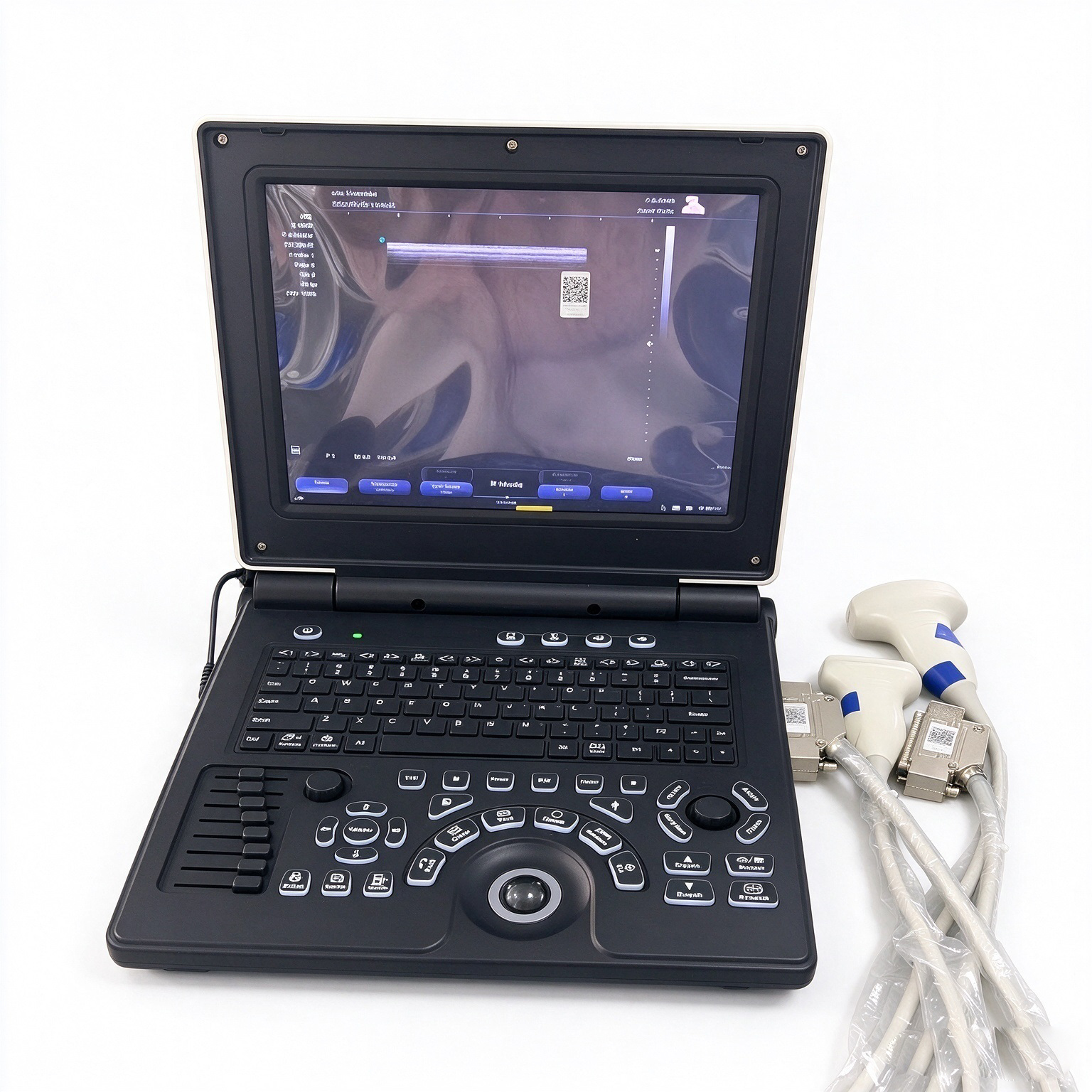

MS-C2500 Laptop Color Doppler Ultrasonic Diagnostic System
The MS-C2500 Portable Laptop Color Doppler Ultrasound Machine is a professional medical imaging solution designed for hospitals, clinics, diagnostic centers, and mobile healthcare. With a lightweight laptop design and a 12.1-inch LCD display, this system offers portability, reliability, and advanced imaging performance. Running on Windows 7 OS with a backlit keyboard and powered by a 3200mAh rechargeable lithium battery, it ensures long-lasting use in both clinical and field environments.
The MS-C2500 provides multiple ultrasound modes, including B, B/B, 4B, B+M, CFM, B+CFM, PDI, B+PDI, and PW Doppler, supporting a wide range of diagnostic needs. Its advanced Tissue Harmonic Imaging (THI), edge enhancement, gamma correction, and frame averaging deliver high-resolution, clear images. With a penetration depth of 1-400 mm and an adjustable dynamic range of 80-280 dB, this system adapts to various clinical applications.
Applications include obstetrics and gynecology (OB/GYN), pediatrics, urology, small organ scanning, and cardiac imaging. It also features automatic IMT measurement, 15 pseudo color modes, biopsy guidance, and pre-set scanning parameters, improving efficiency and accuracy. A built-in 120 GB solid-state drive ensures secure data storage, while the editable reporting page simplifies patient record management.

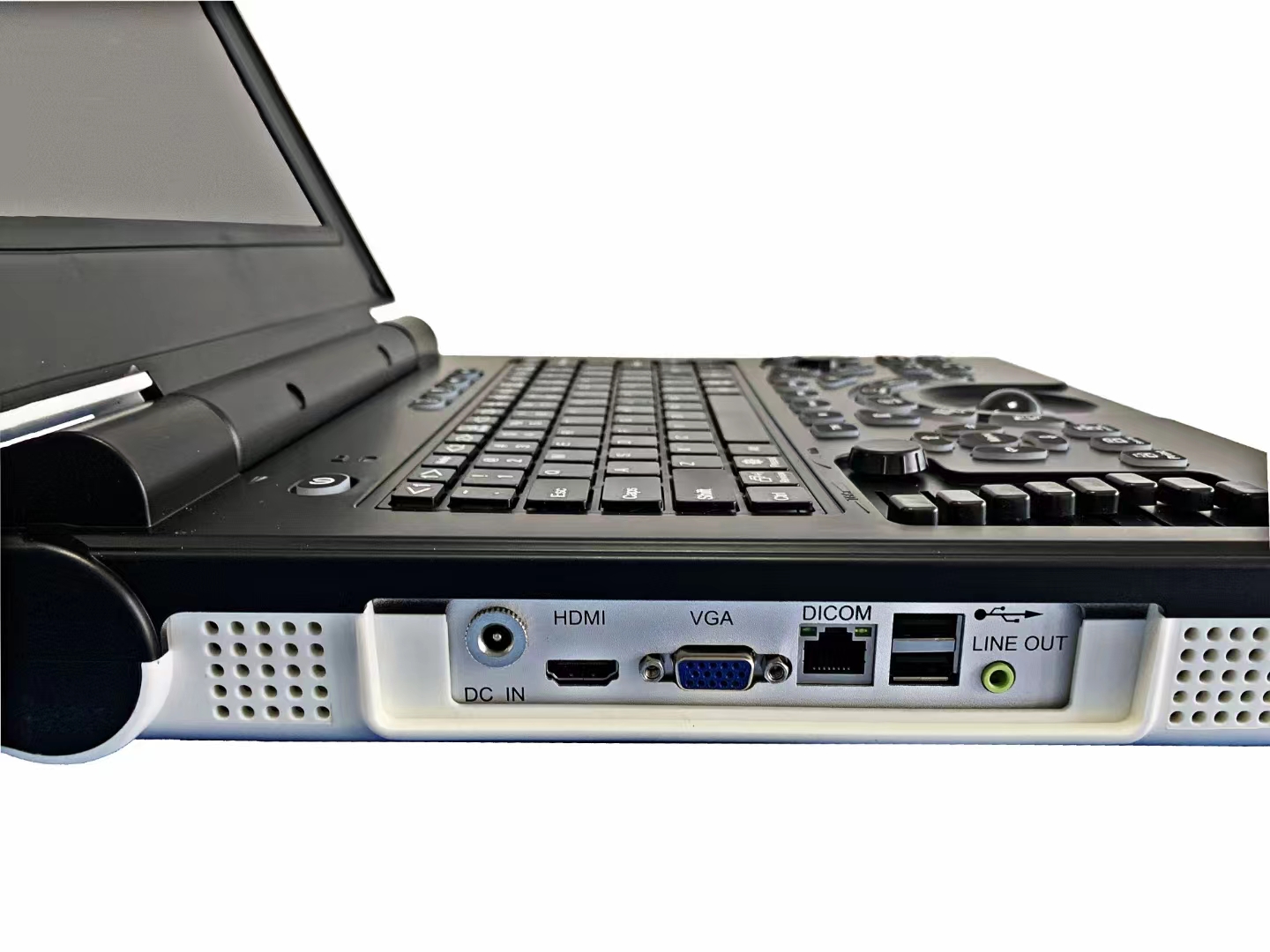

The MS-C2500 supports multiple interfaces: HDMI, VGA, USB, Line Out, and DICOM, with two active probe connectors. Optional probes include convex, linear, micro-convex, and transvaginal, covering a frequency range of 2-12 MHz. Combined with dynamic electronic focusing and 8-segment TGC gain control, it delivers stable and optimized imaging.
As a reliable and affordable choice, the MS-C2500 Laptop Color Doppler Ultrasound System is widely used in global healthcare markets, trusted by doctors, distributors, and OEM/ODM partners.
