Mode | CBCT,Panoramic,cephla, TMJ
|
CBCT Detector
| Amorphous silicon detector/ CMOS
|
Grey scale
| 16bit
|
Tubevoltage
| 70~90Kv
|
Tube current
| 4mA~10mA
|
Focus
| 0.5mm
|
Patient position | stand up, face to face
|
Scanning time
| CBCT 15s panoramic 17s Cephla 0.7s/12s TMJ 20s
|
Reconstruction
| <60s
|

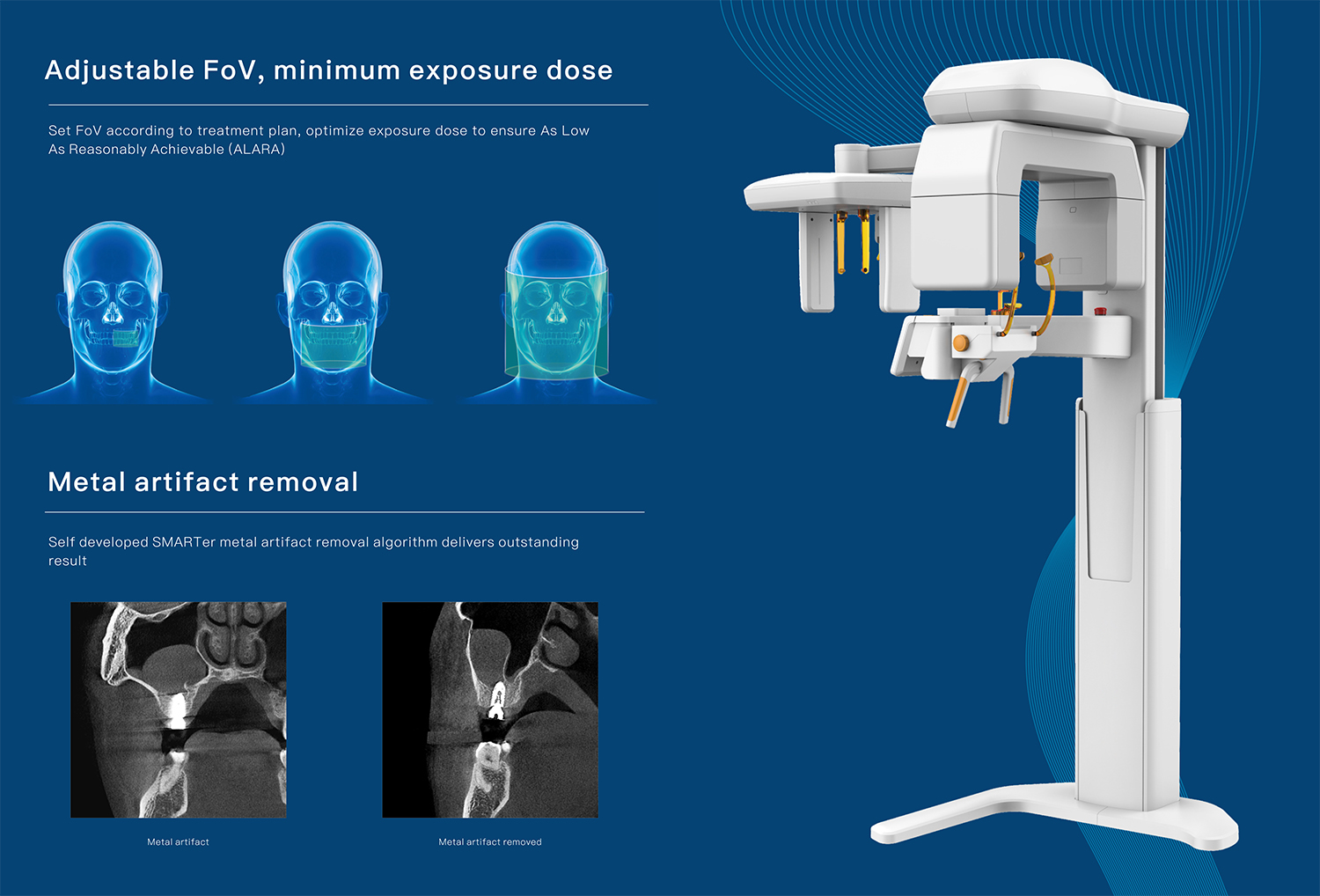

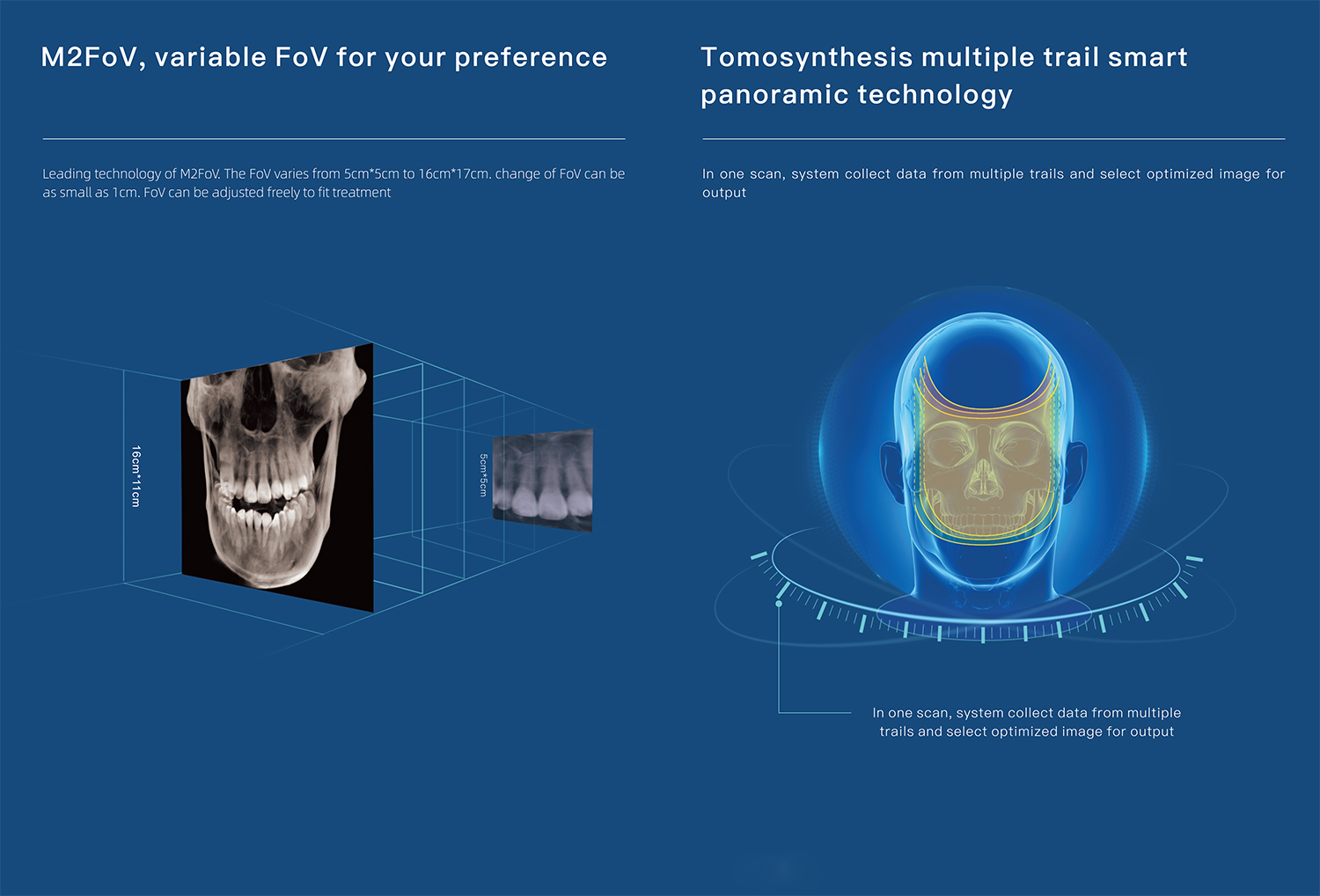

FoV
| 15cm*10cm(5*5～15*10adjustable) 16cm*11cm(5*5～16*11 adjustable) 16cm*17cm(5*5～16*11adjustable,16*17)
|
Voxel
| 0.25mm, 0.2mm, 0.1 mm, 0.075mm
|

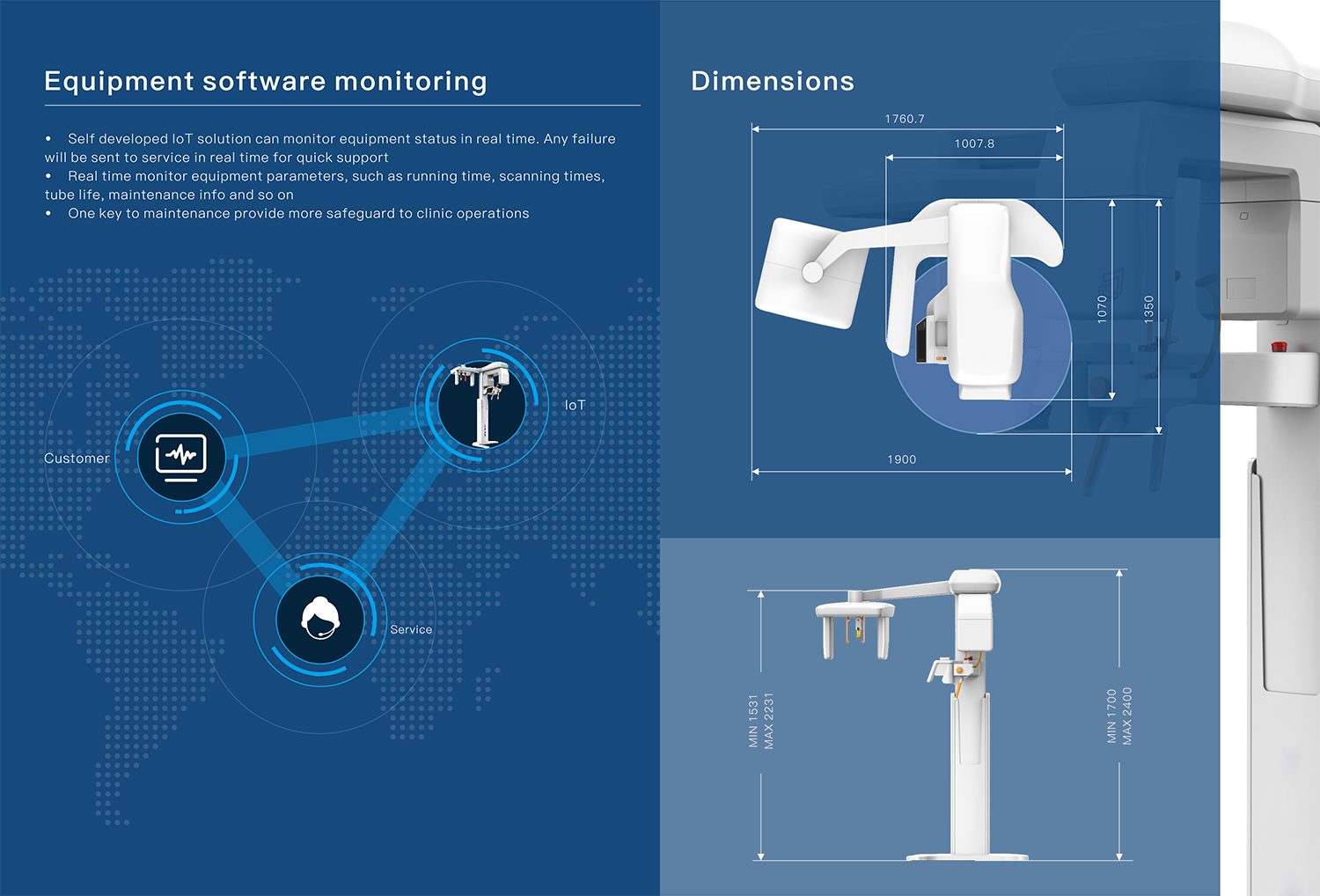

Dimensions
| 1900mm (L) *1 350mm (W) *1 700～ 2400mm (H) 2500mm(L) * 2000mm (W) *2700mm (H), wth Cephla
|
Min. Footprint
| 2000mm (L) *2000mm (W) *2700mm (H) , without cephla
|
