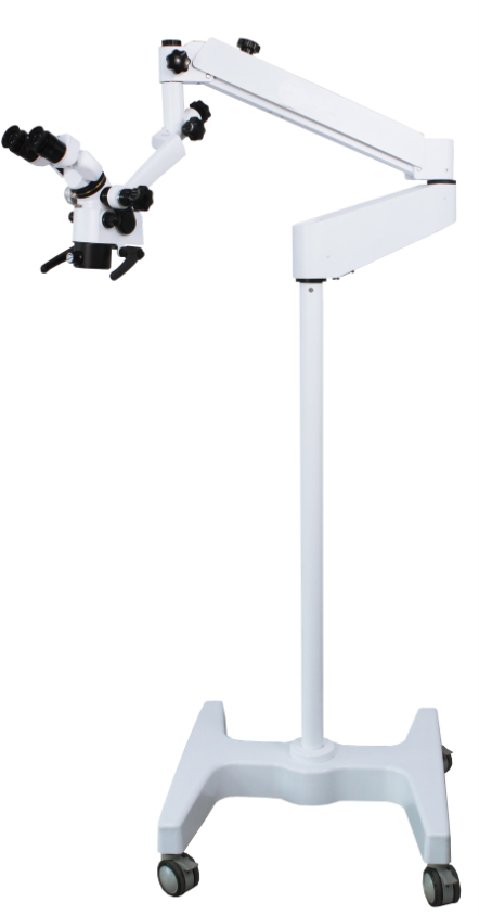

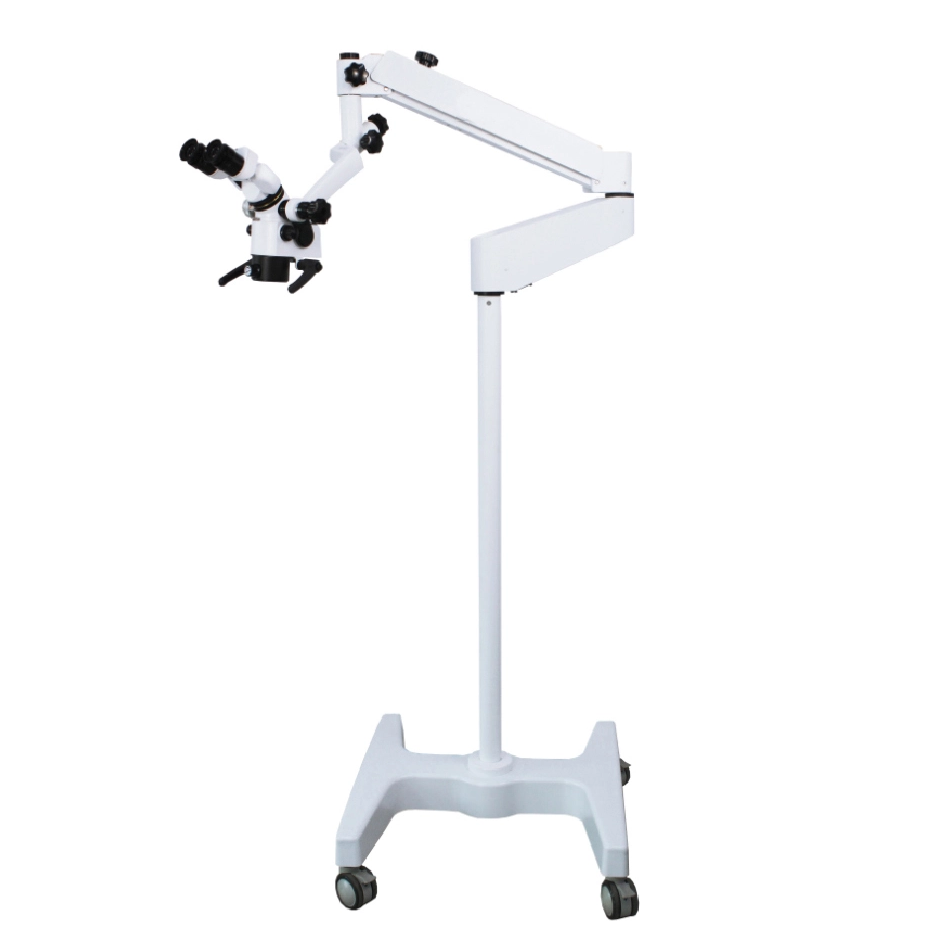

MS-D610 Dental Operation Microscope

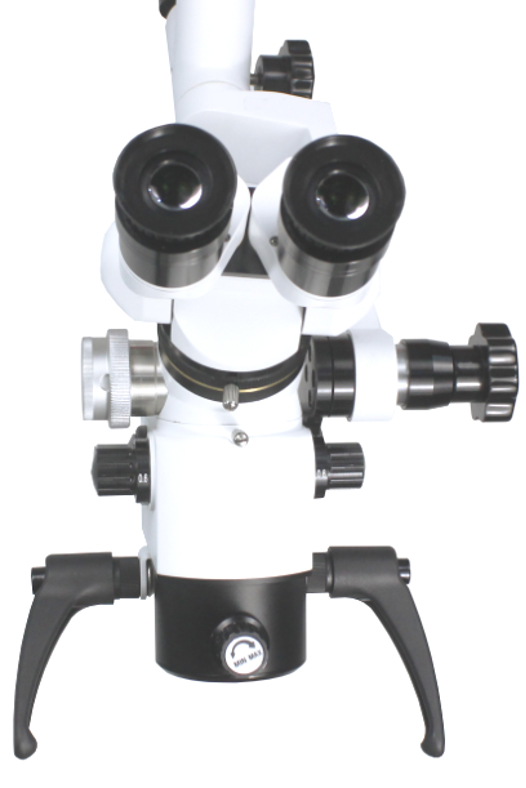

Eyepieces
magnification 12.5x, pupil distance adjustable range 55mm~75mm, diopter adjustment range +6D ~ -6D.
Binocular tube
0~200° binocular tube
Magnification
manual 3-step changer, ratio 0.6，1.0，1.6 , total magnification 6x, 9x，14x ( F 250mm),
illumination
LED cold light, strong light, longer lifetime, brightness adjustable infinitely,
illumination diameter of light spot Φ70mm, illumination intensity≥ 60000lux, field of viewΦ53mm，Φ32mm，Φ20mm
build-in small-spot, both blue and yellow light filter.
Objectives

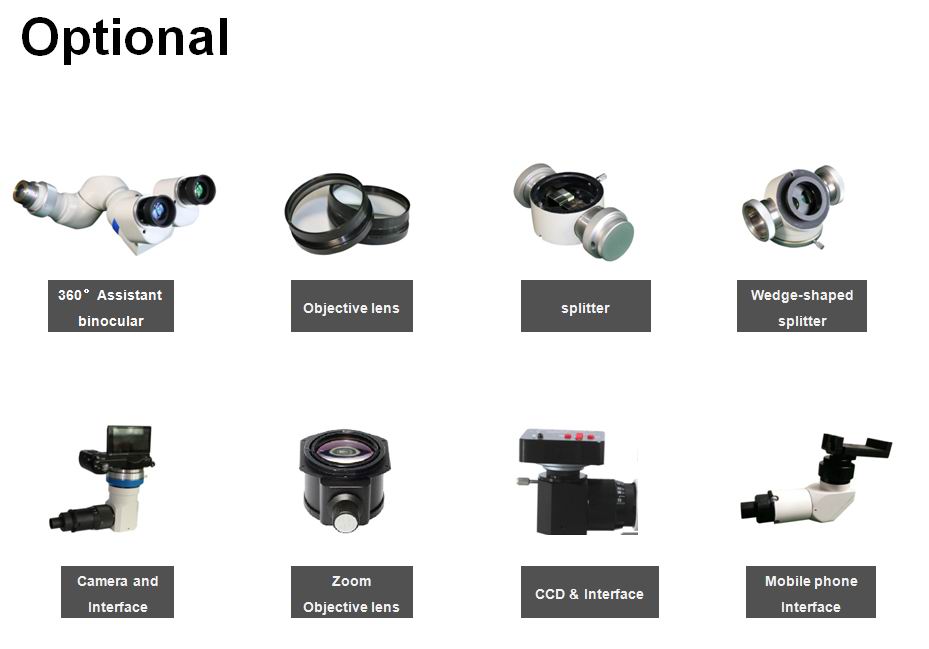

F=250mm (180mm-300mm adjustable objectives for optional)

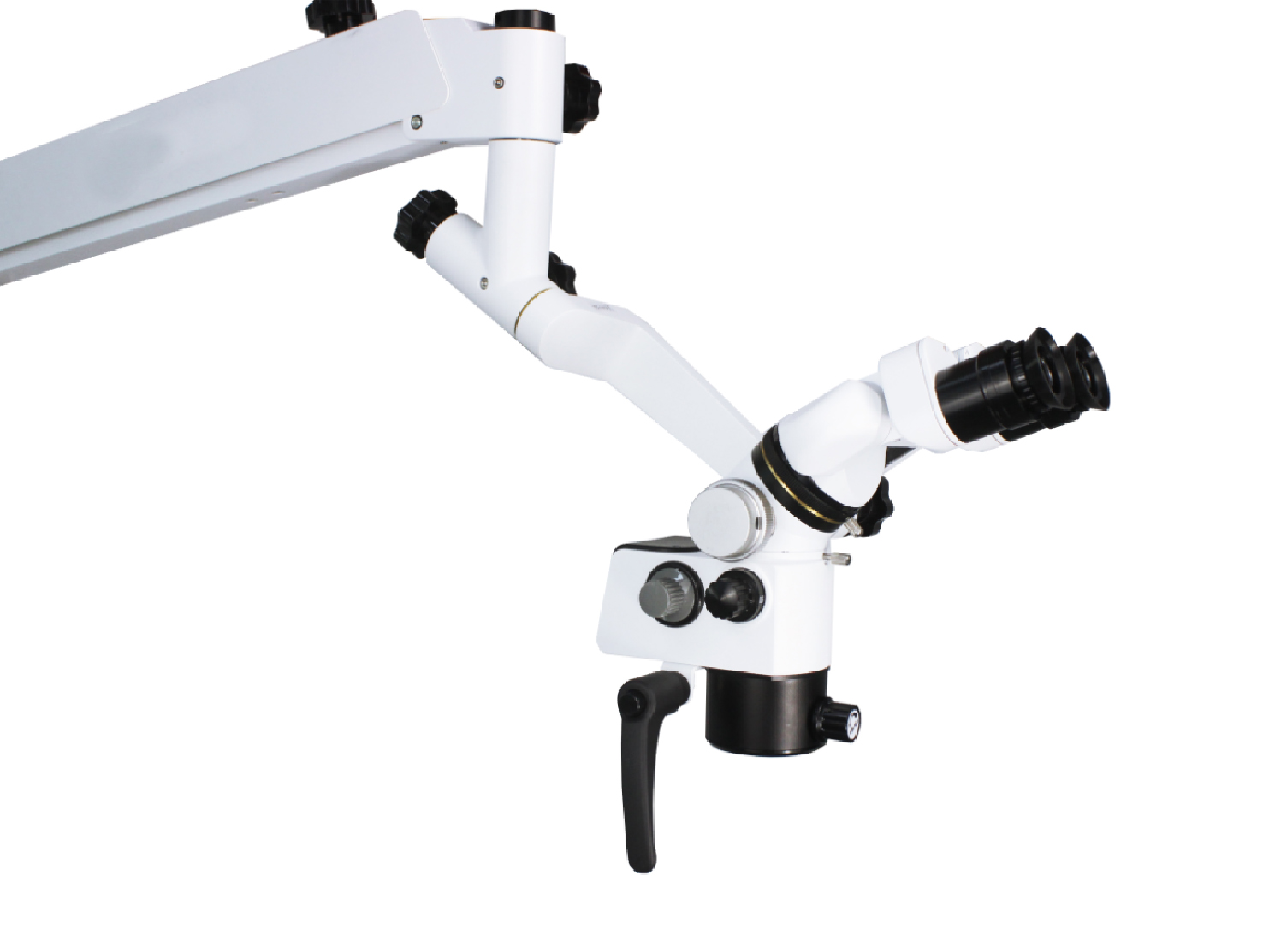

Rotating head for all direction
operate by two handles，free and easy to operate in 0-360°

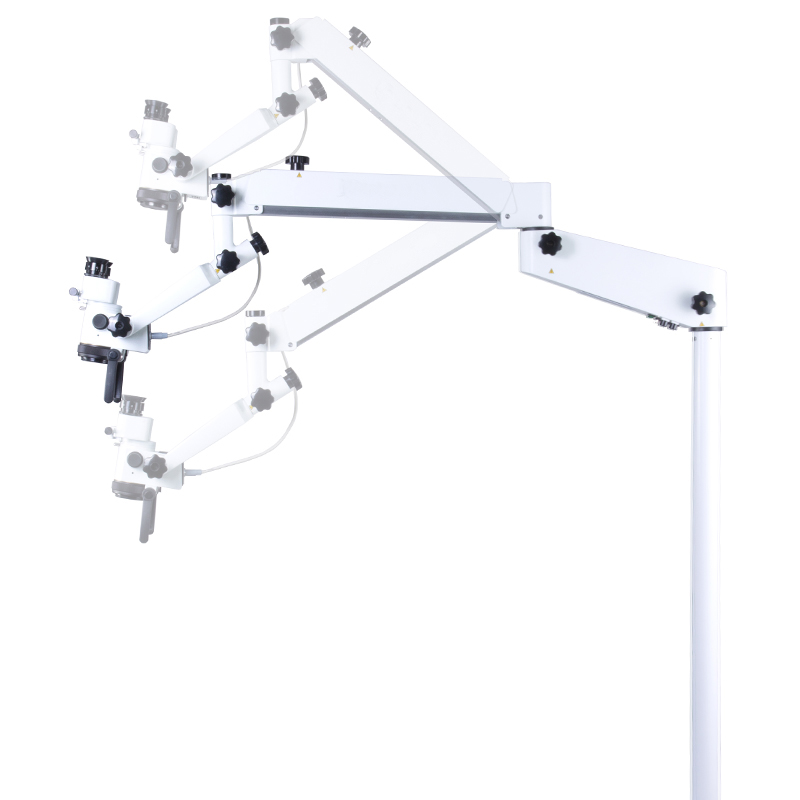

Maximum length of arm
1100mm
