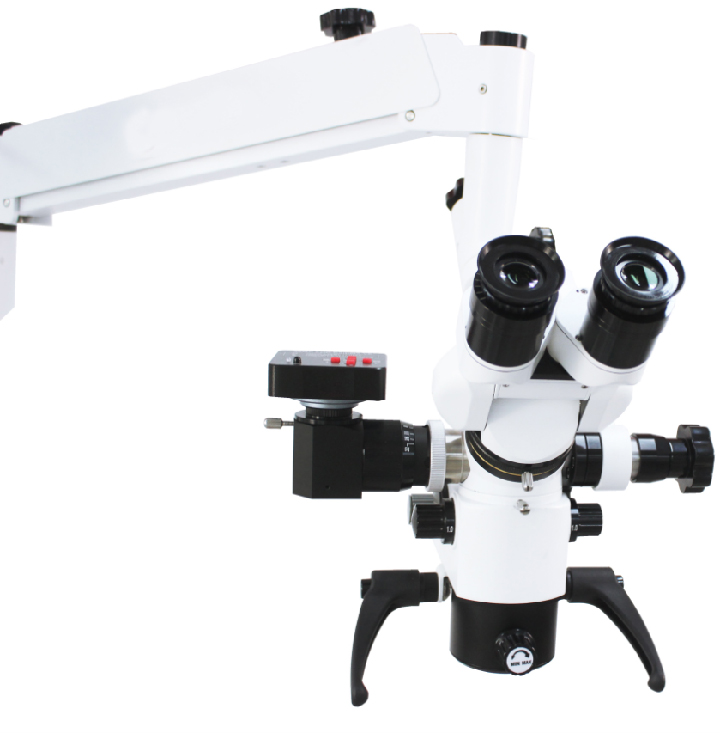

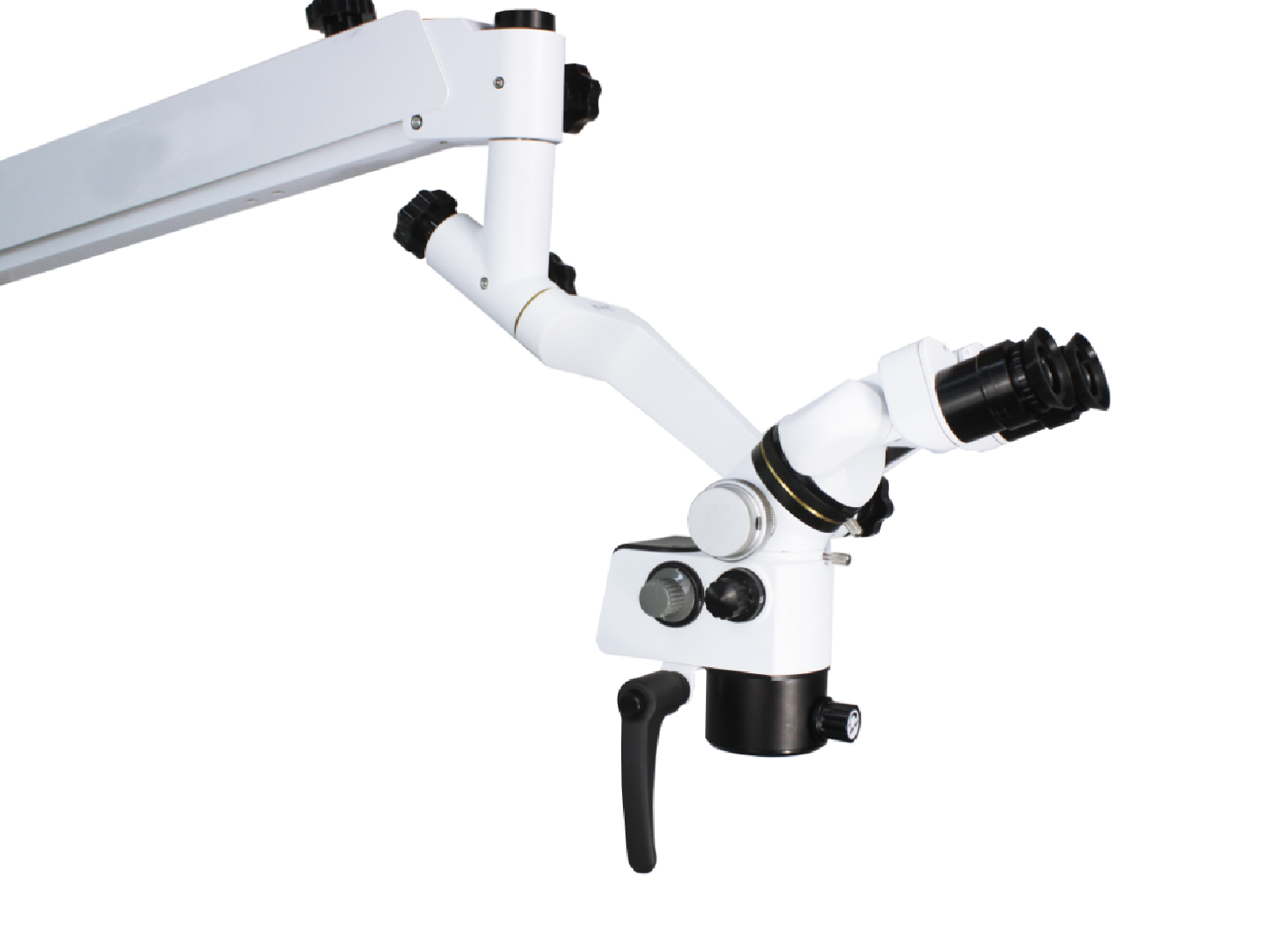

MS-D640 Dental Operation Microscope

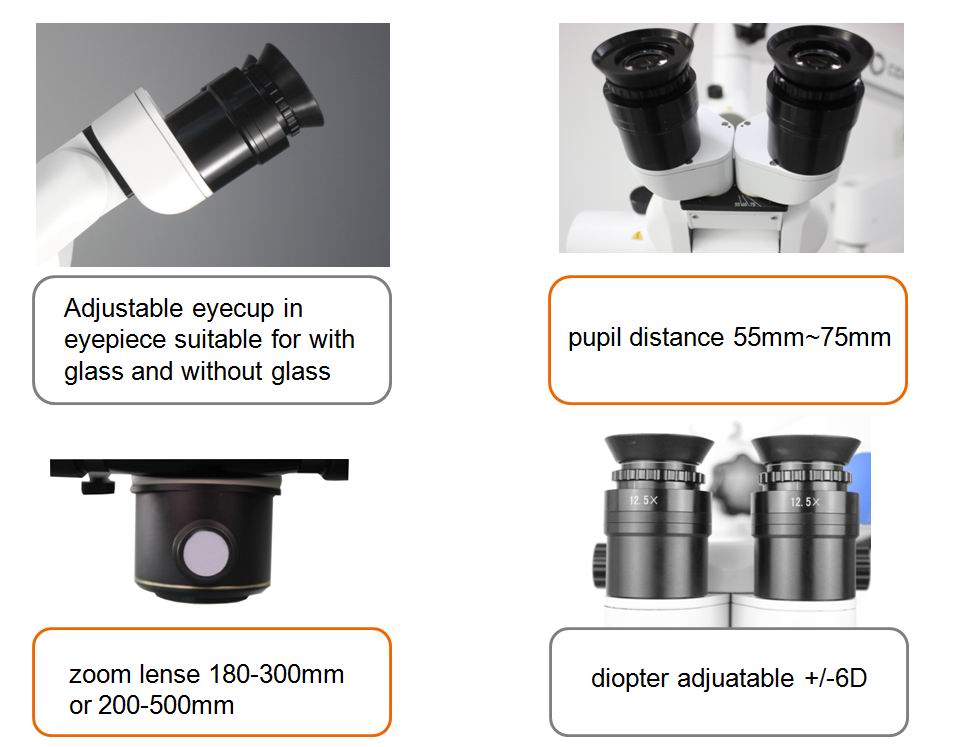

Eyepieces
magnification 12.5x, pupil distance adjustable range 55mm~75mm, diopter adjustment range +6D ~ -6D.
Binocular tube
0~200° binocular tube
Magnification
5 steps magnification 3.6x,5.4x,9x,14.4x,22.5x; field of view
55.6mm,37.1mm,22.2mm,13.9mm,8.9mm
illumination
LED cold light, strong light, longer lifetime, brightness adjustable infinitely,
illumination diameter of light spot Φ70mm, illumination intensity≥ 60000lux, field of viewΦ53mm，Φ32mm，Φ20mm
build-in small-spot, both blue and yellow light filter.
Objectives
F=250mm (180mm-300mm adjustable objectives for optional)
Rotating head for all direction
operate by two handles，free and easy to operate in 0-360°

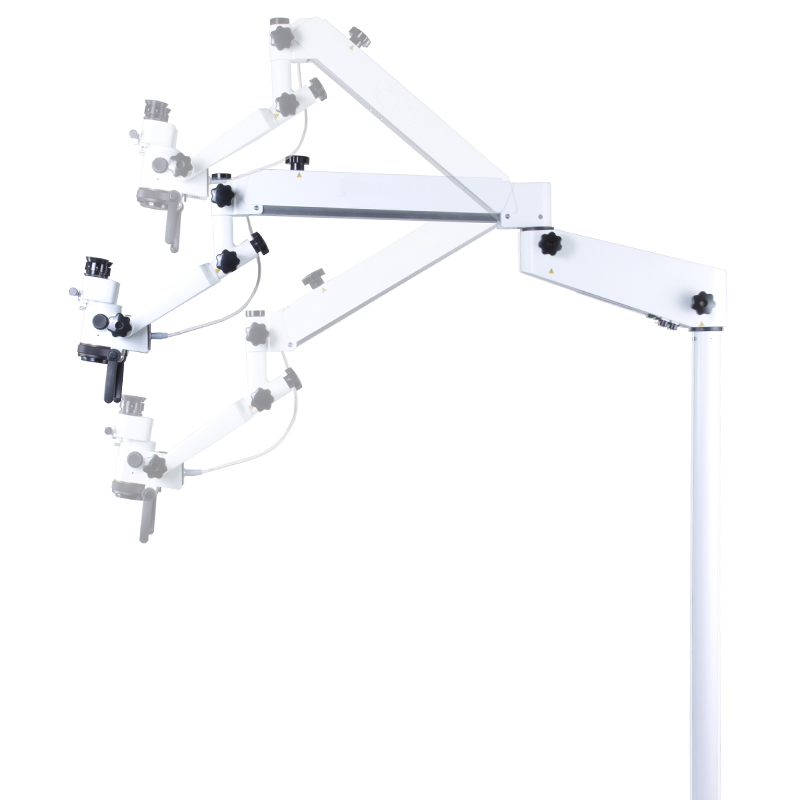

Maximum length of arm
1100mm
