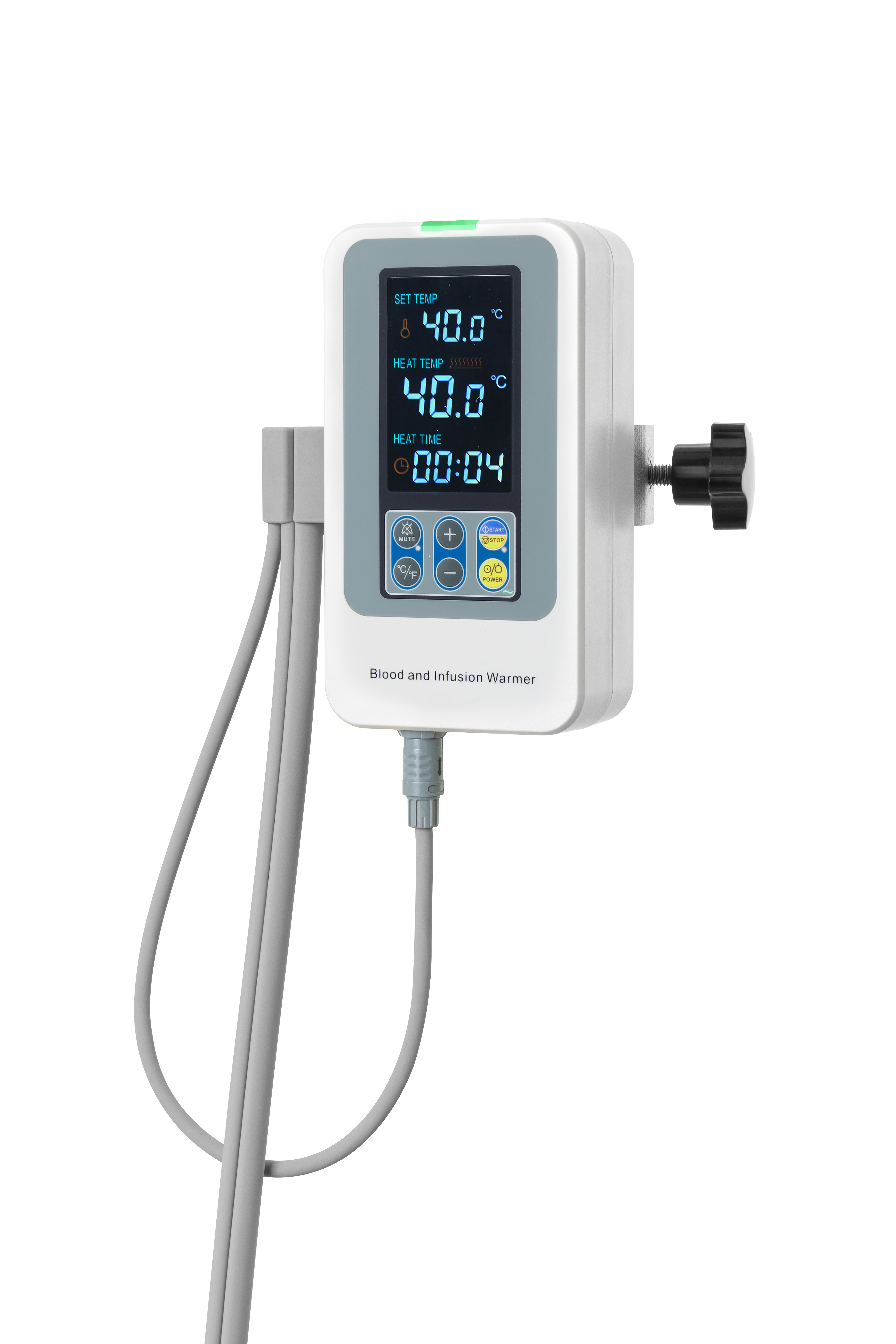

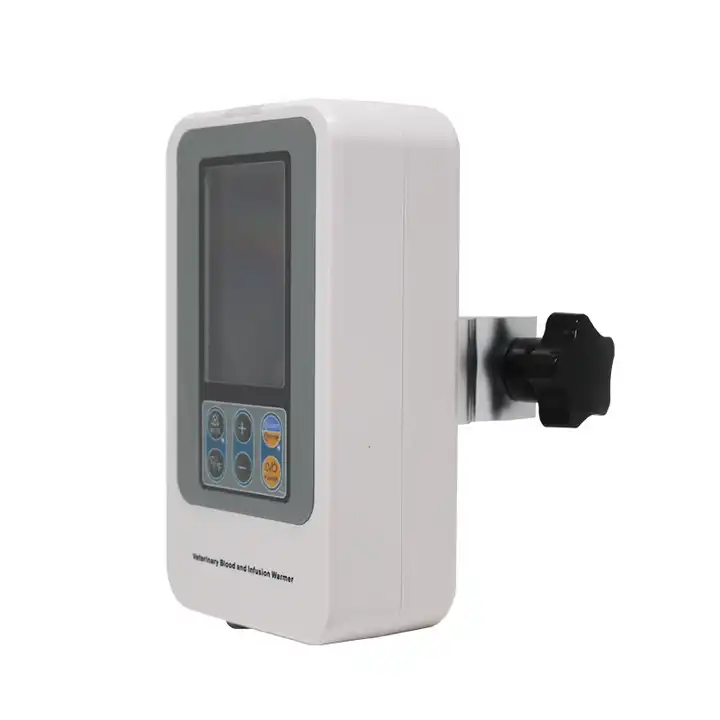

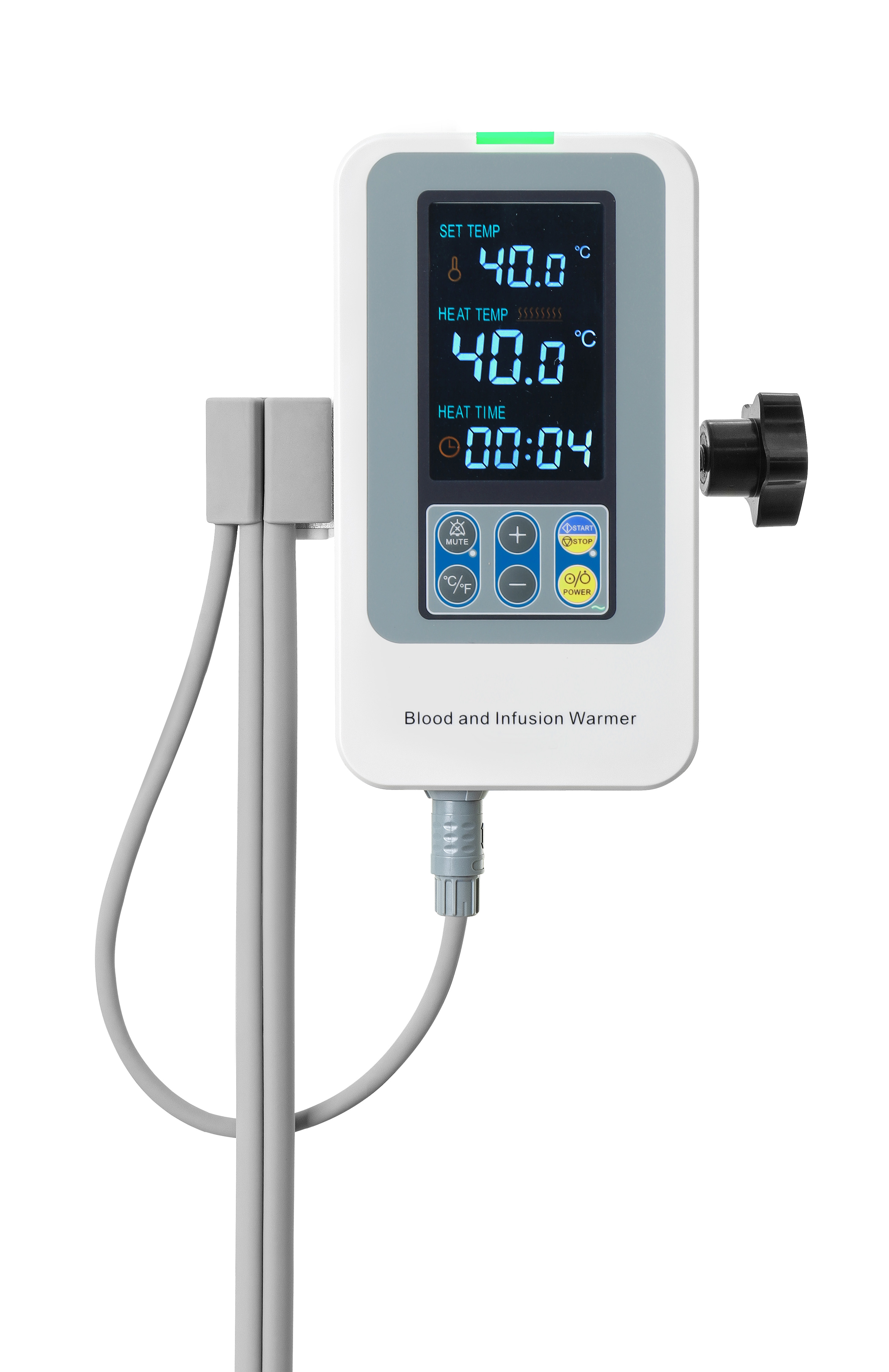

MS-DF100 Blood and Infusion Warmer
MS-DF100 blood & infusion warmer is professional medical fluid warming equipment, designed to heat blood, IV infusion liquid before and during transfusion, effectively prevent patient hypothermia caused by cold fluid input. Widely applied in ICU, NICU, pediatric ward, emergency room, operation room and outpatient department for blood transfusion, crystalloid/colloid infusion warming treatment.
2. Core Advantages & Key Features
1. Dual Temperature Safety Protection System Built-in hardware + software double temperature monitoring, overheat & low temperature automatic alarm, ensure safe clinical warming treatment.
2. Dry Silicone Heating Technology Dry flow heating design, fast warming speed, uniform heat conduction, no liquid leakage risk; detachable silicone heating profiles directly contact IV tube for efficient heat transfer.
3. Multiple Optional Heating Profiles Supports 5 sizes of detachable heating profiles: 60cm / 90cm / 100cm / 120cm / 140cm, compatible with IV tubes of 3.5mm,5mm,7mm diameter, match different clinical infusion demands.
4. Precise & Wide Temperature Control Adjustable temp range 32℃ ~ 42℃ (86.9℉~107.6℉), tiny 0.1℃ temperature increment, temperature deviation ≤±1℃, stable and accurate fluid warming.
5. Clear Digital Display & Simple Operation 46*72mm LCD screen shows set temperature, real heating temp, working time and alarm status; intuitive operation buttons, easy for medical staff to operate.
6. Complete Safety Alarm Functions Overheat alarm, low temperature alarm, overtime working alarm, system error reminder; mute function available for 2 mins to avoid disturbing ward rest.
7. Compact & Portable Design Light weight only 0.86kg, small dimension 140110170mm, can be fixed on IV stand, occupy little ward space, convenient for emergency transfer.
8. Wide Voltage & Stable Performance 100~240V wide power supply, 50/60Hz, adapt to global hospital power grid; IPX4 liquid ingress protection, Class II CF type anti-electric shock protection.

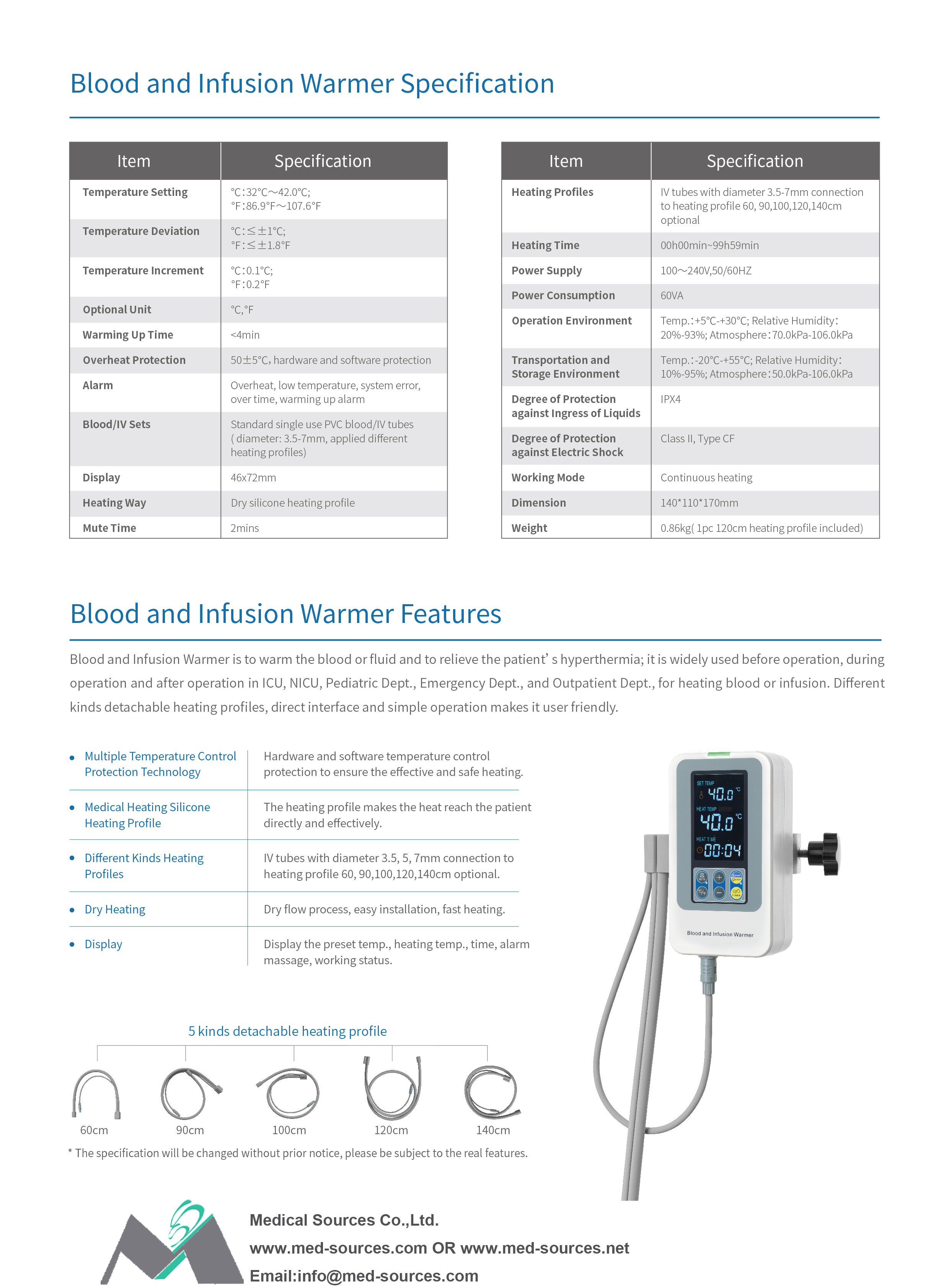

3. Full Technical Specifications
Item | Specification |
Temperature Setting | ℃:32℃~42℃; ℉:86.9℉~107.6℉ |
Temperature Deviation | ℃: ≤±1℃; ℉: ≤±1.8℉ |
Temperature Increment | ℃:0.1℃; ℉:0.2℉ |
Optional Unit | ℃ / ℉ switchable |
Warming Up Time | ＜4min |
Overheat Protection | 50±5℃, dual hardware & software protection |
Alarm Function | Overheat, low temperature, overtime, system error alarm |
Compatible IV Sets | Standard single-use PVC blood/IV tubes, diameter 3.5/5/7mm |
Display | 46*72mm digital LCD screen |
Heating Mode | Dry silicone detachable heating profile |
Mute Time | 2 minutes |
Heating Profiles | 60/90/100/120/140cm optional |
Max Heating Time | 00h00min ~ 99h59min adjustable |
Power Supply | 100~240V, 50/60Hz |
Power Consumption | 60VA |
Working Environment | Temp: +5℃~+30℃; Humidity 20%~93%; Atmosphere 70.0kPa~106.0kPa |
Storage & Transport Env | Temp: -20℃~+55℃; Humidity 10%~95%; Atmosphere 50.0kPa~106.0kPa |
Protection Grade | IPX4 against liquid ingress; Class II, Type CF against electric shock |
Working Mode | Continuous heating |
Dimension | 140110170mm |
Net Weight | 0.86kg (including 1pc 120cm heating profile) |
