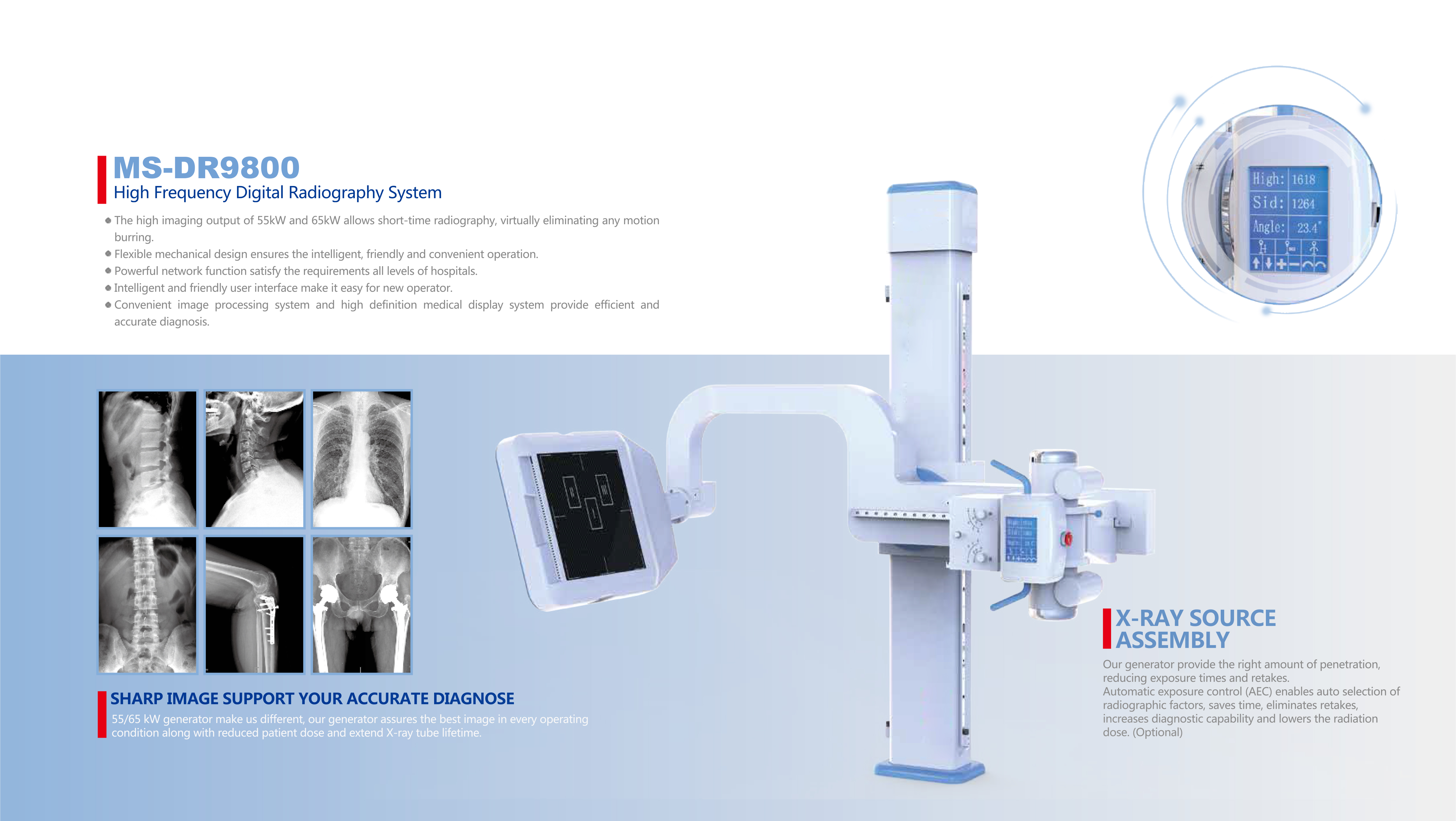

MS-DR9800 Digital X-ray Machine

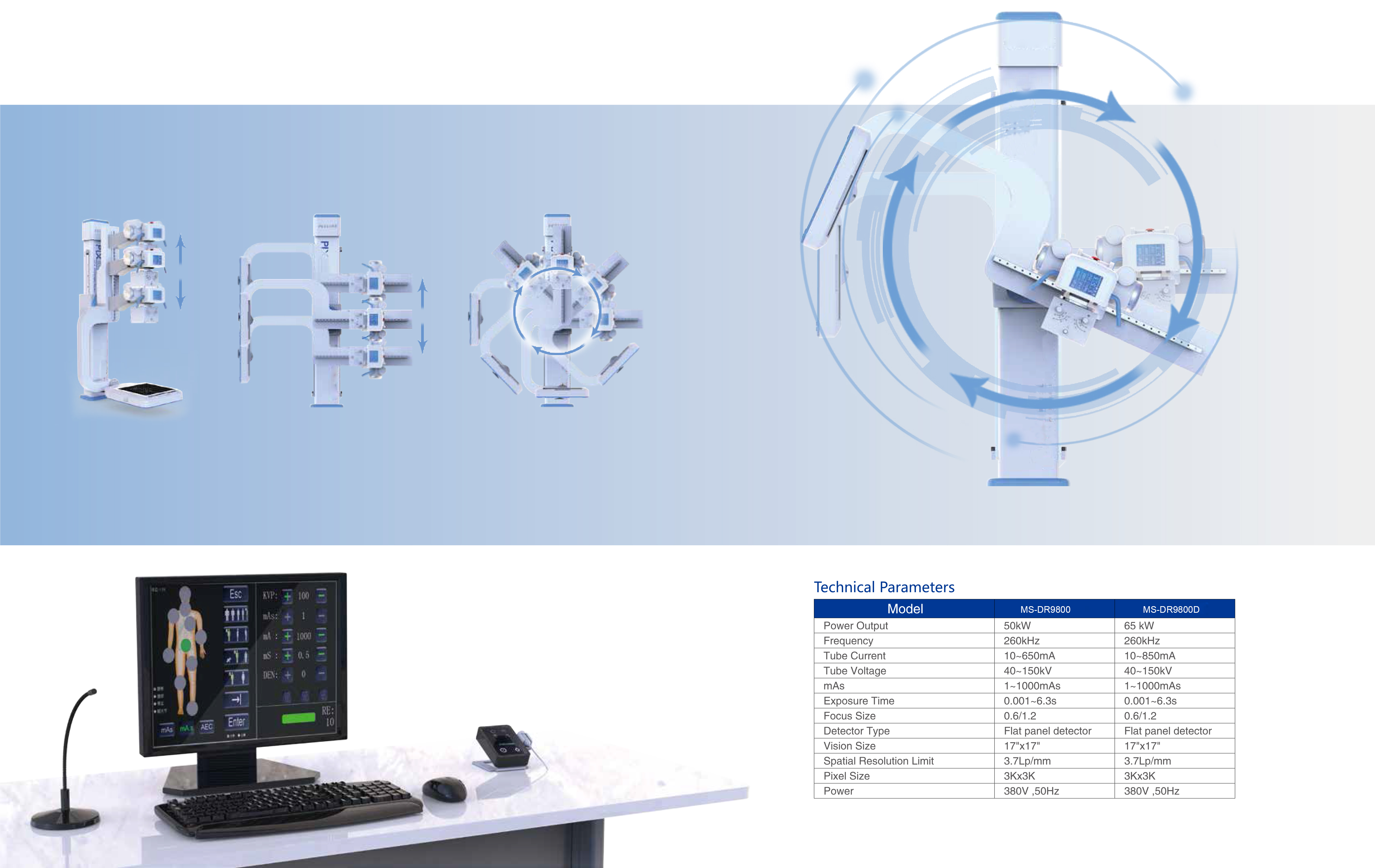

Specifications
High Frequency X-ray Machine:
Power Output : 25KW
Inverter Frequency : 40kHz
Dual-focus : Small focus: 0.6 Large focus: 1.3
Thermal capacity :900kJ (1200 KHU)
The speed of the rotary anode : 3000rpm
Tube Voltage : 40~125kV
Tube Current : 200mA
mAs: 0.4~360mAs
Digital image processing system:
Digital Detector:
Type of detector:CCD
Field of view:17*17 Inch
Pixel:4K*4K(or 3K*3K)
Spatial resolution : ≥3.0LP/mm
Limit of spatial resolution:4.6LP/mm
Pixel size:108um
Grayscale output:14bit
Imaging time :7S
System control:
Image processing system : Photo processing software, X-ray synchro
Control software, motion control software
Image post-processing:
tissue equilibrium,W/L adjustment,
Gamma correction, interest district, reversed
phase, noise reduction, smooth, sharpen,
pseudo color, Edge extraction, shadow
compensation, filter neuclear, single window,
dual-window, four windows, movement, right
rotated 90°,left rotated 90°,level mirror image,
vertical mirror image, magnifying glass, image
zooming, reset, layer information, label
character, drawing label, length
measurement, angle measurement,
rectangular length, rectangular area, elliptic
length, elliptic area
Image storage and transmissio:
Dicom direct transmission,
Dicom Worksite SCU, standard
Dicom, DIR, film printing, mass storage(hard disk, compact disk)
Mechanical structure performance:

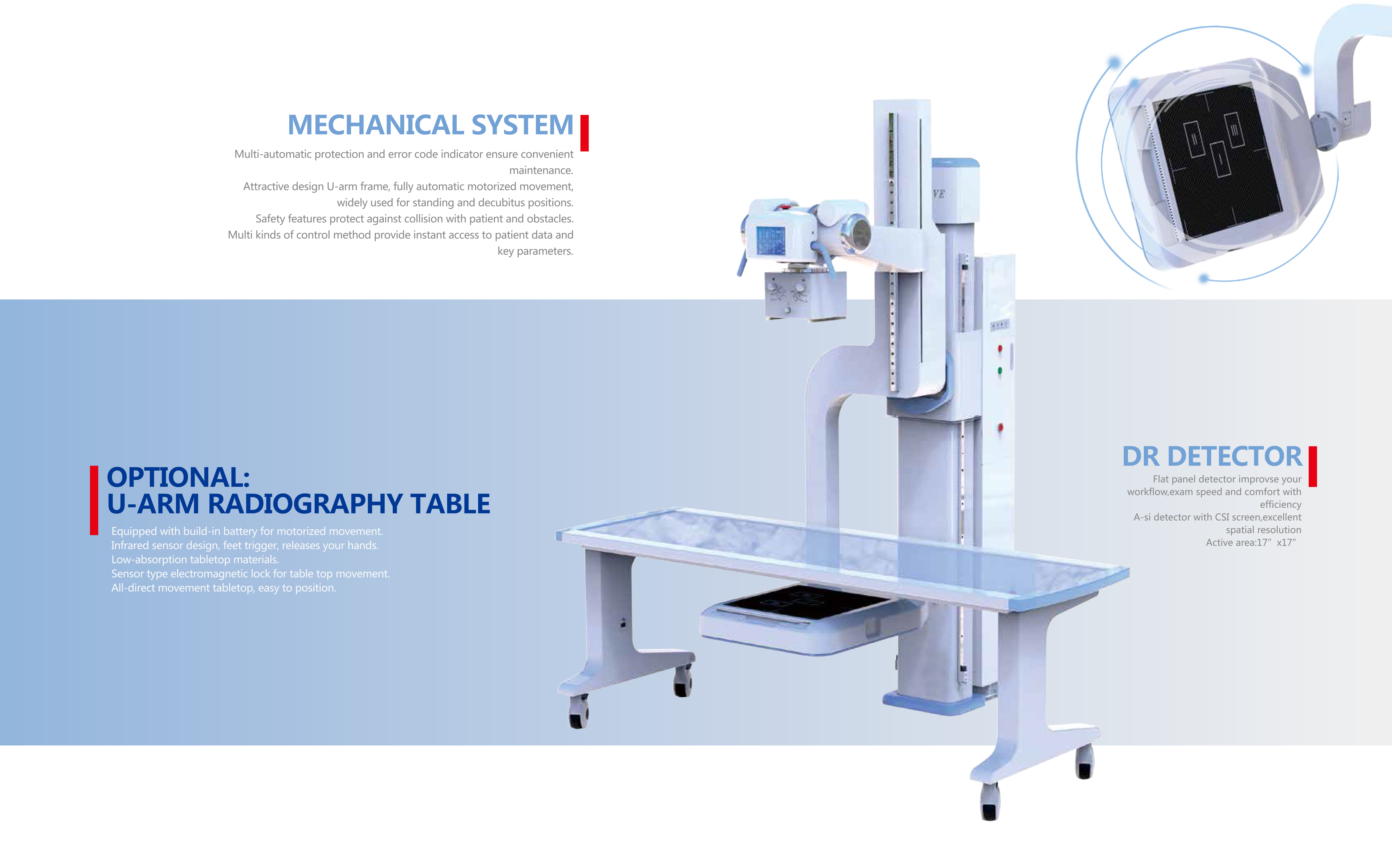

U-shaped arm:
Motorized vertical travel : 450mm-1700mm(motorized control)
Anode to Screen range : 1000mm-1800mm(motorized control)
Rotation range : -40°~+130°(motorized control)
Photography bed :
Bed size :2000mm*650mm
Bed height :≤720mm
Transervse shift : 200mm(±100mm, electromagnetic lock)
Longitudinal shift : 100mm(±50mm, electromagnetic lock)
Power supply : 380V 50HZ (220V 50HZ is also available)
Features:
1.The electric lift and rotatable newly designed U-shaped frame can meet the photographic requirements of different standing and lying positions. The U-shaped design can make the operation much more convenient and flexible.
2.The world leading 1700 pixels digital CCD detector can help you get the high-definition images.
3.The leading domestic high power compact high frequency X-ray generator and high frequency power inverter makes the machine much more compact and more convenient without the extra high-voltage generator and cable.
4.Newly designed photographic bed used specially for the U-shaped arm X-ray machine. The bed floating and electromagnetic lock design makes it convenient for the accurate position of the lying patient.
5.Specially designed working station for DR adopts all-digital intelligent touchable LCD control system which is graphic and real color. This system makes the operation easier and more convenient.
6.Apply different photographic parameters according to the human characteristics, such as multi-site, multi-position, muti-body shape, adult and children etc. The parameters can be modified and stored at will and make the operation more convenient.
7.The high quality high frequency high-voltage X-ray generator and high frequency power inverter can produce high-definition and good contrast images by high quality radiation and low dose.
8.The application of the KV and MA digital closed-loop control technology and the real time control of the microprocessor ensure the accuracy and repeatability of the dose.
9.The multiple automatic protection features and fault tips ensure safety during the operation process.
10.Support Dicom 3.0.
11.High quality battery is available for the power supply. Normally, about 200 exposure is available after the battery is fully charged. The image quality is stable and reliable without the effect of the net power.
