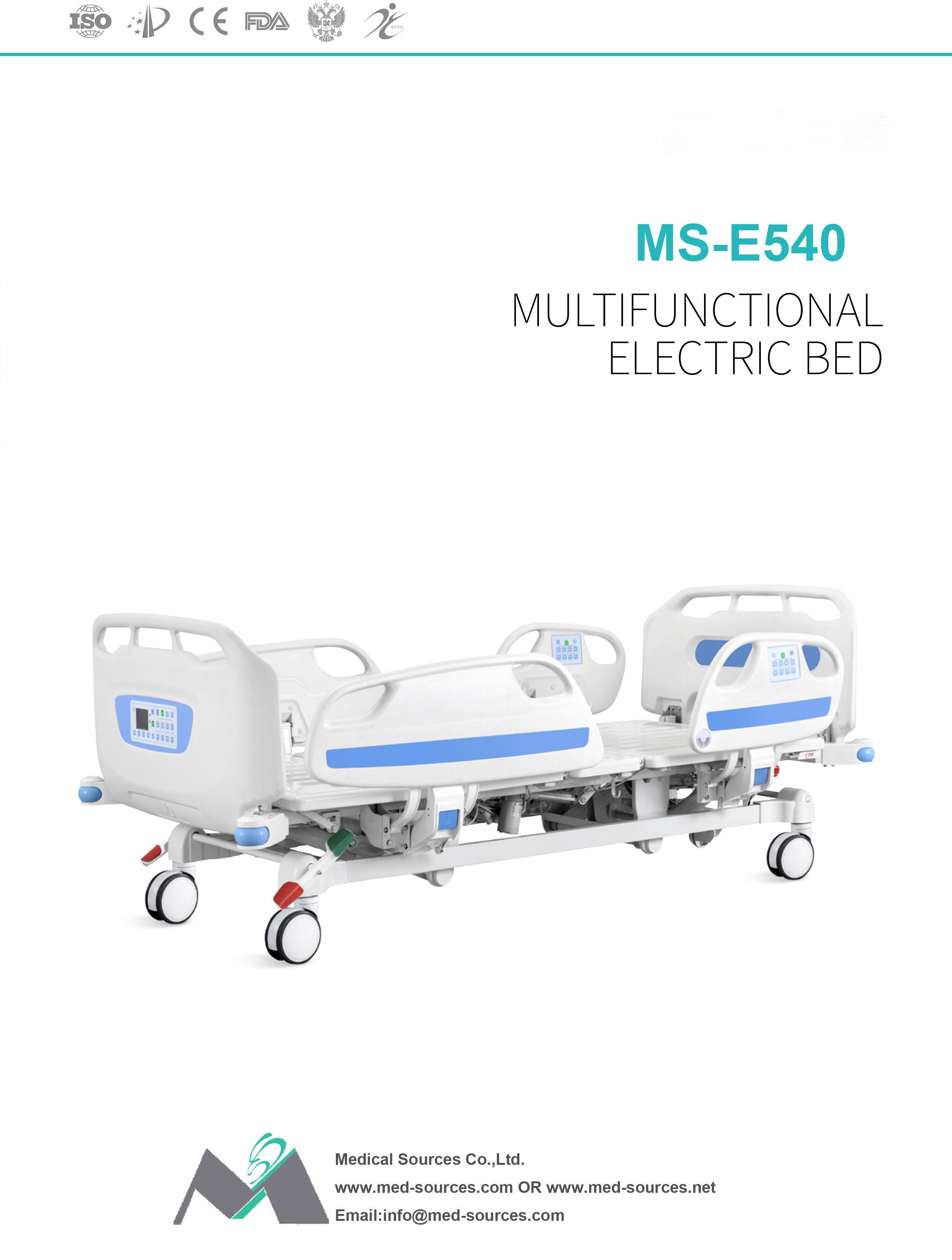

MS-E540 Electric Bed
Features
Important quality control
* Grace care series
* 5 functions electric
* USFDA, EN60601, CE, ISO, SFDA
* Big LCD screen nurse control panel
Optional features(extra charge)
* Weighing system with LCD screen
* Bed extension 200mm
* Back up battery
* Cardiac position
* ABS bed surface
* x-ray bed surface
* Monkey pole
* Balkan traction frame
* Directional wheels function
Technical parameters
External L*W*H | 2280x1090x(435-725)mm |
Knee-rest adjustment | 0-35°(±10°) |
Mattress platform | 1925x900mm |
Back-rest adjustment | 0-75°(±10°) |
Safe working load | 250kg |
Reverse trendelenburg | 0-12° |
Trendelenburg | 0-12° |
Angle indicator | 0-90° |
Technical configuration
Linear motor | 4pcs |
5" double side secure®castors, central locking | 4pcs |
ABS grace side rail with integrated control panel | 1set |
ABS grace bed ends with Integrated LCD control panel | 1set |
Φ85mm wall bumper wheel | 4pcs |
Trapeze socket | 2pcs |
IV pole | 1set |
IV pole prevision | 4pcs |
Drainage hook | 2pcs |
Central locking pedal | 2pcs |
