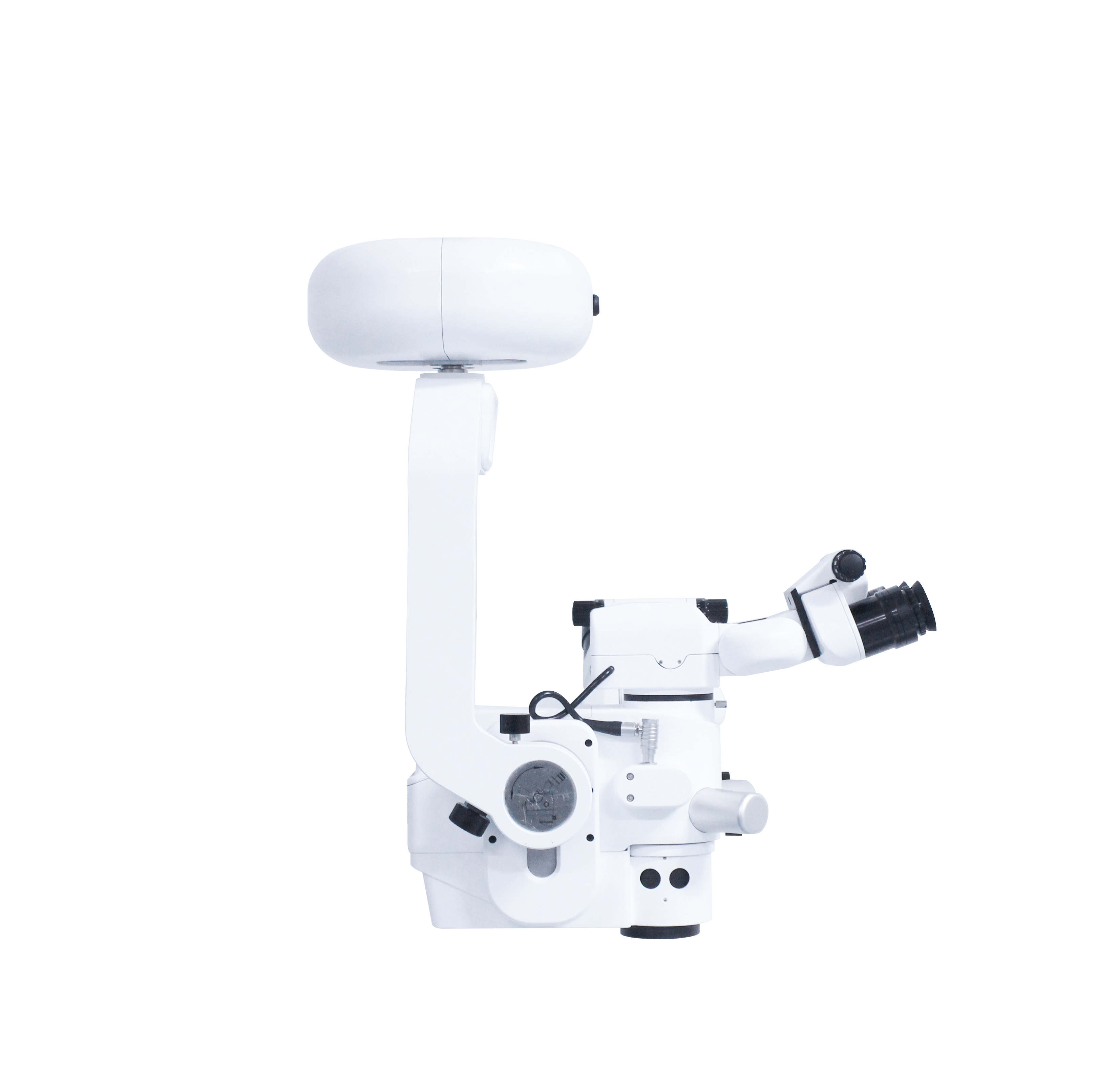

MS-E660 Ophthalmic Surgery Microscope

Availability:
Quantity:
  • MS-E660

  • Medical sources

  • Shanghai, China

  • 100.000, 000 PCS/Year

  • L/C, T/T, Western Union, Paypal, Money Gram

MS-E660

MS-E660-1

MS-E660-2

MS-E660-3

MS-E660-4

MS-E660-5

3

4

5

7

8

9

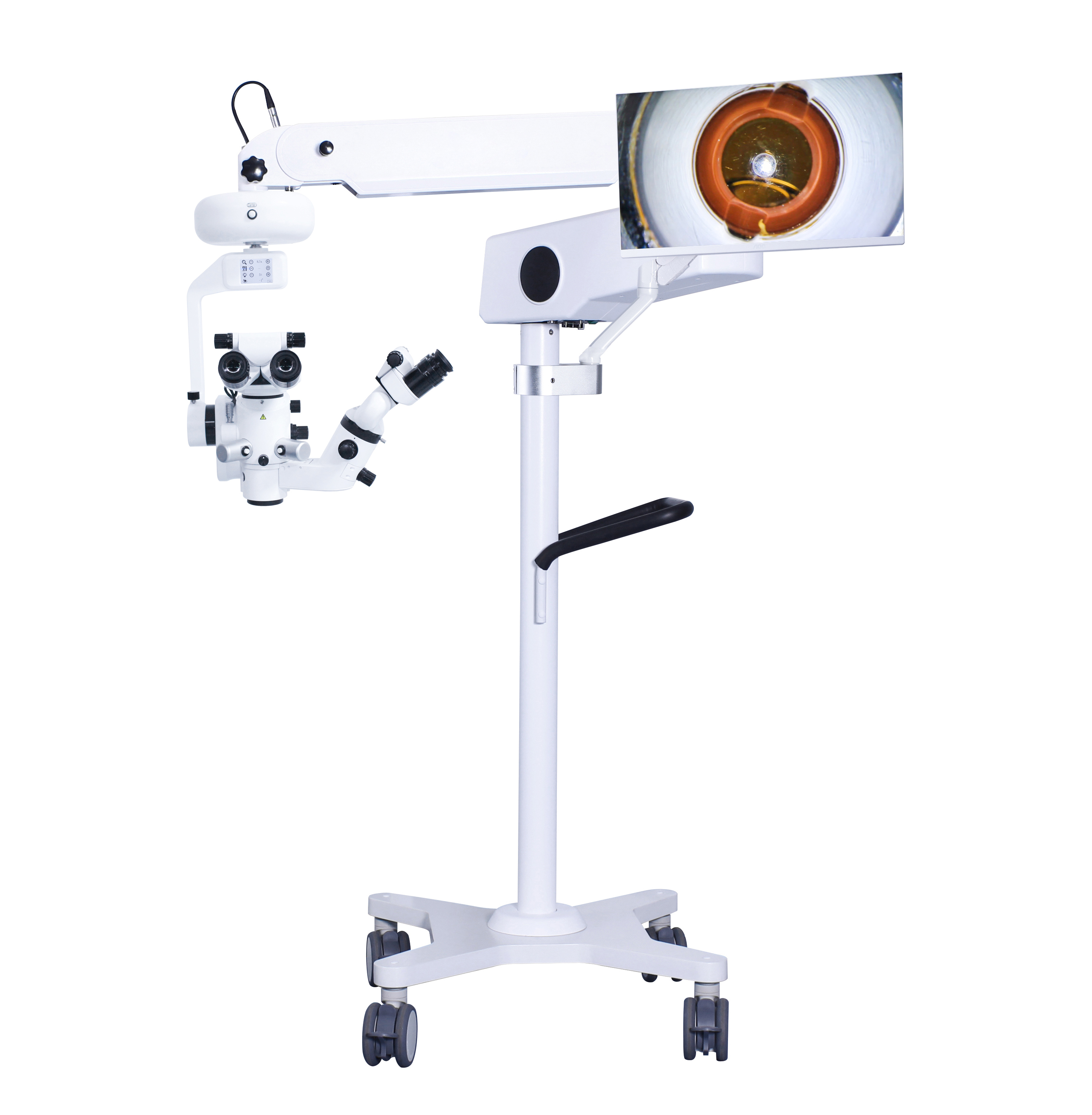

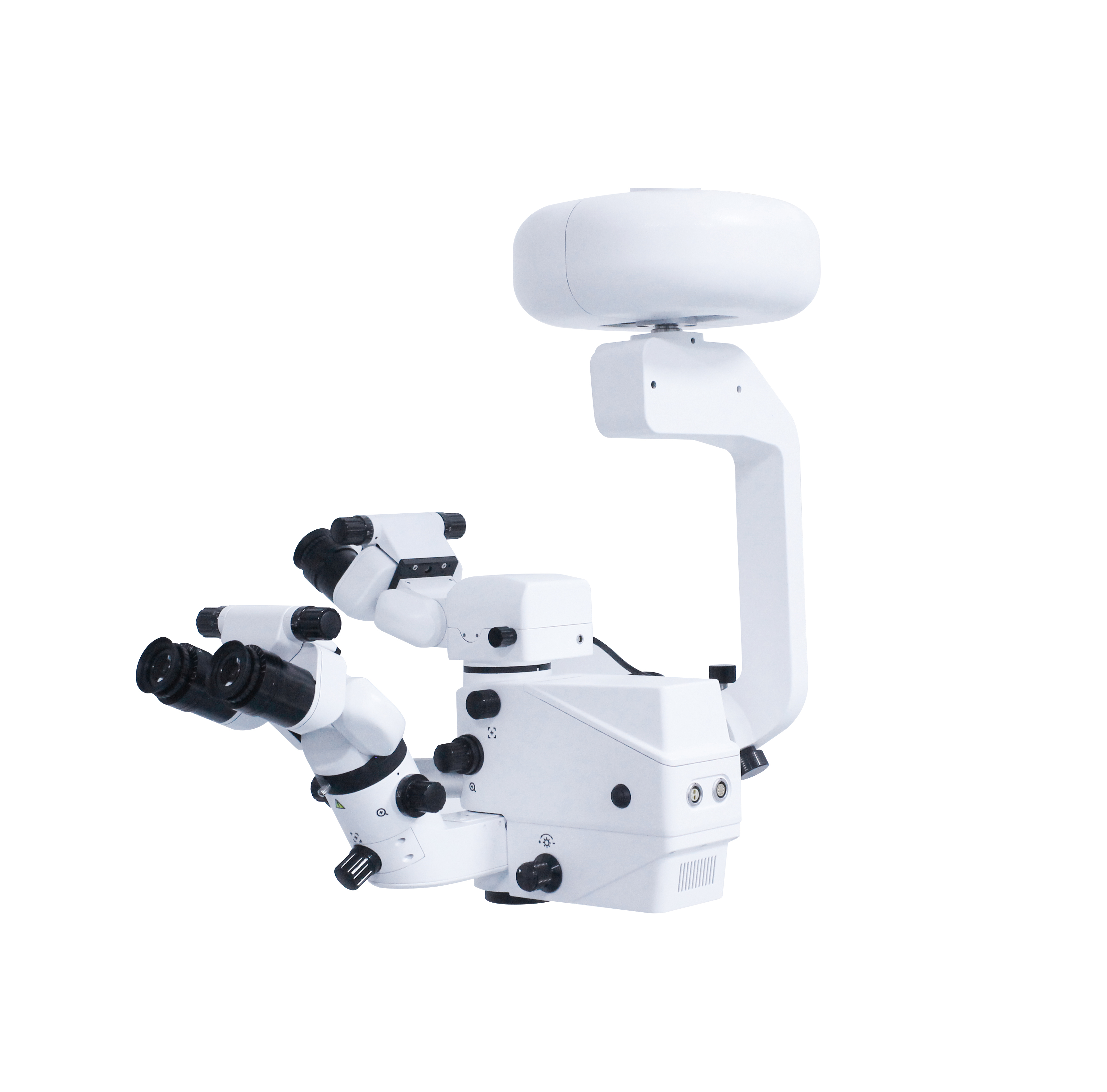

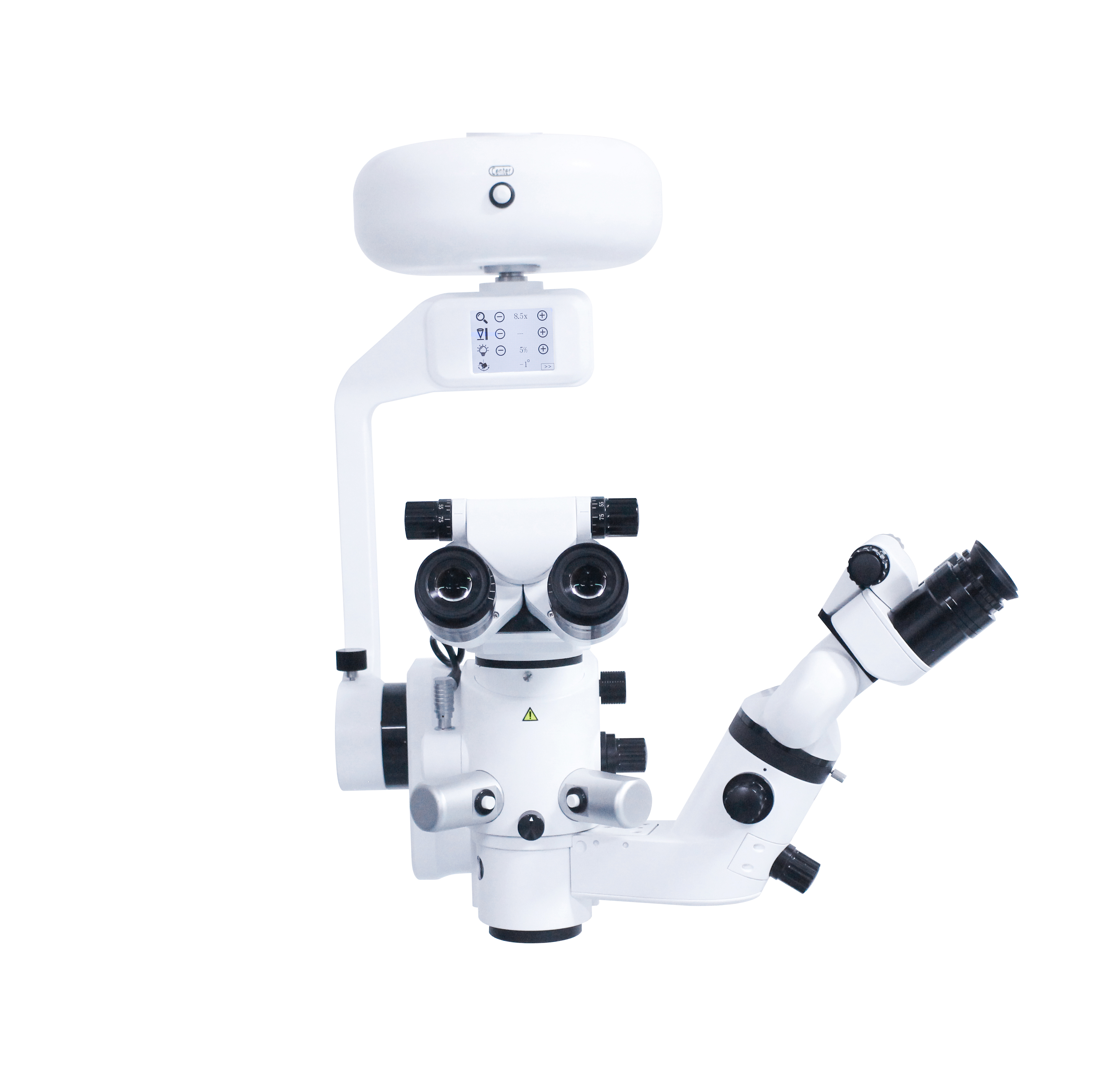

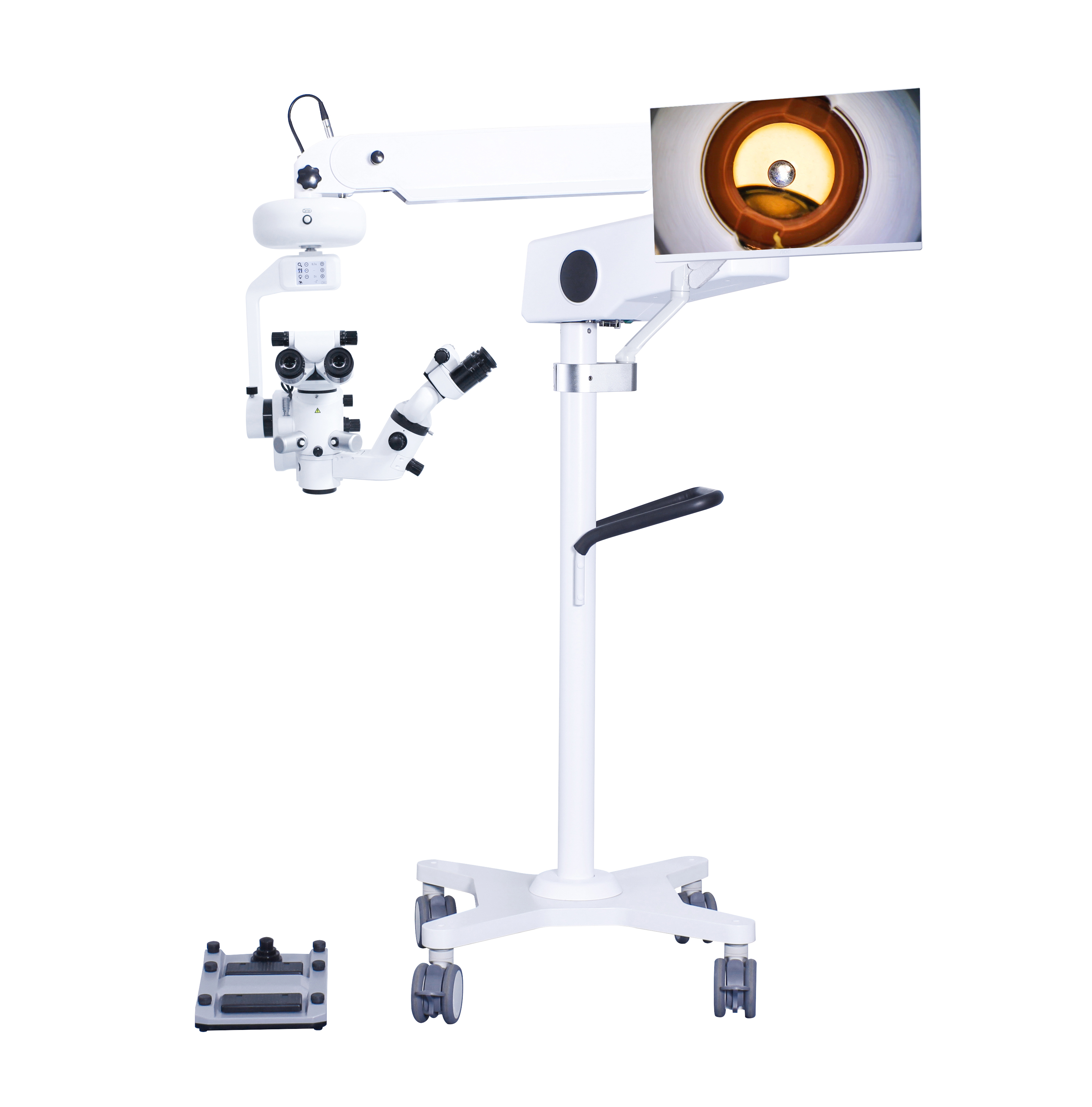

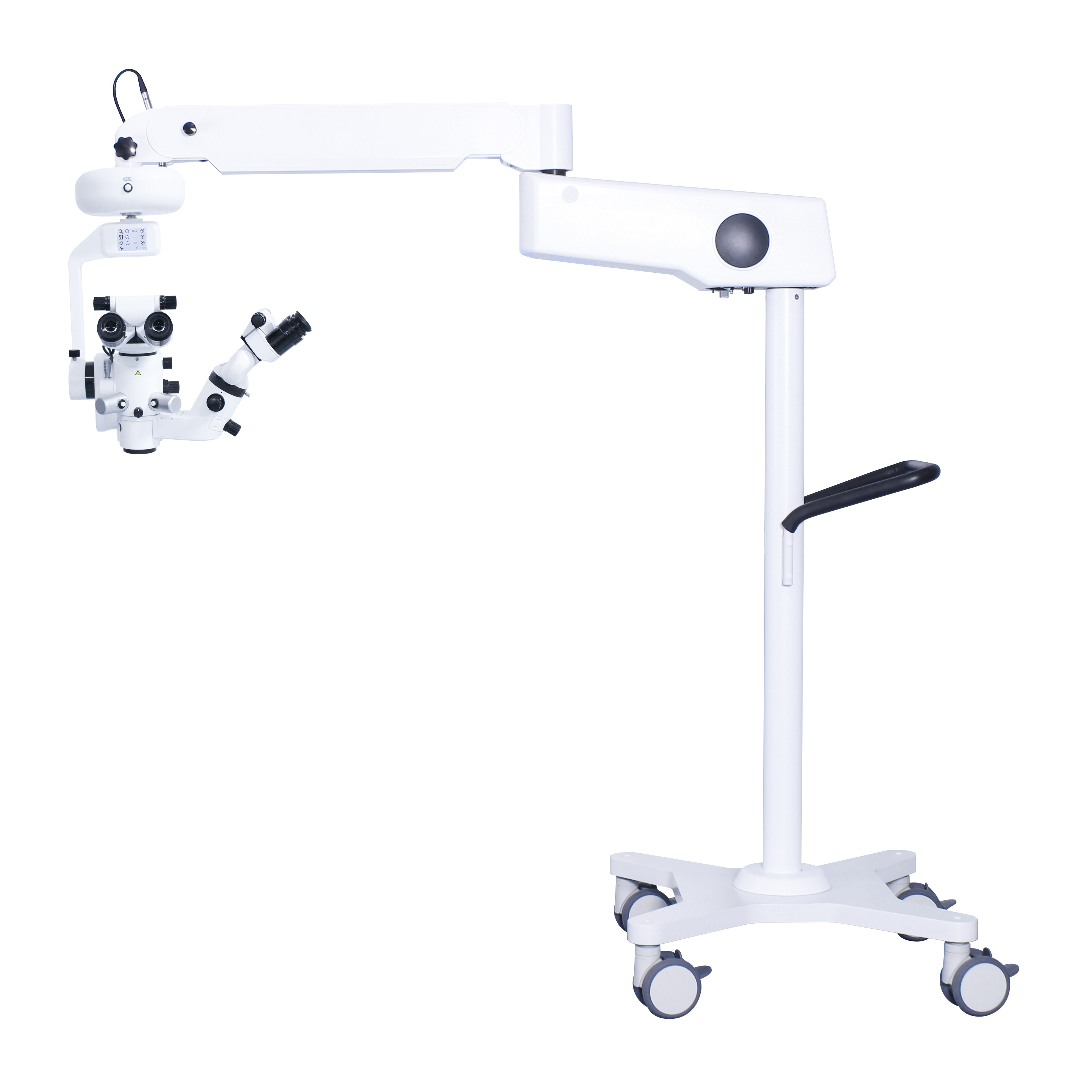

MS-E660 Ophthlmology ophthalmic surgical operation microscope

This Ophthalmic operating microscopes are widely used in the field of ophthalmic surgery. Most types of ophthalmic surgery do not require much movement, and ophthalmologists often maintain the same posture during surgery. Therefore, maintaining a comfortable working posture and avoiding muscle fatigue and tension has become another major challenge in ophthalmic surgery. In addition, eye surgery procedures involving the anterior and posterior segments of the eye pose unique challenges.Provide a wide range of ophthalmic microscopes and accessories for different needs and budgets of ophthalmic surgery.

Features

LED lamps exchangable

Macular protector can protect Retina

Main binocular tube and assistant tube use independent optical system, the same luminance, the same magnification, motorized continuous change 4-27 times

Depth regulator to increase field depth of field of view

Magnetic brakes

0°~200°Variable angle binocular tube, Alleviating long - term fatigue

Model MS-E660
Application Ophthalmic
Surgical microscope
Magnification Motorized zoom system, 1:6 zoom ratio
Working distance 200mm

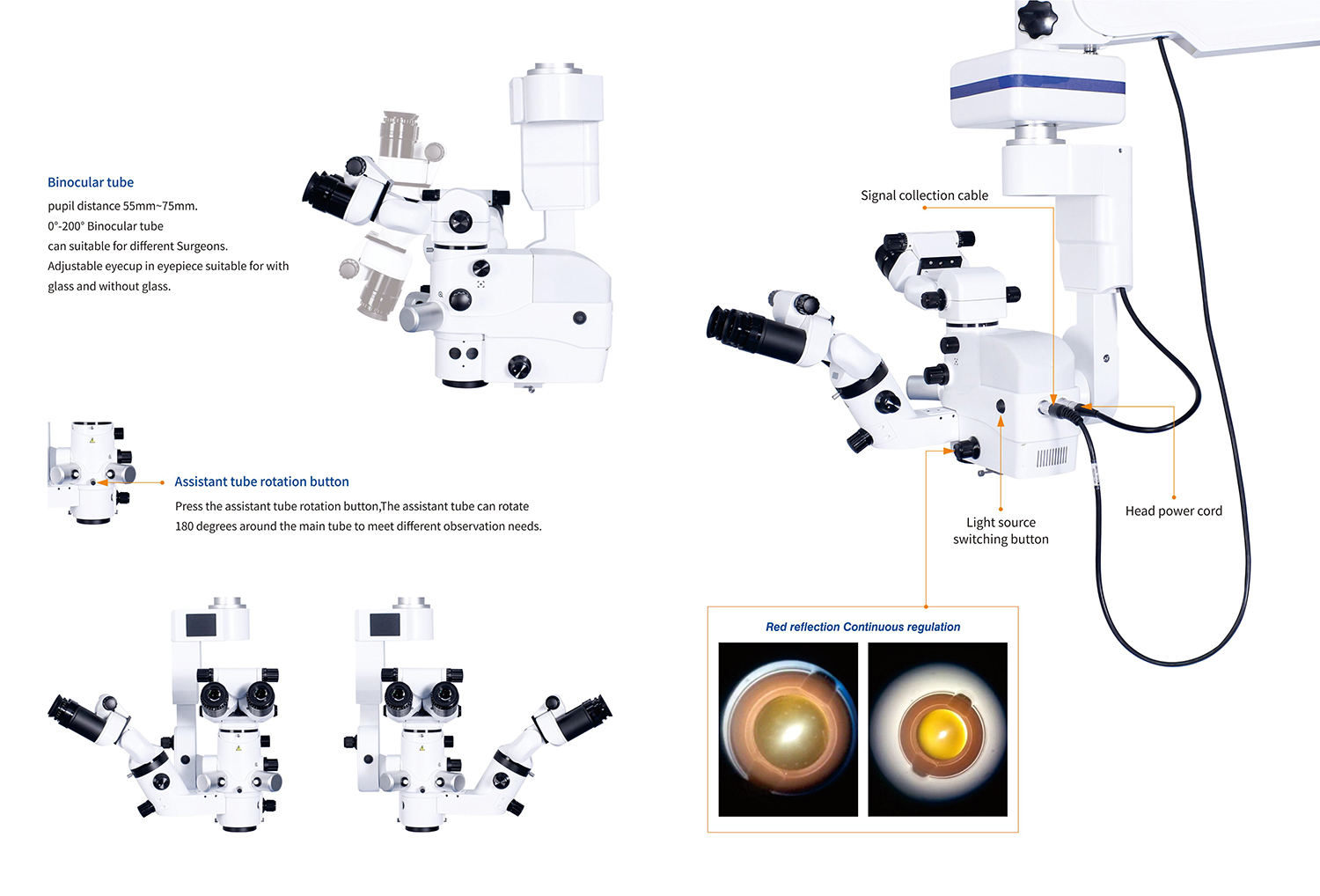

Binocular tube 0°~200° inclinable binocular tube

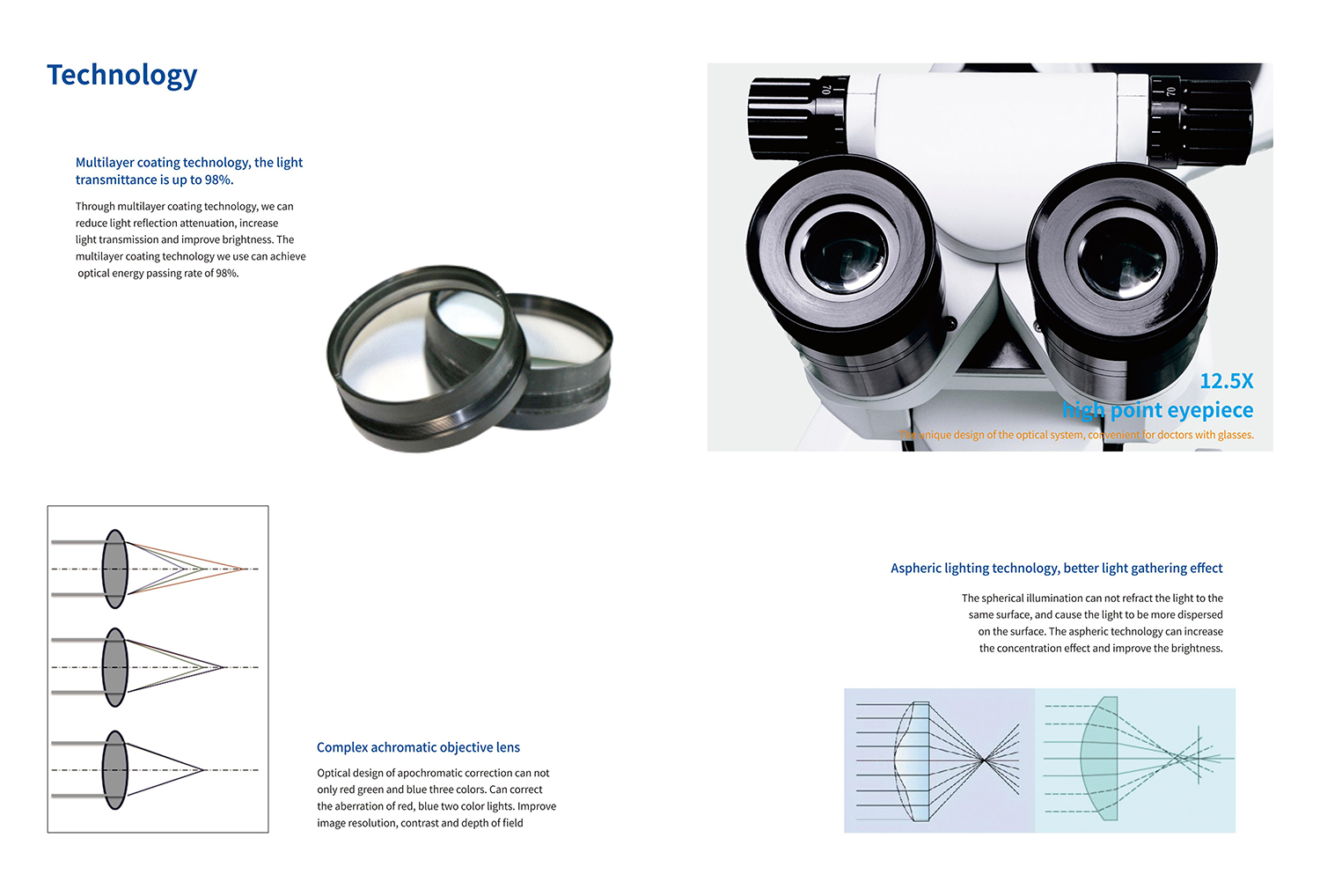

Eyepiece 12.5x
Pupil distance 55mm-75mm
Diopter adjustment +6D ~ -6D
Field of view F45-F7.5mm

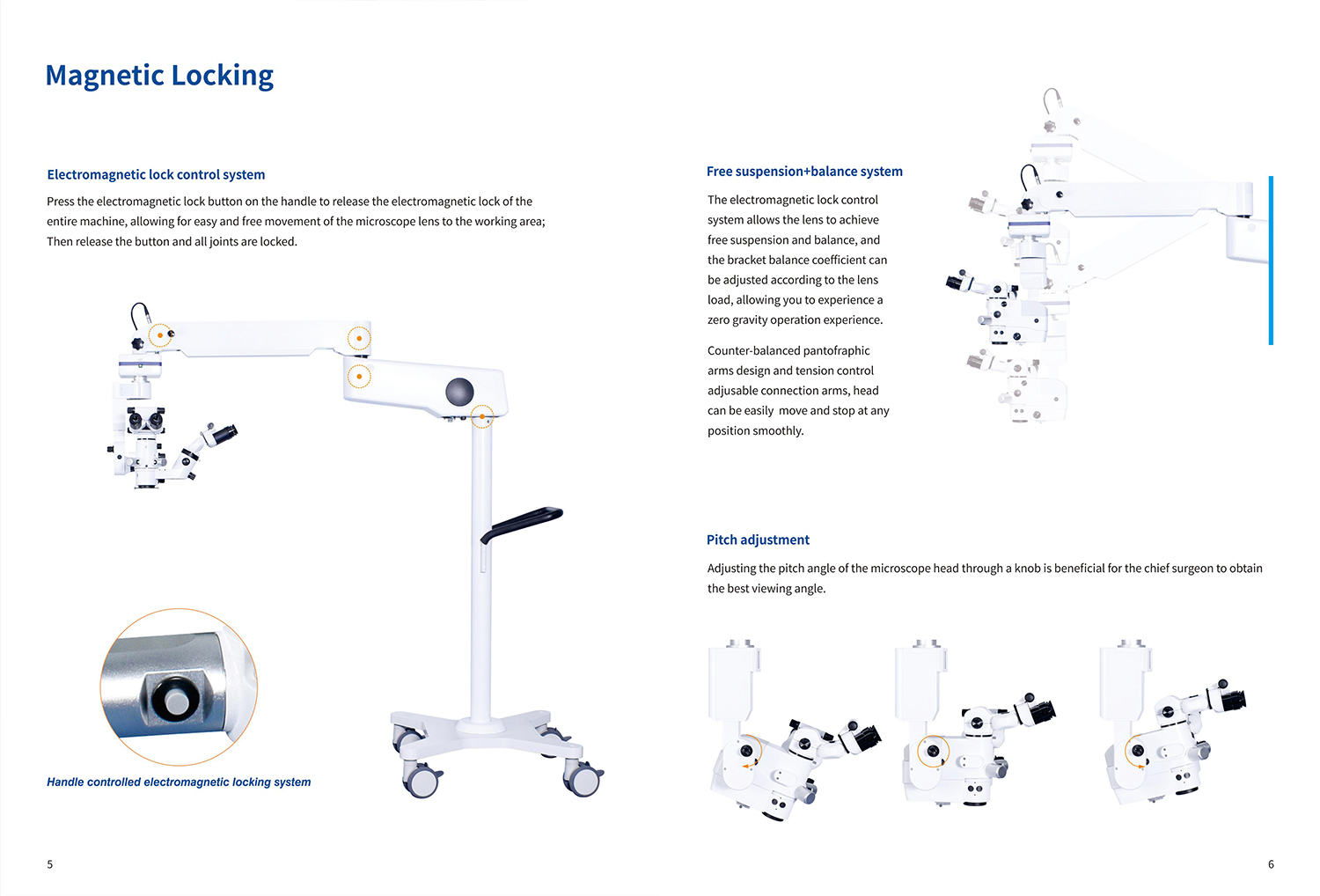

Brake system 3 sets electromagnetic brakes by handle controller

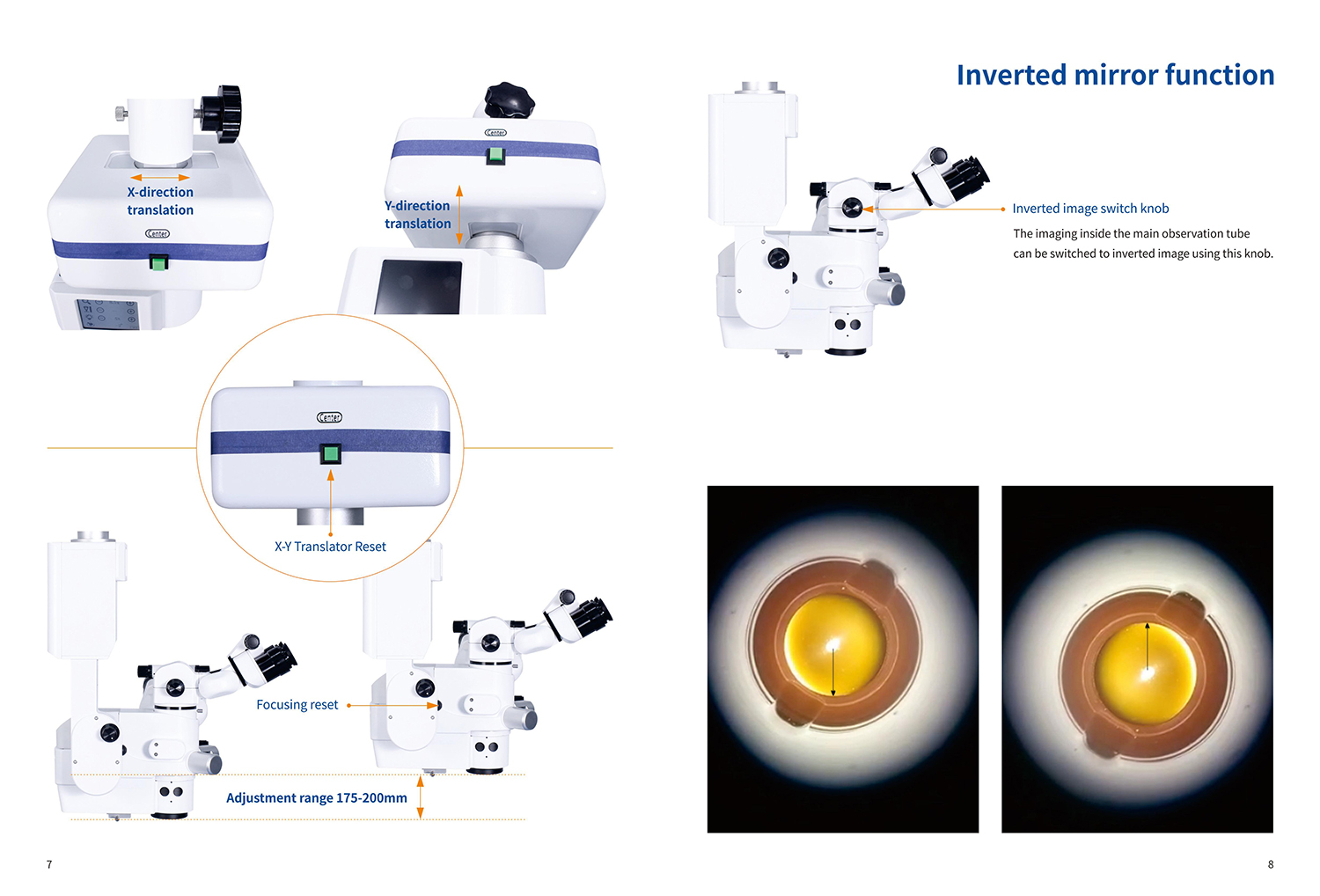

X-Y Translator 60mm
Focus 60mm
Footswitch 14 Functions: motorized zoom +/-, motorized focus +/-, take video, take photo, browse pictures, brightness adjust +/-, X-Y movement

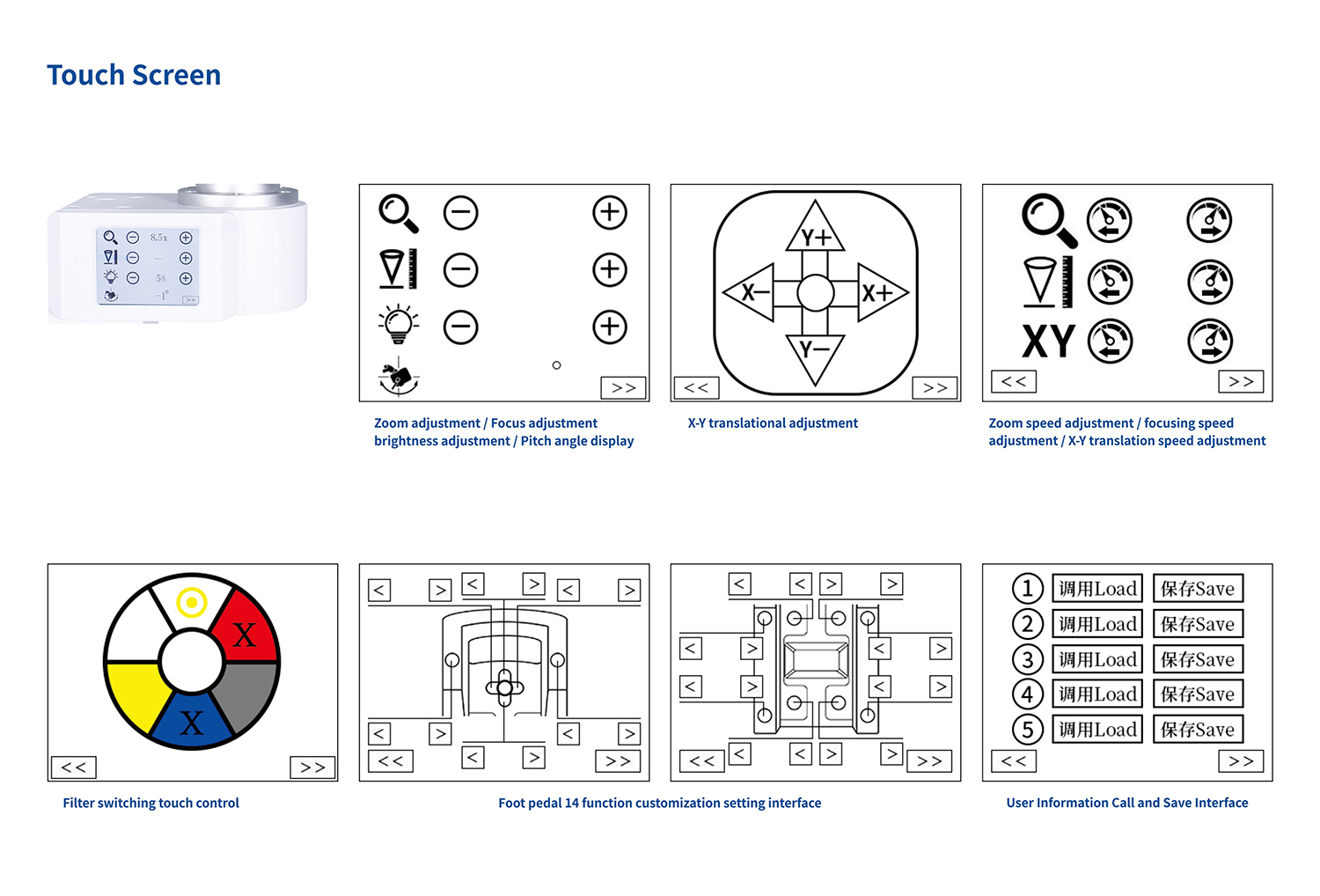

Touch screen 4-inch programmable touch-screen with control of microscope working specifications; indicator for main/backup illumination; user information setting and store
Assistant tube 5 steps independent focus and magnification adjustable
Illumination
System Coaxial illumination
Light source 2" LED light
Field of illumination F50mm
Filter Macular protection, Red reflex, blue UV filters, red-free light, heat absorbers, gray filter
Arm & Base
Mount Floor stand
Maximum arm extension 1508mm
Height from objective to floor 813mm < H < 1573mm
Base size 708×814mm
Brake system Four-wheel brake
Integrated Video System
Sensor Integrated 4K 1/1.8" CMOS camera, automatic store in USB disk
Frame rate 60fps
Effective pixels 3840(H) × 2160(V)
Output mode HDMI, DVI, SDI, LVDS, RJ45, USB
Others
Weight 160kg
Power socket 220V(+10%/-15%) 50Hz / 110V(+10%/-15%) 60Hz
Power consumption 100VA
Safety class Class I
Optional Accessories

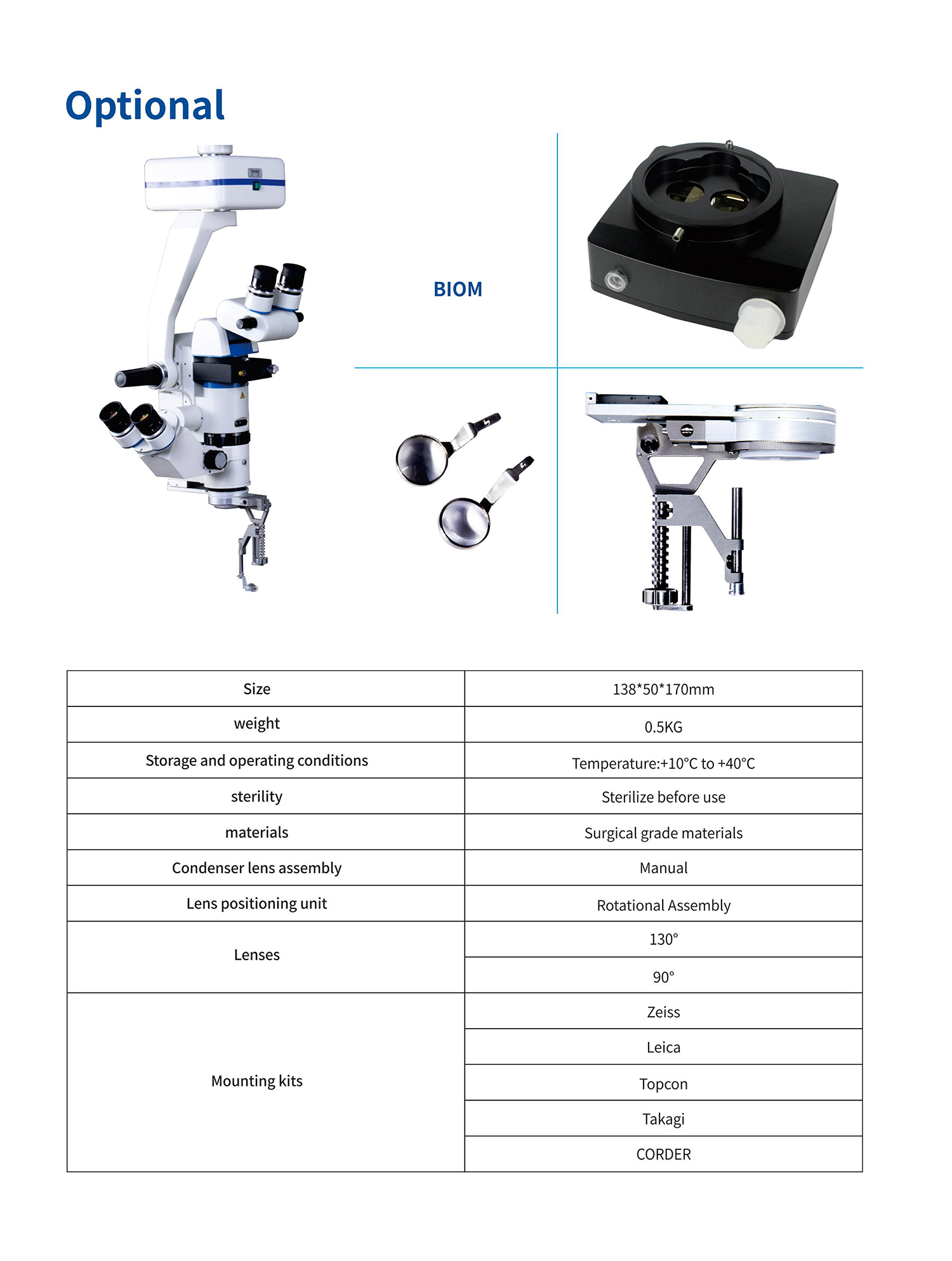

BIOM system Invertor holder, 90D & 130D
