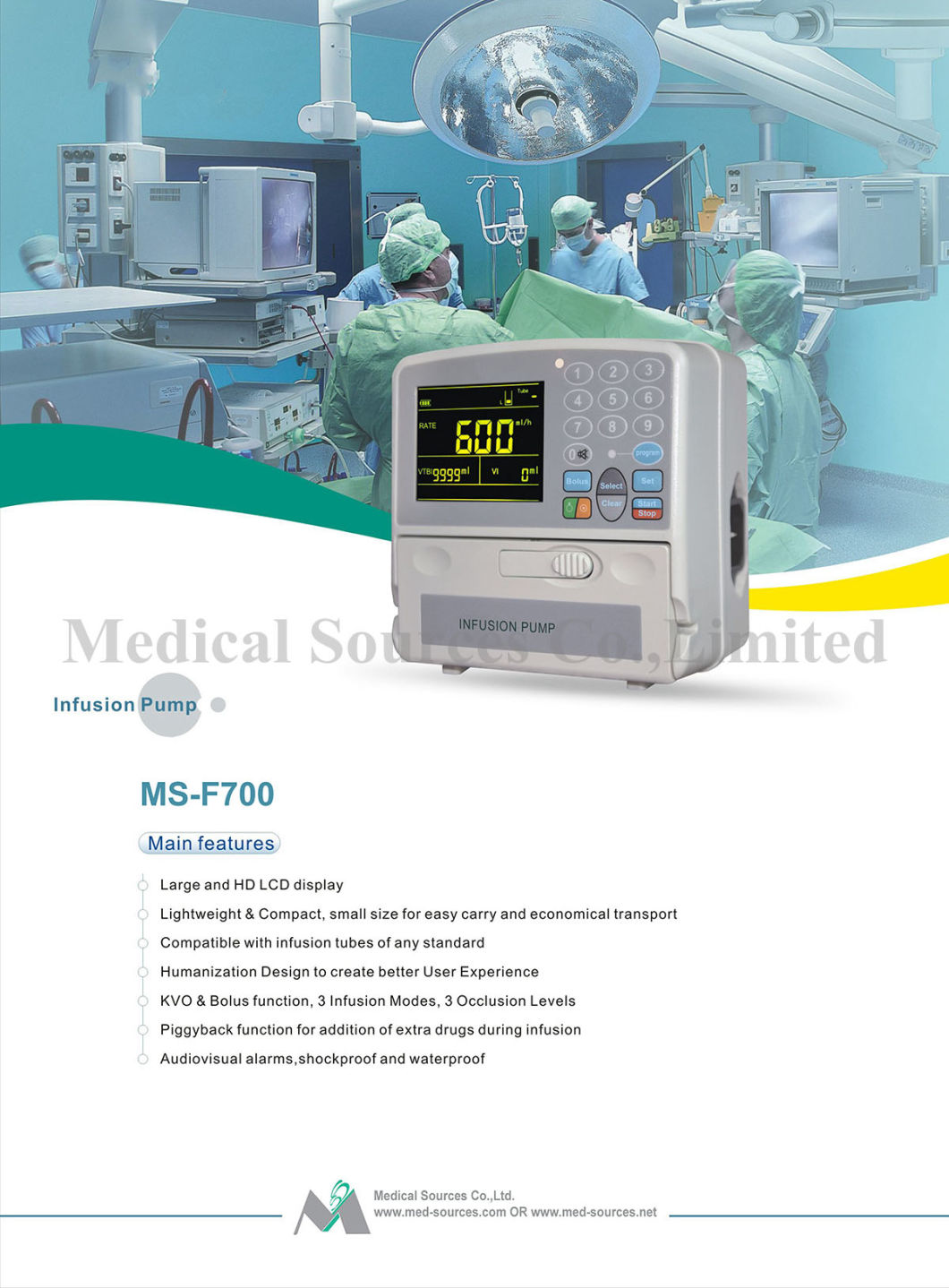

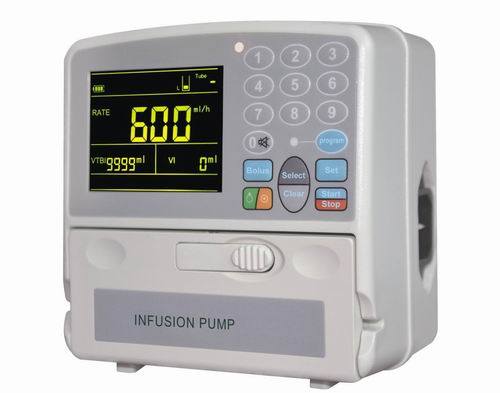

MS-F700 Infusion Pump
Characters:
01. 2.8' LCD
02. Rate mode, Drop mode, Piggyback mode
03. drug library (without)
04. Support a wide variety brands of infusion set
05. Infusion accuracy ±5%
06. Flow rate range 1-600ml/h
07. Bolus rate 600ml/h
08. KVO rate 1-5ml/h
09. 0 history records storage
10. multi Visual and audible alarms system
Specification:
Flow Rate range 0.1~1200ml/h Micro model:0.1~99.9ml/hr in 0.1 ml increments
Infusion Mode: Rate Mode,Drip Mode,time mode,body weight mode Optional:intermittent infusion mode,Durg library mode
Volume to be infused: 0~9999ml
Volume infused: 0~36000ml
Infusion accuracy: ±5%
Applicable insuion set: Support a wide variety brands of insuion set
KVO rate: 1~5ml/h
Bolus rate: 300~1200ml/h
Purge: 600ml/h
Air bubble detection: Ultrasound sensor detection with four levels of air in line alarm adjustable
Occlusion pressure: 3 adjustable occlusion pressure setting:low,middle and high
Alarms: Visual & audible alarms:Door Open,Air-In-Line,Occlusion,Infusion completion,
Infusion close to finish,Start reminder function,Low Battery,Battery depleted,Malfunction and etc.
Compluter interface: RS232(Optional)
History Records: 1300 records
Power Supply:AC: 100~240V,50/60Hz DC:12V±1V
Battery recharge time: 10h with poer on,3h with power off
Power consumption: 25VA
Mode of operation: Continuous
Dimensions: 145x100x120mm(LxWxH); Weight: 1.4kg
OperationCodintion:Temperuare:
5ºC~+60ºC,RelativeHumidity:10~95%,Atmosphere:pressure:50~106kPa
Storage Conditions:Temperature:
-5ºC~+45ºC,Relative Humidity:10~95%,Atmosphere Pressure:50~106kPa
