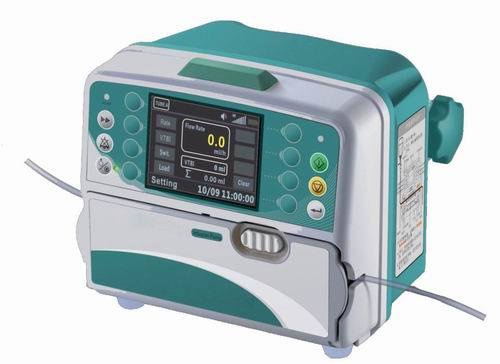

MS-F800A Infusion Pump
Feature&Functions:
Compact and light weight design
Softkey design,easy to operate
Top indicatior light indicating insufion status
Load directly last infusion rate and volume limit
Adjustable buzzer volume
Three adjustabel occlusion pressure settings
Free flow protection
Double CPU Ensureing safe insfusion
Remable pump body for easy cleaing
Specifiation:
Infusion Mode: Rate Mode,Drip mode(ml/h and drops/min can be switched)
Flow rate range: 0.1~1200ml/; Micro model:0.1~99.9ml/hr in 0.1 ml increments;1~400drops/min
Volume to be infused: 0~9999ml
Volume infused: 0~36000ml
KVO rate: 1~5ml/h
Infusion accuracy: ±5%
Purge: 600ml/h
Bolus rate: 300~1200ml/h
Applicable insuion set: Support a wide variety brands of insuion set
Air bubble detection: Ultrasound sensor detection with four levels of air in line alarm adjustable
Occlusion pressure: 3 adjustable occlusion pressure setting:low,middle and high
Alarms: Visual & audible alarms:Door Open,Air-In-Line,Occlusion,Infusion completion, Low Battery,Battery depleted,Malfunction and etc.
Battery: Rechargeable lithium polymer battery,7.4V,1900mAh which can support 6 hours at 25ml/h
Battery recharge time: 10h with poer on,3h with power off
Power Supply: AC:100~240V,50/60Hz DC:12V±1V
Dimensions: 145x100x120mm(LxWxD);Weight:1.4kg
Power consumption: 25VA
Operation Codintion:Temperuare:
-5ºC~+60ºC, Relative Humidity:10~95%,Atmosphere pressure:50~106kPa
Storage Conditions:Temperature:
-5ºC~+45ºC, Relative Humidity: 10~95%, Atmosphere Pressure:50~106kPa
