MS-LNG10 Liquid Nitrogen Generator

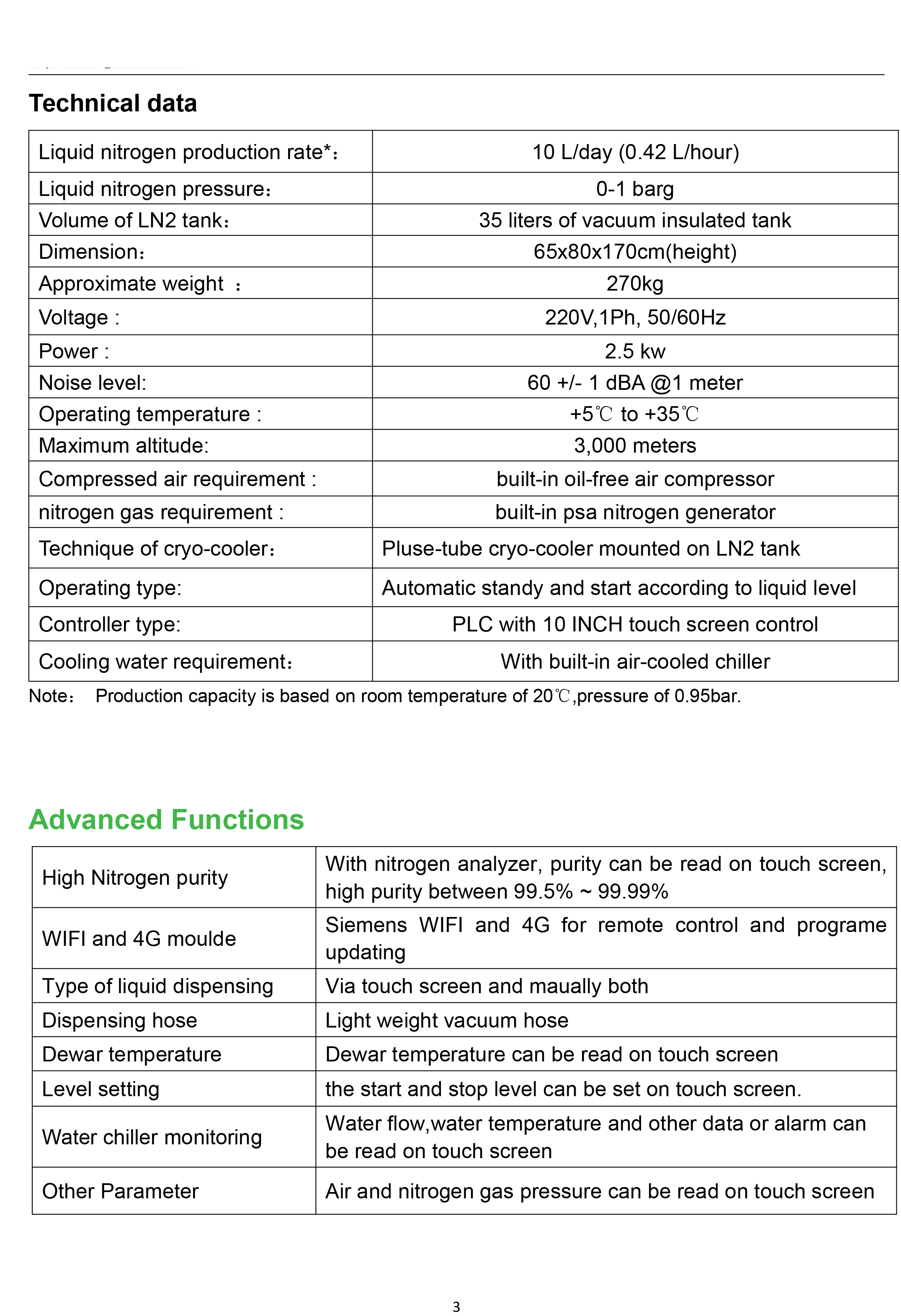

Technical specification
Introduction

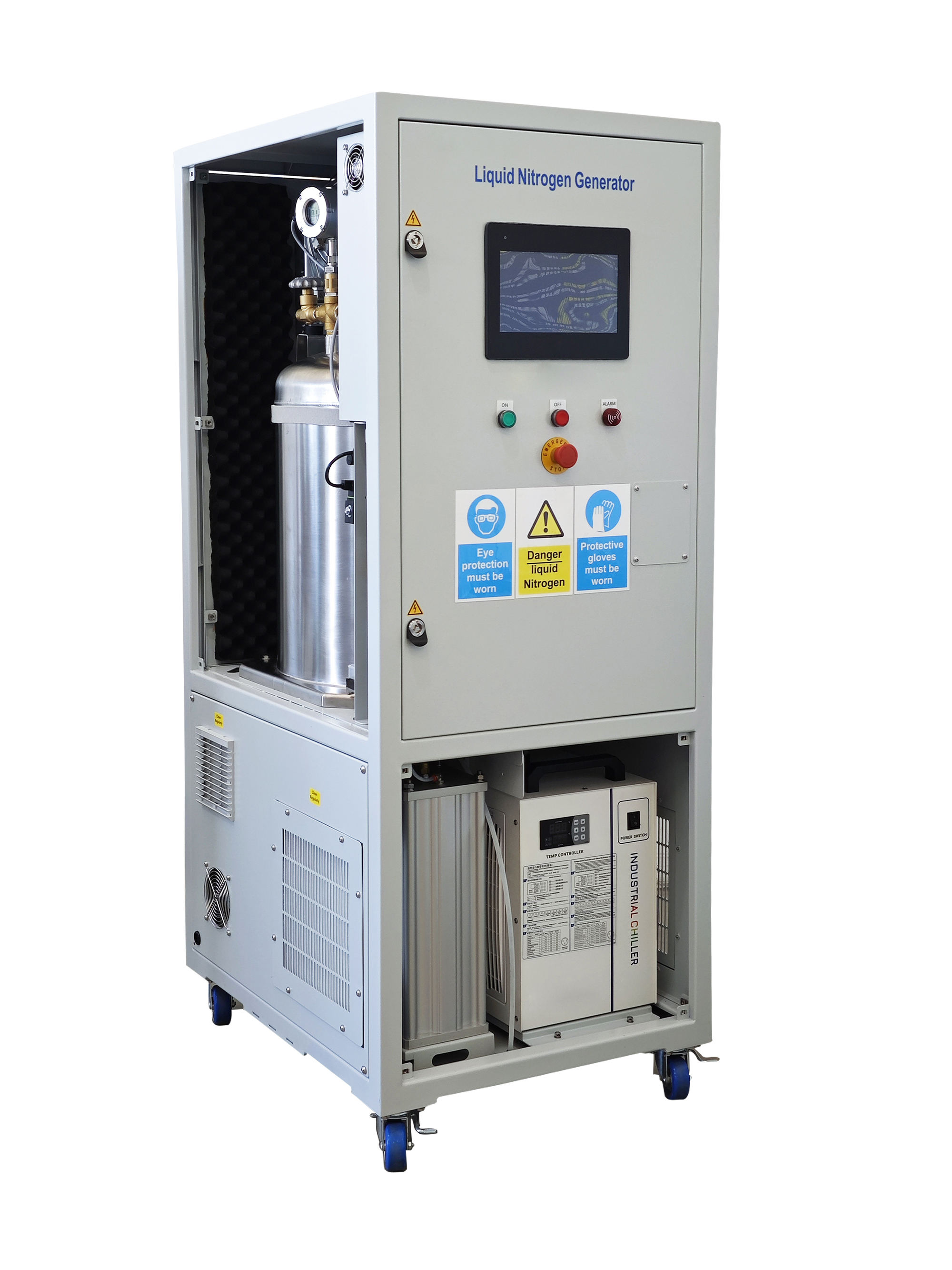

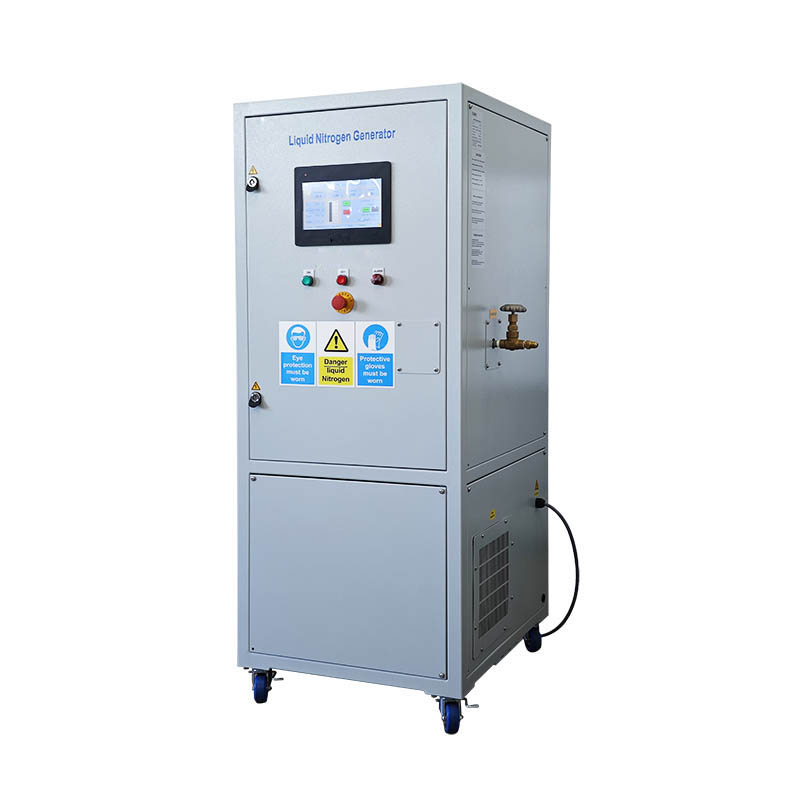

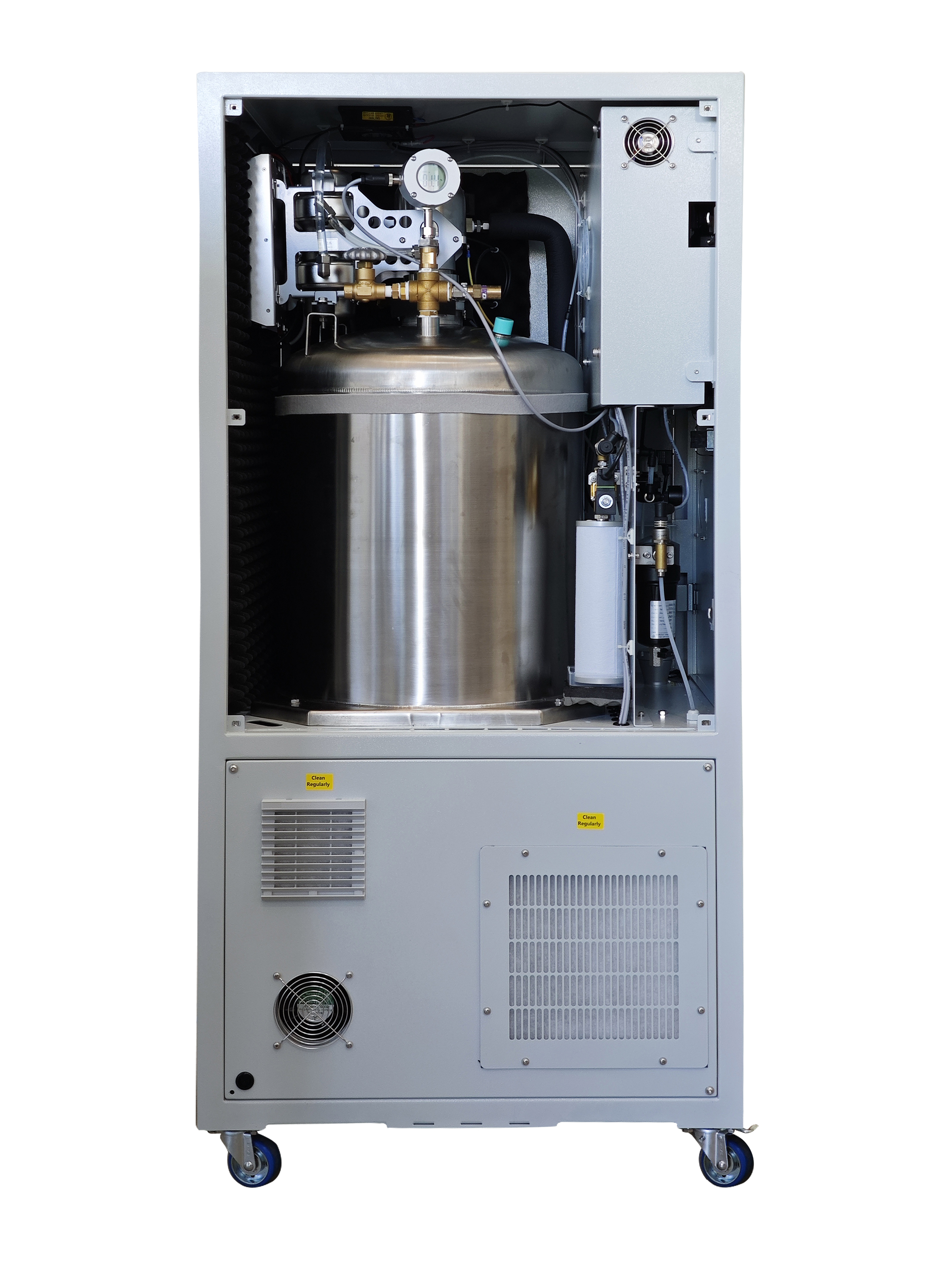

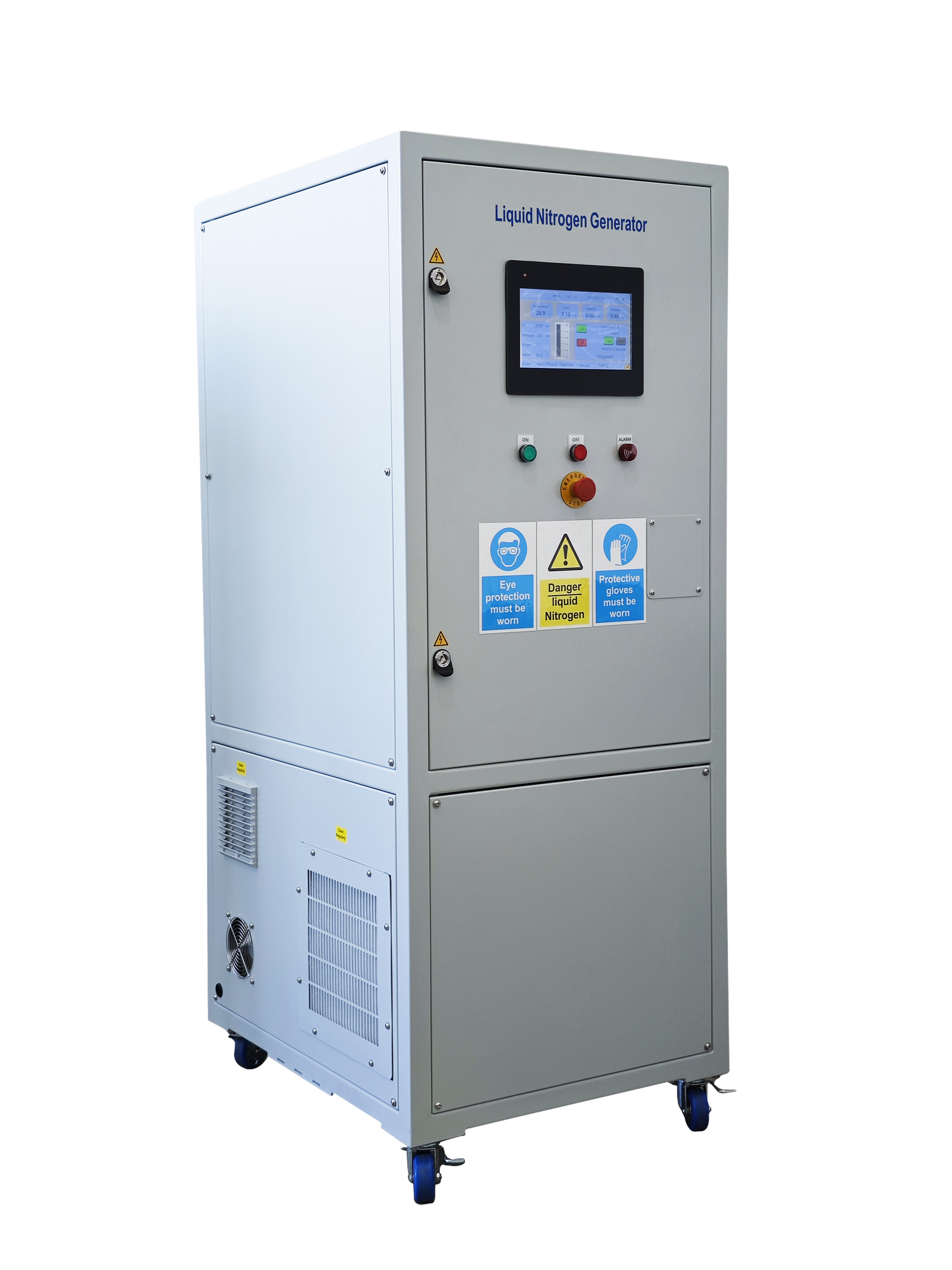

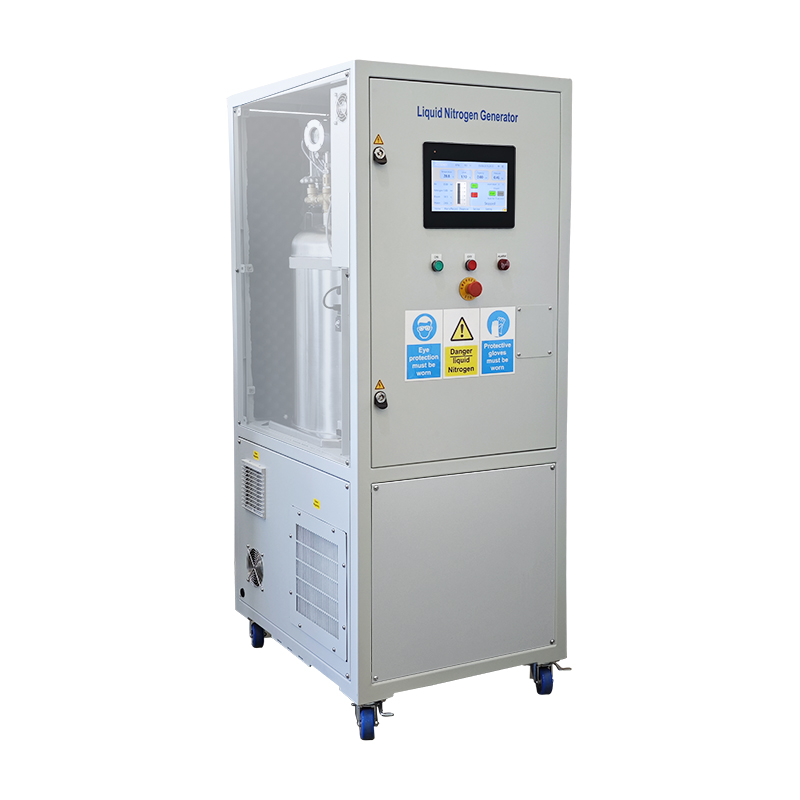

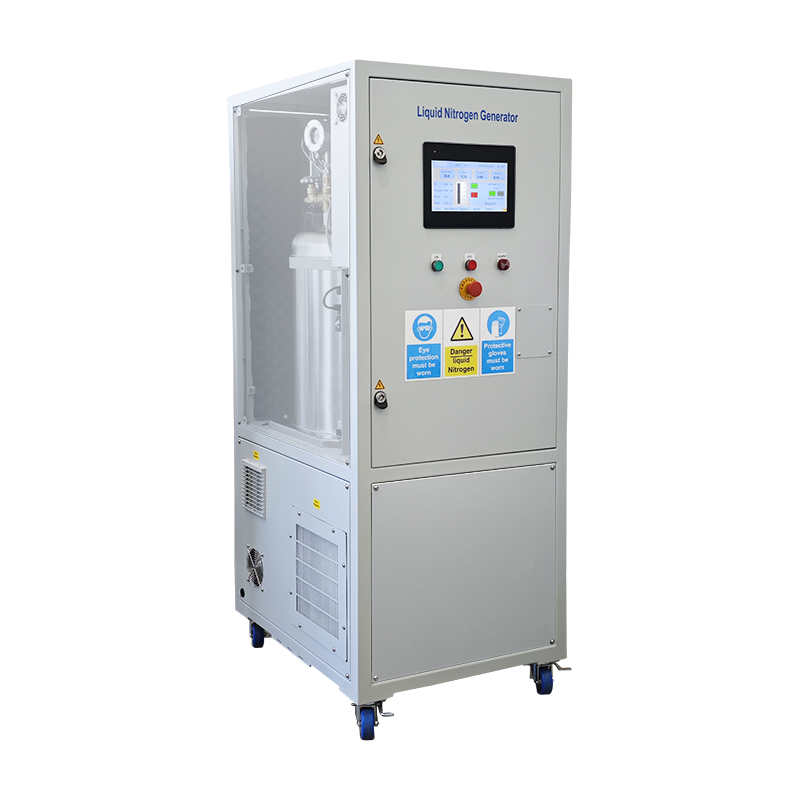

MS-LNG10 is a plug-and-play type liquid nitrogen generator. Integrated with oil-free air compressor, PSA nitrogen generator, cryo-cooler and vacuum dewar tank.

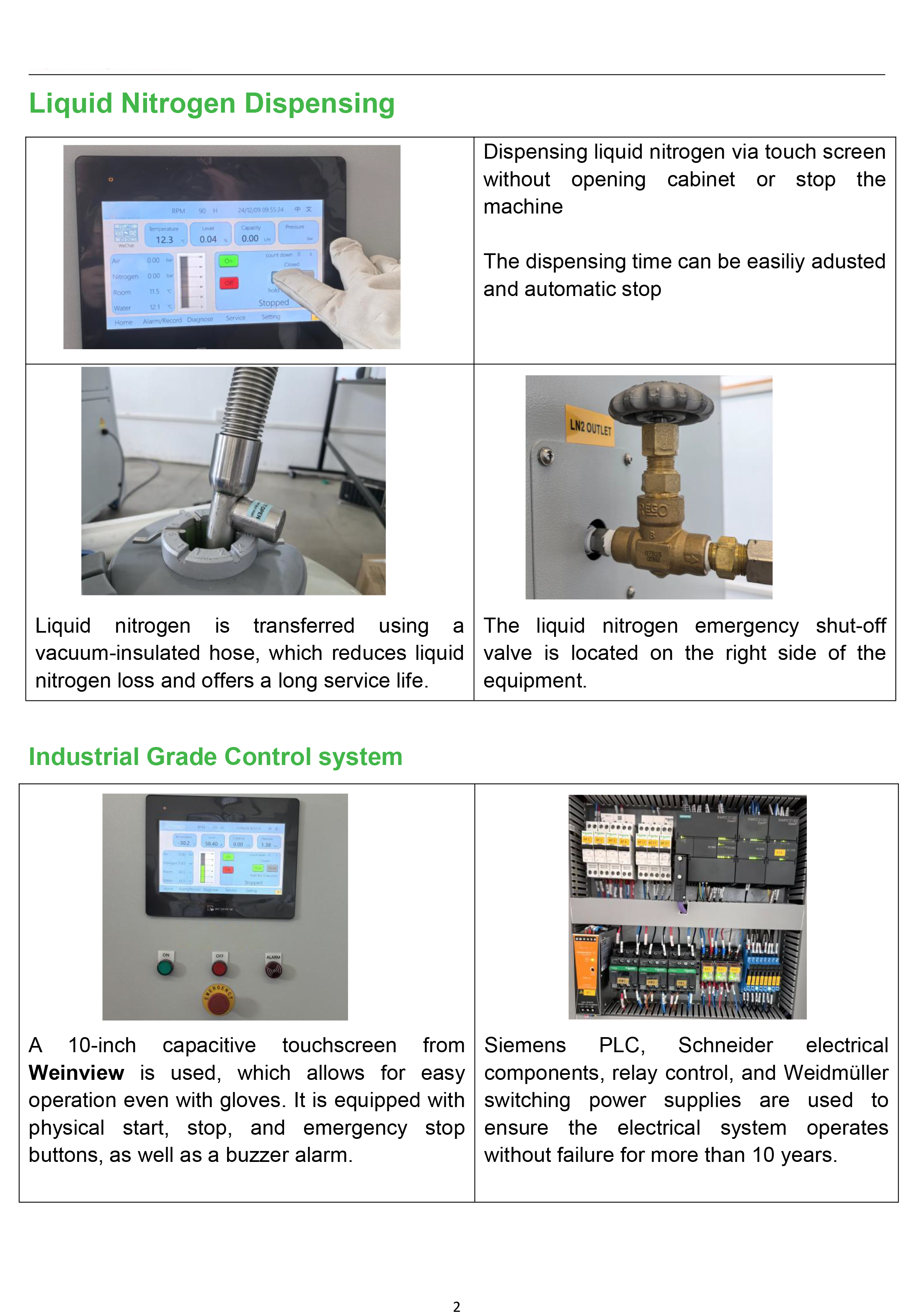

Controlled by PLC, liquid nitrogen can be produced within several hours at a touch of screen without complicated operation.
Based on advanced pluse tube cryo-cooler technique,the production rate will not be significantly decreased overtime. Combined with our innovative PSA nitrogen system,the generators can be used for many years with minimum maintenance requirement and maintenance cost. Built in reliable capacitance liquid level gauge,you can read and set level start/stop value on touch screen panel.
