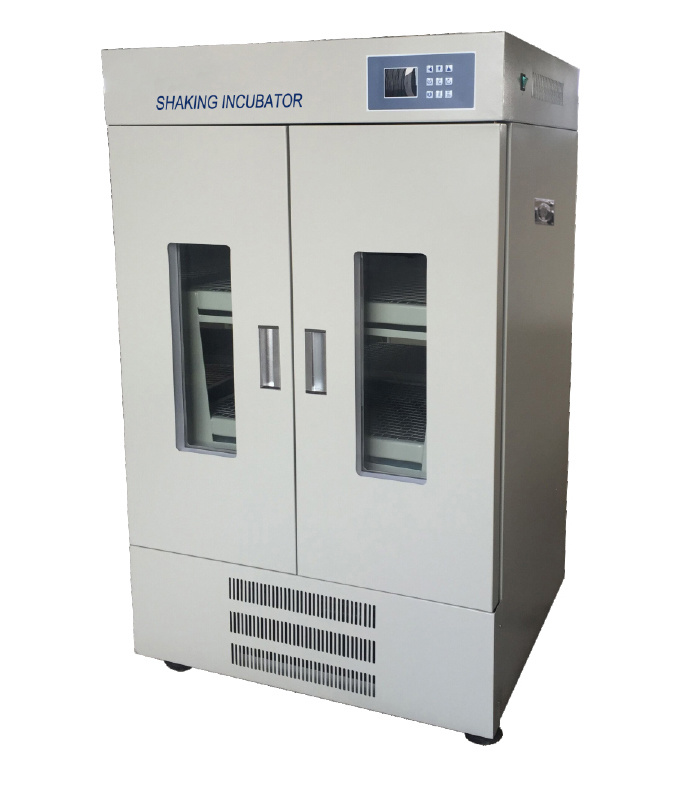

Total Temperature Shaking Incubator
1.Three-dimensional self-balancing eccentric drive mechanism
2.Black and white pen section of liquid crystal display
3.Brushless motor control, long service life
4.Temperature is controlled by Microcomputer controlling
5. Temperature overshoot, faster stabilization time, better control precision etc..
6. Speed of the brushless motor control with high reliability
7. With module fault, motor stall, Holzer wrong, bus voltage undervoltage, overvoltage, communication
fault alarm function
8 With oxggen replenishment function
9 Optional RS485 communication
| Model | MS-LZQ220 | MS-LZQ120 |
| Max capacity | △100ml×160 or △250ml×90
Or △500 ml×80 or△1000ml×36 | △100ml×160 or △250ml×90
Or △500 ml×80 or△1000ml×36 |
| Tray size (mm) | 960x560 | 960×560 |
| Tray NO. | 2pcs | 2pcs |
| Standard configuration | 500ml×80 | 500ml×80 |
| Temperature range | 4ºC~60ºC | RT+5ºC~60ºC |
| Temperature fluctuation | ±0.5ºC | ±0.5ºC |
| Heating power | 350W | 350W |
| Cooling power | 570W | ――― |
| Oscillation frequency | 50~300 rpm | 50~300 rpm |
| Frequency accuracy | ±1 rpm | ±1 rpm |
| Amplitude | Ø0mm | Ø0mm |
| Timer | 0-9999min | 0-9999min |
| power | 220V 50Hz | 220V 50Hz |
| Dimension(mm) | 1175×855×1620 | 1175×855×1620 |
| Package(mm) | 1280×970×1700 | 1280×970×1700 |
| G.W./N.W. | 250/200kg | 230/180kg |
