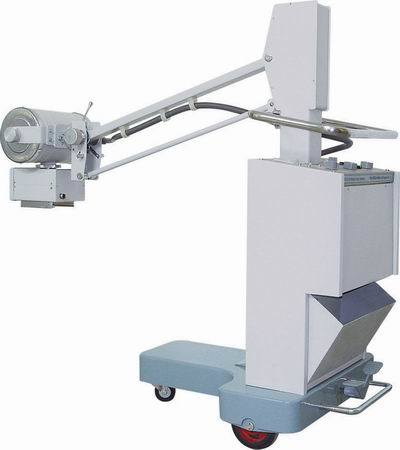

MS-M1200 Mobile X-ray Equipment

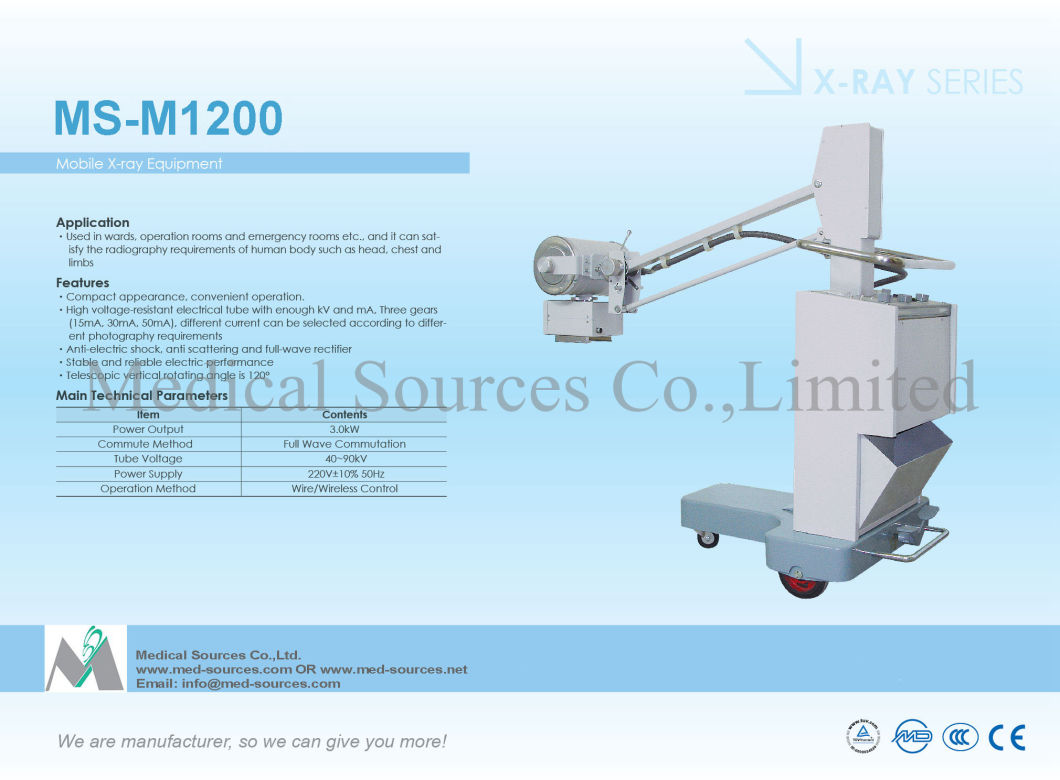

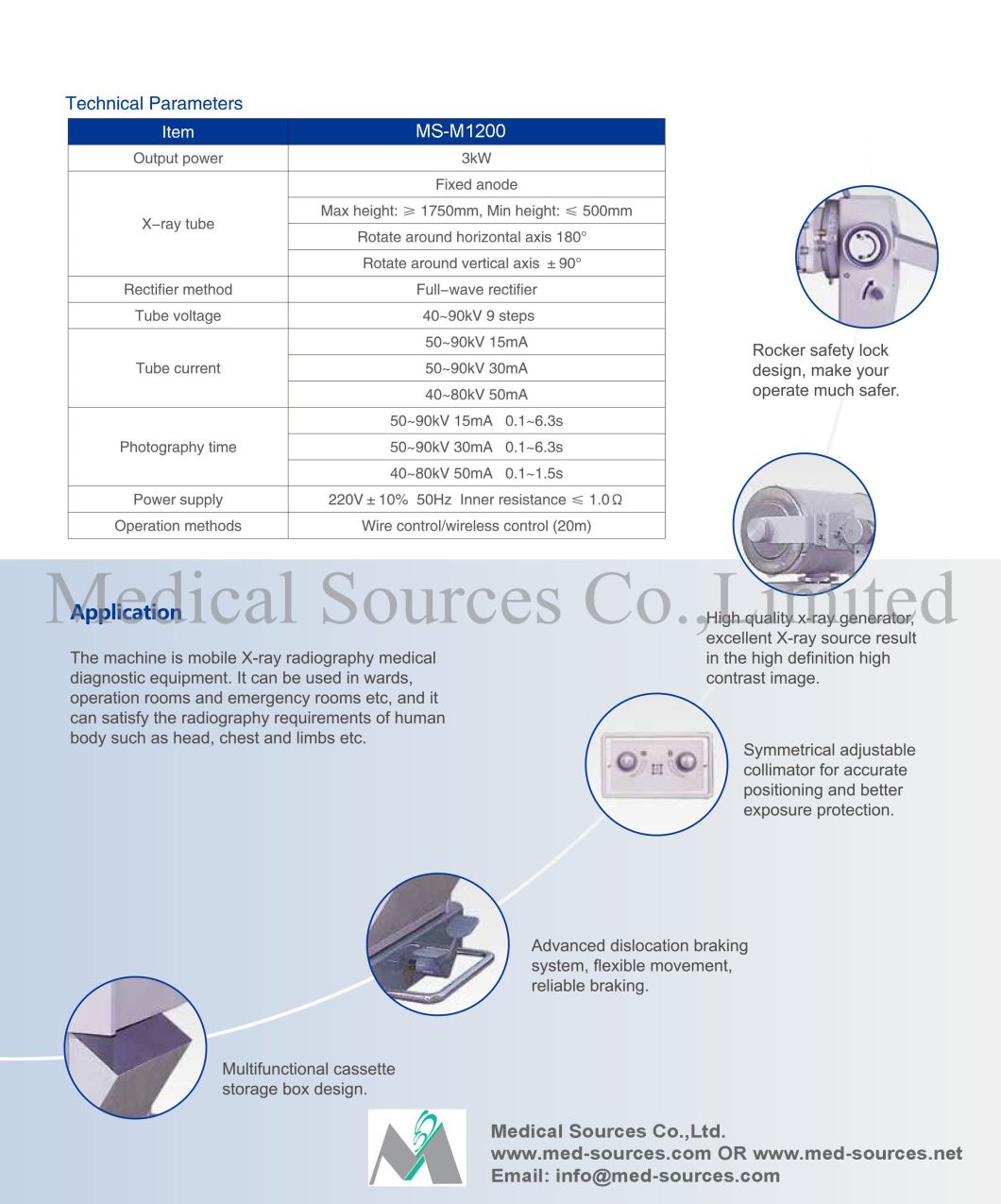

Specifications
Power Output :3KW
X-ray Tube : Fixed anode
Commute Method: Full wave commutation
Tube Voltage : 40~90KV
Tube Current : 50~90KV 15mA
50~90KV 30mA
40~80KV 50mA
Exposure Time::50~90KV 15mA 0.1~6.3s
50~90KV 30mA 0.1~6.3s
40~80KV 50mA 0.1~1.5s
Power Supply: 110V±10% 60Hz or 220V±10% 50Hz
Operation Method: : Wire/Wireless control
Packing Details:1220mm×750mm×1460mm
N.W.137kgs G.W.200kgs
Features :
1. Structure designed based on anthropotomy, with beautiful appearance, and easy to operate.
2. With high frequency inverter to emit high quality X-ray and low dose on skin, and ensure excellent definition and contrast of pictures.
3. Color LCD display, automatic X-ray tube test with memory for convenient operation.
4. With a high-quality knockdown x-ray generator to reduce irradiation, which is much safer to environment and operator.
5. Electrically controlling the ascending & descending of the rocker, and it can be left and right swing at a range of ± 90°, which enables more flexible and more convenient radiograph.
6. With a built-in backup battery to enable work after power interrupted, and without
any special requirement to power supply, and with multifunction of safeguard
