(MS-M540) Anestesia Machine Hospital Vaporizer Anesthesia with Ventilator

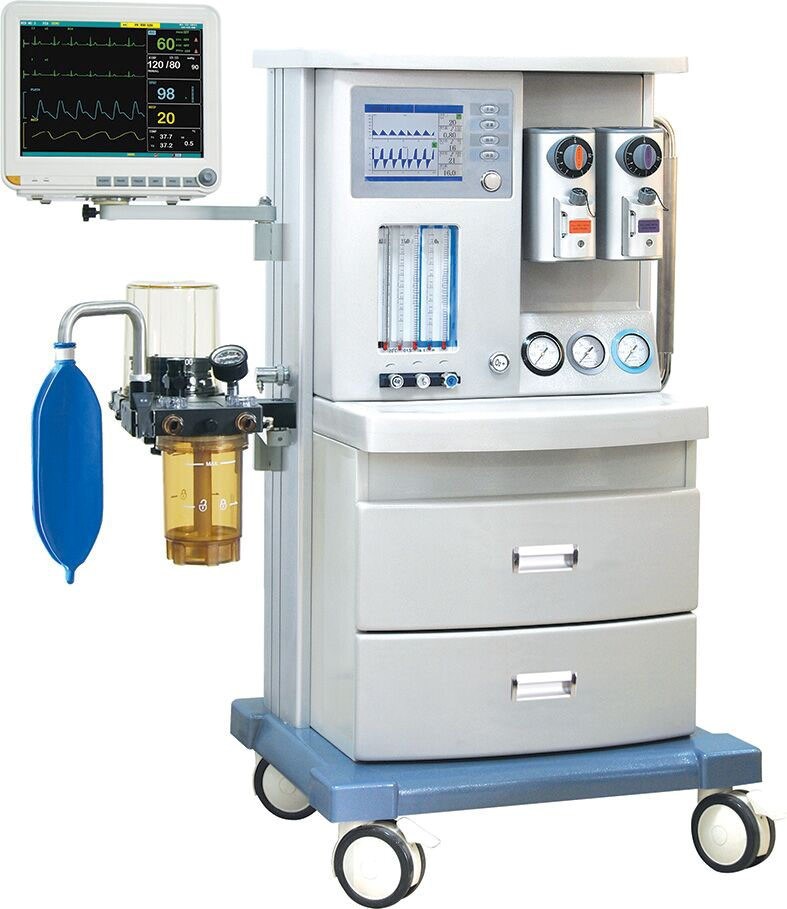

MS-M540 Anesthesia Machine

Characters:
Dimensions(HxWxD):130cm x 100 x75cm
Weight:115 Kgs(Including Vaporizer)
Power:220/50Hz,110V/60Hz
Backup Power: 3 hours
Display:8.4" TFT Display

Ventilator:
Drive Method:Pneumatically Driven&Electric Control,Closed,Semi-Closed&Semi-Open
Tidal Volume:Ajustable Range:50-1500 ml,Display Range:0-2000ml
Respiratory Rate:1-100 bpm
Operating Modes: Manual,Standby, Intermittent Positive Pressure Ventilation(IPPV),
Synchronized Intermittent Positive Pressure Ventilation(SIPPV), Valume Controlled Ventilation(VCV), Intermittent Mandatory Ventilation(IMV), Synchronized Intermittent Mandatory Ventilation(SIMV)
Pressure Range:5-70hPa
Trigger Sensitivity:Flow:1-30L/min, Pressure:-10~10cmH₂O(Electric Controlled)
SIMV Rate:1-20bpm
Inspiration/Expiration Ratio(I:E):8:1.-1:10(Capable of Inverse Ratio Ventilation)
Insiratory Time:0-2s
Inspiratory Plateau:0-1s
Electric PEEP:0-20cm H₂O
Sigh Function:1 Sigh Breth every 80-160 breath

Gas System:
Flowmeter: O₂: 0.1-10L/min,N₂O:0.1-10L/min,Air:0.1-10L/min
Fresh-Gas Flow:0-10L/min
Gas Supply:O₂,N₂O,Air:0.32-0.6Mpa
O₂ Flus:25-75L/min
Anesthesia Gas Scavenging Sytem(AGSS):Optinal

Monitoring:
Minute Volume(MV),Tidal Volume(VT),Breathing Frequency, Peak Pressure, PEEP, Airway Resistance, Spontaneous Inspiration Rate, Airway Resistance, Lung Compliance&Power Supply

Alarm:
Audible&Visual alarm for Tidal Volume,Airway Pressure,Oxygen Concentration,Asphyxia, Power Failure, Oxygen Failure,Alarm Query Function

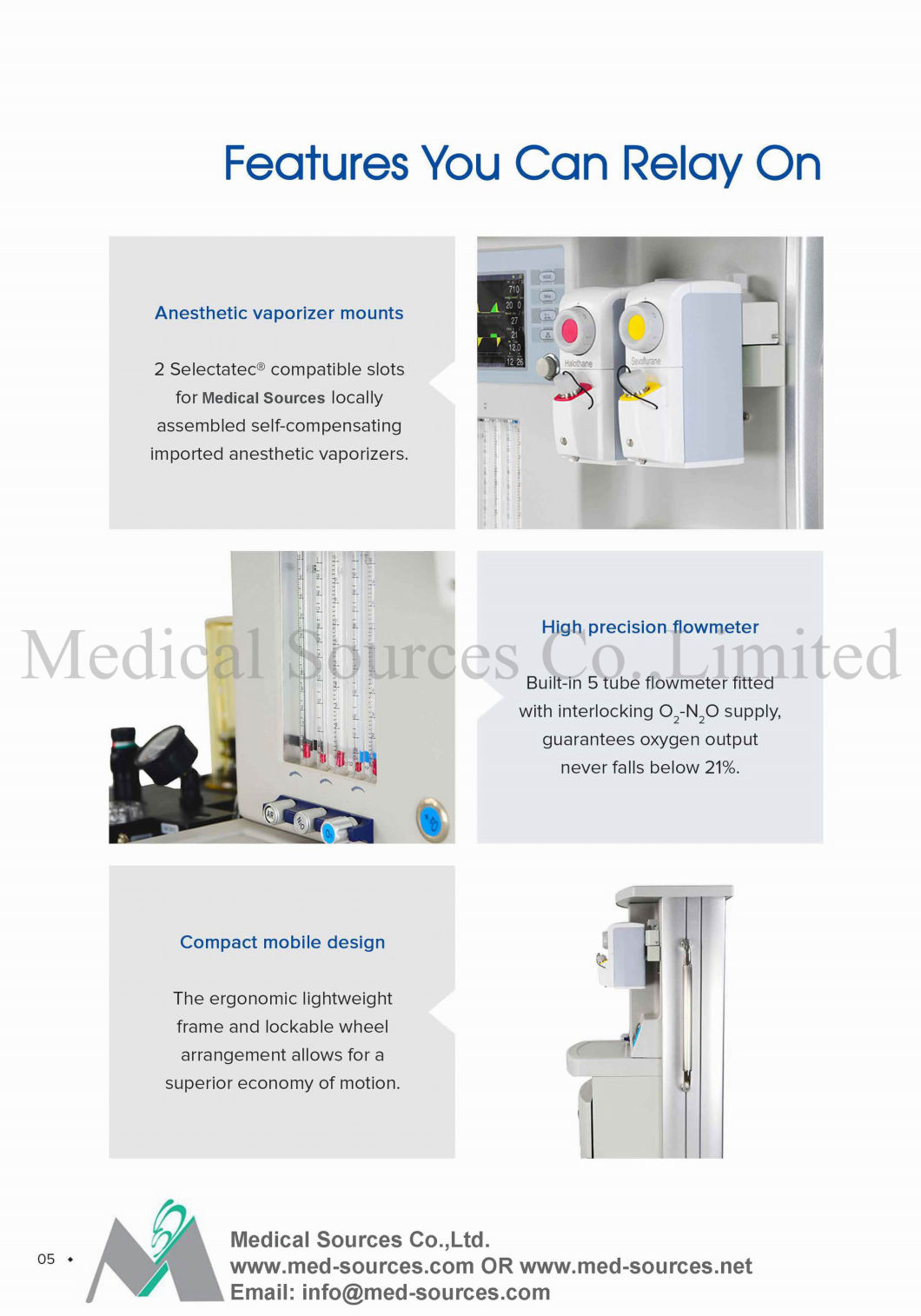

Vaporizers:Selectatec Compatible Vaporizer Mounts
Vaporizer Concentration:0-5%
Absorber Volume:1.5L
