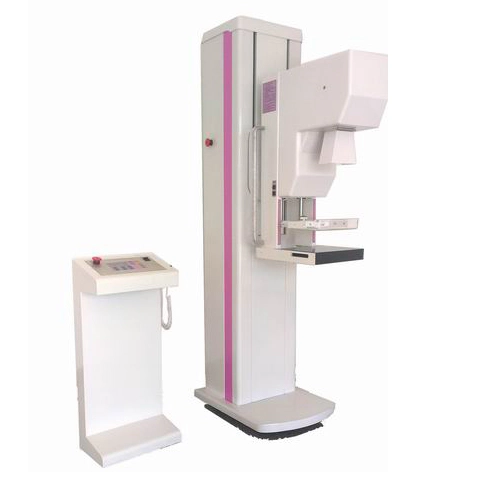

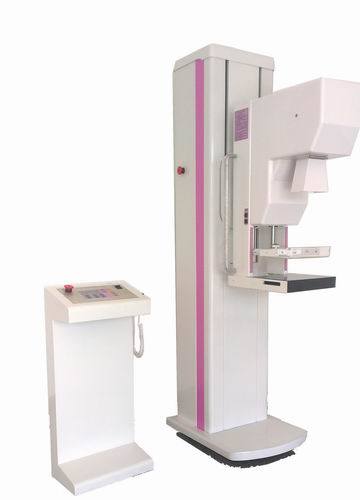

MS-M8200 Mammography System
Character:
1.The MS-M8200 high frequency molybdenum target mammography machine are featured with very small focus,high resolution,low dosage and micro-computer controlled.
2.It is a high performance breast screening machine for iconography examination of mammary diseases and with high sensitivity for mammary benign lumps,nodes,calcified points and early detection of malignant.
3.Easy to use user interface design with finger touch operation panel,fast reachable buttons and foot switch.
4.Streamlined compressor plate provides the intact breast images.
High quality carbon fiber catridge table with low X-ray absorption that reduces scattered X-ray.
5.The MS-M8200 series provide X-ray tube options for the best performance/price ratio:
Fixed anode tube
Rotational anode tube
6.The 80KHz high frequency generator designed with advanced IGBT high-frequency inversion technology and quasi-resonant pressure boosting technology.
7.It provides high efficiency,stable voltage,pure output spectral line that produces high-definition images.
8.Reliable and durable mechanical design provides:
Electrical up/down moving smoothly and quiet.
360 free rotation C-arm provides imaging flexibility.
Technical Paramters:
Inverter Frequency:80Hz
Input Power:110V/220V,50/60Hz
Power Rating:6Kw
Focal:Large Focal Point:20-38Kv/10-510mAs;Small Focal Point 20-35Kv/10-100mAs
Focal Spot:Dual Focus:0.2/0.4mm
Cassette Image Receptor:18x24cm
C-ARM:Vertical Movement 580mm;Rotatings Degree: +175°~-180°; SID: 650mm
Anode:Rotated
