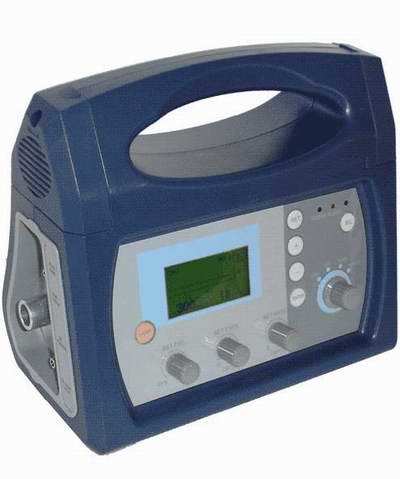

MS-P200C Portable Ventilator
Physical Specifications
Dimensions Carrying packages Dimensions Packaging Dimensions
Width: 300mm Width: 460mm Width: 620mm
Depth: 160mm Depth: 200mm Depth: 240mm
Height: 230mm Height: 400mm Height: 410mm
Weight: 3Kg Weight: 7Kg Weight: 11Kg
Environmental Specifications
Operating Requirements
Storage/Shipping Requirements
Temperature: 5 to 40ºC
Temperature: -20 to 70ºC
Relative Humidity: less than 80%
Relative Humidity: less than 93%
The atmosphere pressure: 70 to 106 kPa
The atmosphere pressure: 70 to 106 kPa
Electrical Specifications
Input Voltage Requirements
AC Voltage: 110V~240V
DC Voltage: 12V
Inlet Battery:12V , 2Ah (Can be used for 8 hours)
Frequency: 50Hz/60Hz
Power: 2A
Pneumatic Specifications
Pneumatic Specifications
Oxygen Inlet
Pressurized Oxygen: 0.4MPa medical oxygen or use 2L oxygen cylinder (Choice of suppliers)
Performance Specification And Tolerances
Controls
Power:ON/OFF
Modes: CMV(IPPV) A/C(SIPPV) SIMV SPONT PEEP(Choice of suppliers)
Tidal Volume: 50~1200ml
Breath Rate: 5~60 bpm
PEEP: 0~2KPa
O2%: 45~90%
Sigh: 1~10 per 100 breath
Peep: 10-60 hpa
Trigger Level: -10~0hpa
Over Pressure Relief: <6kpa
Alarms and Indicators
High Pressure Alarm Limit: 2~6kpa flash, red indicator
Low Pressure Alarm Limit: 0.2~2kpa Red indicator
Alarm Silence: 120 sec
Monitors
Tidal Volume
Total Breath Rate
Main Circuit Pressure
Wave Display: Main Circuit Pressure
Packing List:
Ventilator: 1pc
Oxygen Cylinder: 1pc 2.5L can be used for 1 hour
Breath Circuit: 1pc 1.2m
Carrying Package: 1pc all parts in it
Breath Value: 1pc
Mask: 1pc
Charger: 1pc
Battery: 1pc Can be used for 8 hours
Wrench: 1pc
Oxygen Pressure Reducer: 1pc For Nomal Oxygen Cylinder
Lung Simulators: 1pc
Hand Book: 1pc
CD For Operation: 1pc
