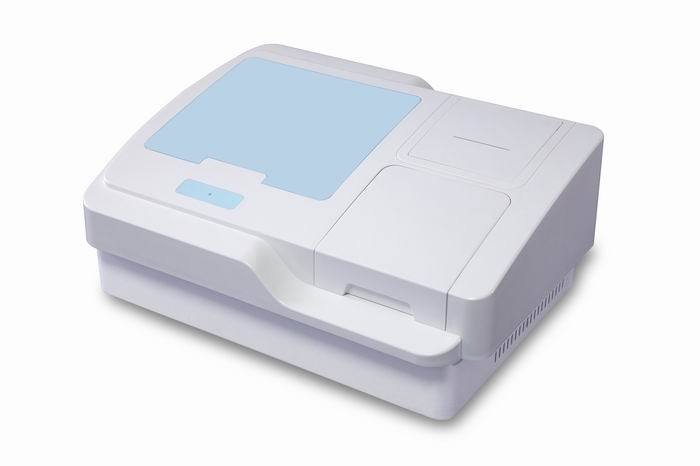

MS-R500 Microplate Reader
Main Features:
Single or dual wavelength measurement, comprehensive qualitative and quantitative data-evaluation functions with cut-offs, curve-fits and transformation formulas
Proven optical system with 8 channel optical fiber scanning, auto plate centering system positions the center of the cell accurately
Performing 12 different tests just in one plate
Store 500test items an 10,000,000 test data
Multi-forms in result output including patient comprehensive report
Auto lamp adjustment and auto calibration,improve the efficiency of the sytem and reduce the cost
With USB interface,easily connect to PC.
Technical Specification:
Microplate Types:96/48 well plate
Photodetector Silicon Photodiode
Ligh Source: 8v/50W controlled tungsten halogen lamp
Wavelength Range：400nm-850nm
Standard Filters:405,450,492,630nm&4 optional
Reading Range:0.000-4.000A
Resolution:0.001A
Accuracy:±0.008A
Reproducibilituy: ≤0.2%
Stability: ±0.003A
Reading Speed:Single Wavelength≤3s;Double Wavelength≤6s
Shaking:Linear Shaking,3 speeds
Interface connnetions: USB
Power Supply:100-240V,50-60Hz
Dimension:460(L)X350(W)X200(H)mm
Net Weight:7kgs
