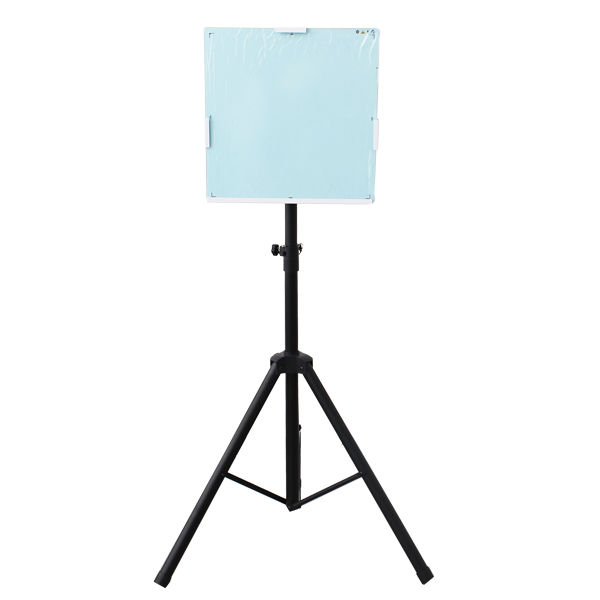

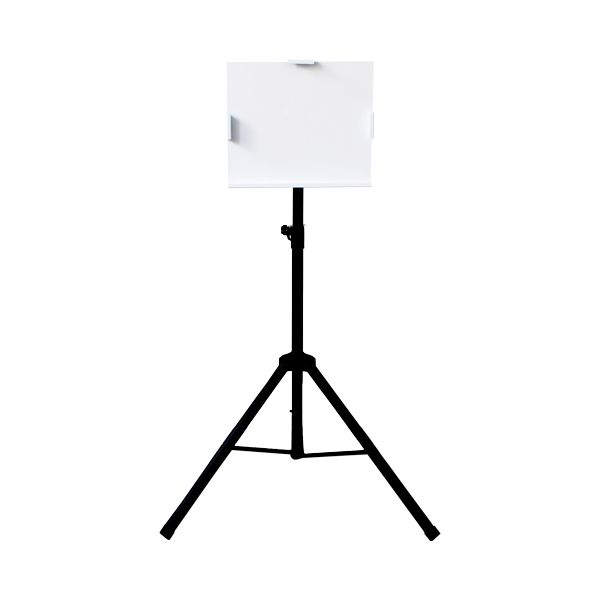

MS-S170P Portable bucky stand
1. Model: MS-S170P
2. Application: suitable for the head, chest, abdomen, pelvis and other parts ofthe human body for
photographic examination
3. Function: This device can be adapted to different sizes of ordinary X-ray film cassette, CR IP
board and DR Flat Panel detector.
4. Features:
① The overall weight is light, suitable for field rescue and rural physical examination.
② Tool free installation, simple operation.
③ Triangular structure, stable structure.
④ Foldable, can be equipped with luggage, easy to carry out.
⑤ Small size, not limited by the environment.
5. Main technical parameters
① Suitable size: 17 "× 17" and 14 "× 17" (DR Flat panel detector, CR IP board, cassette) card slot
width suitable for thickness ≤29mm DR Flat panel detector, CR IP board and ordinary film cassette;
②Can be lifted up and down about 80cm, the upper edge of the film cassette can reach 2000mm, the
lower edge can reach 800mm.
③ Weight 5.5kg, folded height 100cm.
