MS-S170T Vertical Bucky Stand Type
Purpose: suitable for radiographic inspection of the human body’s head, chest, abdomen, pelvis and other parts

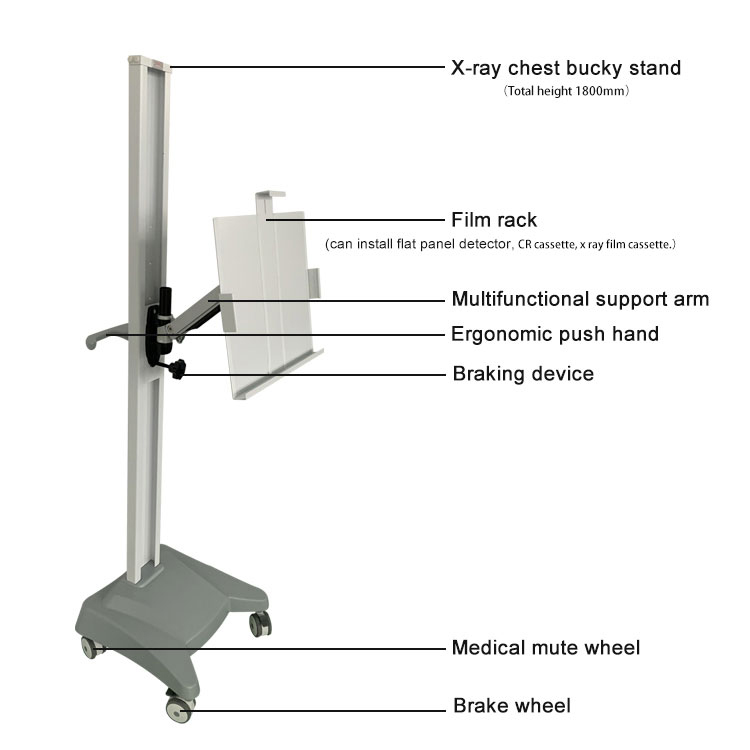

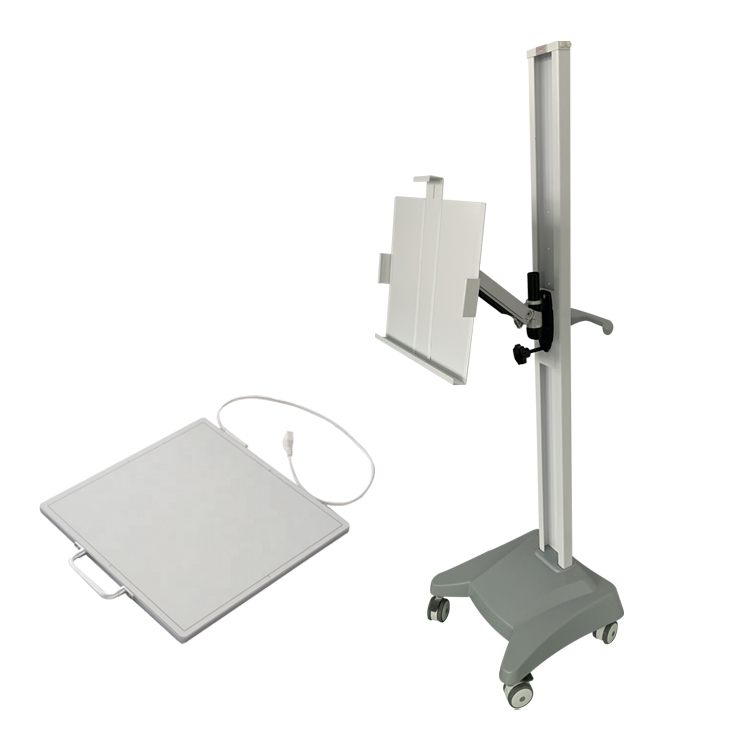

Function: This device is composed of a column, a sliding frame, a film holder, a support arm and a mobile base. It can be used with ordinary X-ray film cassettes of different sizes, CR IP boards and DR flat panel detectors.
Features: The overall weight is lighter and suitable for field rescue and rural physical examination.
item | value |
Model Number | MS-S170T |
Material | metal |
Height | 1800mm |
Height of handle | 960mm |
Base size | 480*480mm |
Max film size | 17*17(the card slot width is suitable for boards with a thickness of ≤ 29mm) |
Arm | Transverse 180 degrees(Swing about 30 cm up and down The upper edge of the cassette can reach up to 2070mm, and the lower edge can reach the ground as low as possible) |
