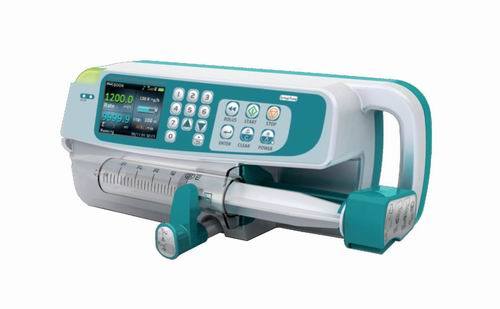

MS-S200 Syringe Pump
Large&Colourfull LCD Display
History Records
Rs232 interface
Adjustable buzzer volume
Anti-bolus function
Various Visual and audible alarms
90°rotatable pole clamp convenient for horizontal bar&Vertical IV pole
Unique syringe intelligent recognization technoloy
Dynamically display the pressure
Double CUP ensuring safe infusion
Specification:
Infusion Mode:
Rate mode,time mode,dose mode optional:intermittent infusion mode,Drug libratry mode
Applicable syringes:Various brands of sterile syringes:5ml,10ml,20ml,30ml,50ml/60ml
Syringe accuracy:±2%(after syringe correct calibration
Infusion Rate:
5 ml Syringe:0.1-150ml/h
10ml Syringe:0.2-300ml/h
20ml Syringe:0.1-600ml/h
30ml Syringe:0.1-900ML/h
50ml Syringe:0.1-1500ml/h
Volume to be infused:0~1000ml
Volume infused:0~9999.9ml
KVO Rate:0.1~2ml/h adjustable;Default value:0.1ml/h
Bolus Rate:
5ml Syringe:100~150ml/h
10ml Syringe:100-300ml/h
20ml Syringe:100-600ml/h
30ml Syringe:100-900ml/h
50ml Syringe:100-1500ml/h
Alarms:
Infusion completion,empty,Occlusion,near completion,Low Battery,Syringe Disengaged,No Acpower supply,Battery exhausted,Malfuncion etc
Power Supply:DC:12±1.2V;AC:100~240V,50/60Hz
Power Consumption:25VA
Nurse Call Alarm:Optional
Dimension:300x130x125mm(LxWxH)
Weight:1.8KG
Waterproof Level:IPx3
Occlusion Pressure: 40~160kPa
Battery:Li_Polymer 7.4V 1900mAh,Recharge Time:10h with power on,3h with power off
Operation Conditions:
Temperature:5ºC~40ºC;Relative humidity:10~95%;Atmosphere pressure:50~106kPa
Storage Conditions:
Temperature:-20ºC~45ºC;Relative humidity:10~95%;Atmosphere pressure:50~106kPa
