(MS-S200A) Hospital CPAP Machine Air Compressor ICU Respirator Pediatric Neonatal Newborn Ventilator

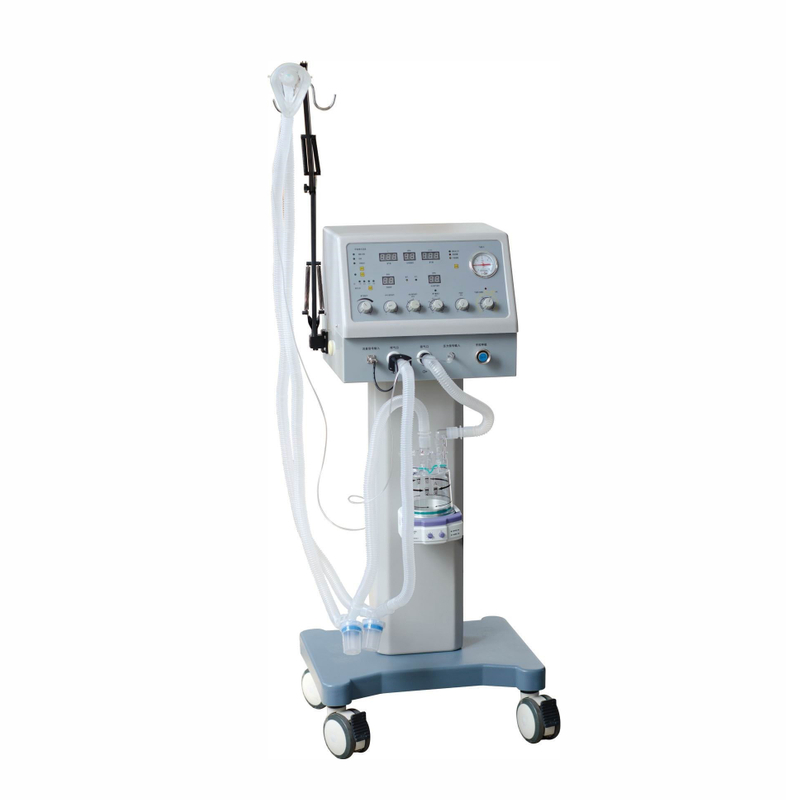

MS-S200A Medical Ventilator

Characters:
Patient Tpye: Adult&Pediatric Patient
Dimension(HxWxD) 120cm x 65cmx52cm
Weight:40kgs
Power:220V/50Hz,110v/60Hz
Backup Power:Between 2 to 4 hours
Display: LED  Display

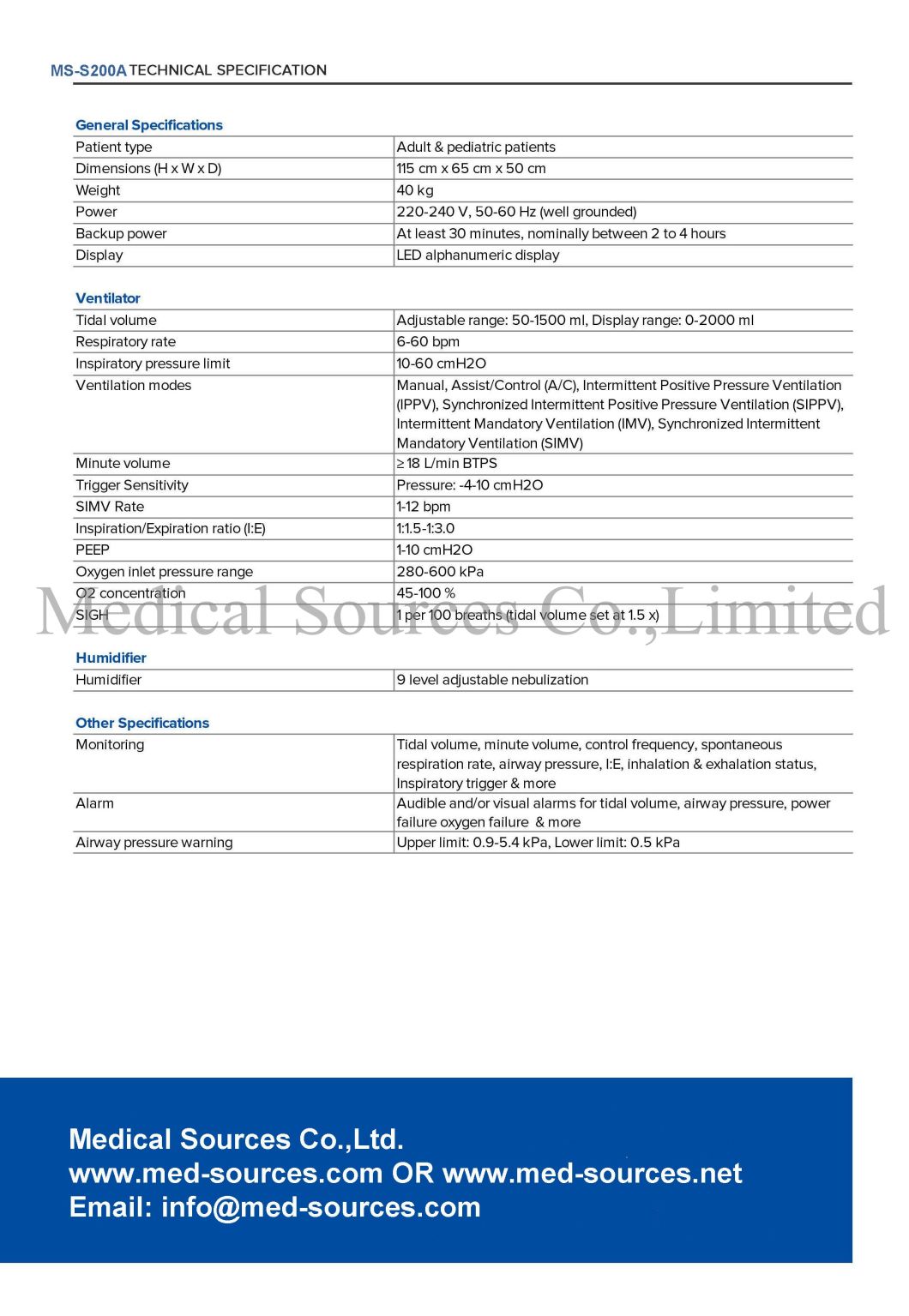

Specifications:
Ventilator:
Tidal Volume:Adjustable Range:50-1500ml,Display Range:0-2000ml
Respiratory Rate:6-60bpm
Inspiratory Pressure Limit:10-60cm H₂O
Ventilation Modes:
Manal,Assist/control(A/C), Intermittent Positive Pressure Ventilation(IPPV), Synchronized Intermittent Positive Pressure Ventilation(SIPPV), Intermittent Mandatory Ventilation(IMV), Synchronized Intermittent Mandatory Ventilation(SIMV)
Minute Volume:≥18L/min BTPS
Trigger Sensitivity: Pressure:-4-10cm H₂O
SIMV Rate:1-12 bpm
Inspiration/Expiration Ratio: 1:1.5-1:3.0
PEEP:1-10cm H₂O
Oxygen Inlet Pressure Range:280-600kPa
O₂ Concentration:45-100%
Sigh:1 per 100 Breaths(Tidal VOLUME Set at 1.5x)

Humidifier:
Humidifier: 9 Level Adjustable Nebulization

Monitoring
Tidal Volume,Minute Volume,Control Frequency,Spontaneous Respiration Rate,Airway Pressure,I:E Inhalation&Exhalation Status,Inspiartory Trigger&More

Alarm
Audilbe/Visual Alarms for Tidal Volume,Airway press,Power Failure Oxygen Failure
Airway pressure Warning:Upper Limit:0.9-5.4kPa,Lower Limite:0.5kPa
